Custom High-Rate LiPo & Lithium Polymer Battery Cells for Drones & RC Models
Semi-Solid State | Up to 380Wh/kg | 1500+ Cycles | 6C Fast Charging | OEM/ODM Deep Customization
Your one-stop solution for custom battery cells. We tailor chemistry, size, and performance (capacity, C-rating) for industrial drone batteries, FPV racing batteries, and RC car batteries to match your design precisely.
Send an Inquiry to Get:
1. Requirement Discussion
Discuss your specific LiPo cell requirements (voltage, capacity, form factor, cycle life, and so on).
2. Tailored Proposal
Receive a tailored proposal and competitive quotation for professional-grade cell solutions.
3. Collaborative Prototyping
Collaborate with our R&D team to initiate prototyping, performance testing, and mass production support.
Power Your Drones with Premium LiPo Cells – Reliability & Performance at the Core.

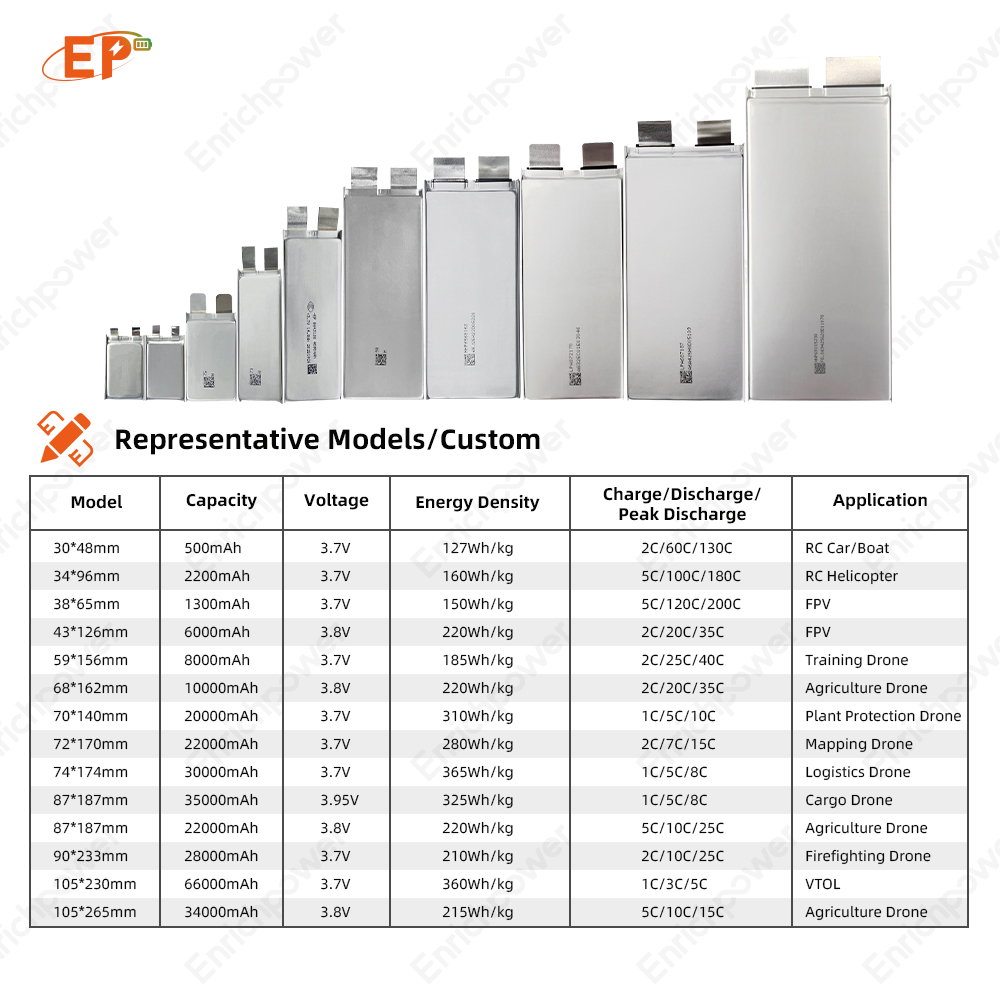

Product Parameter Matrix
We offer a comprehensive battery cell matrix with full customization across chemistry, dimensional specifications, and lipo cell performance (capacity, discharge rate). Below is an overview of select popular series, with deep customization fully supported.
We support unlimited custom possibilities. Inquire for your specific needs!
3.7V Semi-Solid Cell (Max. 380Wh/kg)
High capacity & light weight, suitable for agricultural drone, training, mapping, logistics, and fixed-wing UAVs.
| Voltage |
Capacity |
Size(T*W*L) |
Weight(g±5%) |
Energy Density |
Rate (Charge/Discharge) |
| 3.7V | 9000mah | 10*43*126mm | 120g | 280Wh/kg | 2C/10C/20C |
| 3.7V | 17000mah | 10*59*156mm | 230g | 280Wh/kg | 2C/7C/15C |
| 3.7V | 16000mah | 7.8*72*170mm | 210g | 280Wh/kg | 2C/7C/15C |
| 3.7V | 22000mah | 10*72*170mm | 290g | 280Wh/kg | 2C/7C/15C |
| 3.7V | 27000mah | 9.8*87*187mm | 360g | 280Wh/kg | 2C/5C/15C |
| 3.7V | 30000mah | 10.8*87*187mm | 405g | 320Wh/kg | 2C/5C/15C |
| 3.7V | 25000mah | 6.7*105*230mm | 370g | 320Wh/kg | 2C/10C/20C |
| 3.7V | 40000mah | 10.4*105*230mm | 575g | 320Wh/kg | 2C/7C/15C |
| 3.7V | 10000mah | 9.9*43*126mm | 120g | 320Wh/kg | 1C/7C/10C |
| 3.7V | 19000mah | 10.9*59*156mm | 225g | 320Wh/kg | 1C/5C/10C |
| 3.7V | 20000mah | 10.9*70*140mm | 240g | 320Wh/kg | 1C/5C/10C |
| 3.7V | 20000mah | 8.8*72*170mm | 245g | 350Wh/kg | 1C/5C/10C |
| 3.7V | 25000mah | 10.8*72*170mm | 300g | 350Wh/kg | 1C/5C/10C |
| 3.7V | 32000mah | 10.6*87*187mm | 380g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 35000mah | 11*87*187mm | 410g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 57000mah | 11.8*105*230mm | 670g | 350Wh/kg | 1C/5C/10C |
| 3.7V | 11500mah | 9.8*43*126mm | 125g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 22000mah | 10.9*59*156mm | 235g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 23000mah | 10.9*70*140mm | 250g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 29000mah | 10.9*72*170mm | 315g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 35000mah | 9.8*87*187mm | 380g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 39000mah | 11*87*187mm | 425g | 350Wh/kg | 1C/5C/7C |
| 3.7V | 64000mah | 11.8*105*230mm | 685g | 350Wh/kg | 1C/3C/5C |
| 3.7V | 30000mah | 10.2*74*174mm | 305g | 380Wh/kg | 1C/5C/8C |
| 3.7V | 40000mah | 10.8*87*187mm | 410g | 380Wh/kg | 1C/3C/5C |
| 3.7V | 66000mah | 11.8*105*230mm | 680g | 380Wh/kg | 1C/3C/5C |
3.95V Semi-Solid LiPo Cell (High Voltage, HV)
High payload capacity & long endurance, suitable for agricultural, logistics, surveying and mapping, and firefighting drones.
| Voltage |
Capacity |
Size(T*W*L) |
Weight(g±5%) |
Energy Density |
Rate (Charge/Discharge) |
| 3.95V | 17000mah | 9.5*72*170mm | 250g | 270 Wh/kg | 2C/5C/10C |
| 3.95V | 20000mah | 8.5*87*187mm | 305g | 260 Wh/kg | 2C/5C/10C |
| 3.95V | 25000mah | 10.4*87*187mm | 375g | 265 Wh/kg | 2C/5C/10C |
| 3.95V | 28000mah | 11.3*87*187mm | 410g | 270 Wh/kg | 2C/5C/10C |
| 3.95V | 43000mah | 11.8*105*230mm | 630g | 270 Wh/kg | 1C/3C/5C |
| 3.95V | 8000mah | 8.5*43*126mm | 110g | 290 Wh/kg | 1C/7C/15C |
| 3.95V | 23000mah | 10.9*72*170mm | 310g | 295 Wh/kg | 1C/5C/10C |
| 3.95V | 31000mah | 10.9*87*187mm | 420g | 295 Wh/kg | 1C/5C/10C |
| 3.95V | 50000mah | 11.6*105*230mm | 660g | 300 Wh/kg | 1C/3C/5C |
| 3.95V | 11000mah | 10*43*126mm | 135g | 325 Wh/kg | 1C/7C/15C |
| 3.95V | 26000mah | 11*72*170mm | 325g | 320 Wh/kg | 1C/5C/8C |
| 3.95V | 35000mah | 11*87*187mm | 430g | 325 Wh/kg | 1C/5C/8C |
| 3.95V | 56000mah | 11.6*105*230mm | 675g | 330 Wh/kg | 1C/3C/5C |
High Rate Large Capacity LiPo Cell (6C Fast Charging)
High payload capacity, rapid charging – ideal for agricultural spraying drones, professional drone training.
| Voltage |
Capacity |
Size(T*W*L) |
Weight(g±5%) |
Energy Density |
Rate (Charge/Discharge) |
| 3.7V | 12000mah | 8*72*170mm | 220g | 210Wh/kg | 2C/15C/25C |
| 3.7V | 16000mah | 10.6*72*170mm | 295g | 210Wh/kg | 2C/15C/25C |
| 3.7V | 22000mah | 10.3*87*187mm | 390g | 210Wh/kg | 2C/10C/25C |
| 3.7V | 28000mah | 10.8*90*233mm | 500g | 210Wh/kg | 2C/10C/25C |
| 3.8V | 16000mah | 10.6*72*170mm | 280g | 220Wh/kg | 5C/10C/25C |
| 3.8V | 22000mah | 10.7*87*187mm | 385g | 220Wh/kg | 5C/10C/25C |
| 3.8V | 20000mah | 7.2*105*230mm | 375g | 220Wh/kg | 6C/10C/25C |
| 3.8V | 30000mah | 10.3*105*230mm | 555g | 220Wh/kg | 6C/10C/25C |
| 3.8V | 34000mah | 10.4*105*265mm | 600g | 220Wh/kg | 5C/10C/15C |
| 3.8V | 17000mah | 10*72*170mm | 280g | 230Wh/kg | 2C/10C/25C |
| 3.8V | 22000mah | 9.6*87*187mm | 360g | 230Wh/kg | 2C/10C/25C |
| 3.8V | 28000mah | 11.6*87*187mm | 460g | 230Wh/kg | 2C/10C/25C |
| 3.8V | 19000mah | 10.9*72*170mm | 285g | 260Wh/kg | 3C/10C/20C |
| 3.8V | 25000mah | 10.8*87*187mm | 380g | 260Wh/kg | 3C/10C/20C |
| 3.8V | 30000mah | 9.2*105*230mm | 480g | 260Wh/kg | 5C/10C/20C |
| 3.8V | 36000mah | 10.5*105*230mm | 540g | 260Wh/kg | 3C/10C/20C |
High Rate Racing-Grade FPV LiPo Cell
Suitable for FPV racing drones, drone soccer, and large-format FPV drones (long-endurance & heavy-lift variants).
| Voltage |
Capacity |
Size(T*W*L) |
Weight(g±5%) |
Rate (Charge/Peak Discharge/Discharge) |
| 3.7V | 4000mah | 7*43*126mm | 89g | 2C/35C/70C |
| 3.7V | 5200mah | 8.8*43*126mm | 112g | 2C/35C/70C |
| 3.7V | 6000mah | 9.9*43*126mm | 126g | 2C/35C/70C |
| 3.7V | 7500mah | 7.5*59*156mm | 153g | 2C/25C/40C |
| 3.7V | 8000mah | 7.8*59*156mm | 161g | 2C/25C/40C |
| 3.7V | 9500mah | 9.1*59*156mm | 189g | 2C/25C/40C |
| 3.7V | 10000mah | 9.7*59*156mm | 201g | 2C/25C/40C |
| 3.7V | 8000mah | 8.2*70*140mm | 177g | 2C/35C/70C |
| 3.7V | 10000mah | 7.8*68*162mm | 203g | 2C/25C/40C |
| 3.8V | 4500mah | 6.5*43*126mm | 80g | 2C/20C/35C |
| 3.8V | 6000mah | 8.2*43*126mm | 104g | 2C/20C/35C |
| 3.8V | 8000mah | 10*43*126mm | 126g | 2C/20C/35C |
| 3.8V | 10000mah | 8.2*59*156mm | 172g | 2C/20C/35C |
| 3.8V | 10000mah | 6.8*68*162mm | 173g | 2C/20C/35C |
| 3.7v | 500mah | 4.8*30*48mm | 14.5g | 2C/60C/130C |
| 3.7v | 850mah | 7.6*30*48mm | 22g | 2C/60C/130C |
| 3.7V | 960mah | 7.6*30*48mm | 22g | 2C/60C/130C |
| 3.7v | 1100mah | 9.5*30*48mm | 26.5g | 2C/60C/130C |
| 3.7v | 1300mah | 6.5*38*65mm | 33g | 5C/120C/200C |
| 3.7v | 1500mah | 7.5*38*65mm | 37g | 5C/120C/200C |
| 3.7v | 2200mah | 7.5*34*96mm | 53g | 5C/100C/180C |
| 3.7v | 2500mah | 8.3*34*96mm | 58.5g | 5C/100C/180C |
Product Description
1. Semi-Solid High-Energy Density Cells
Targeted for: Drone batteries requiring maximum flight times.
Features: 380Wh/kg energy density, enhanced safety structure from semi-solid state technology, stable operation under diverse conditions.
2. 6C Ultra-Fast Charging High-Rate Cells
Targeted for: Agricultural spraying drones needing minimized operational downtime.
Features: 6C fast charging capabilities, up to 25C high-rate continuous discharge power, and 1500+ long cycle lifespan.
3. Ultra-High Rate & Small Format Cells
Targeted for: FPV racing drones and agile high-speed RC models.
Features: Massive 200C pulse discharge, ultra-lightweight design for maximum agility, certified globally (UL, CE, UN38.3).
Customizable Options for Your Battery Cell Solutions
- Connector Options: AS150U, Deans, XT30, XT60, XT90, EC3, EC5, QS8-S, QS9L, XT90-S, etc.
- Voltage Options: Nominal & fully-charged voltages available (3.7V, 3.8V, 3.85V, 3.95V, 4.2V, 4.35V).
- Cell Chemistry Options: Select between LCO or NCM cathode materials for optimized energy density and lifecycle balancing.
- Capacity & Configuration Options: Fully customized capacity and pack configuration layout arrangements (e.g., up to 12S/14S/24S or more).
- Branding & Packaging Personalization: High-definition logo printing, bespoke structural packaging, custom labels, and stickers.
Application-Specific Solutions
Heavy-Lift / Surveying Drones
Use our high-energy density cells to solve range anxiety, increase flight duration, and boost operational efficiency.
Agricultural Spraying Drones
Our 6C fast-charging cells enable rapid turnaround times, multiplying daily field coverage and output.
Training Drones
High lifecycle performance drastically reduces unit replacement costs, and cell consistency ensures total safety.
FPV / Racing Drones
Ultra-high-rate capability delivers explosive power bursts for swift maneuvers, flips, and race agility.
Why Choose Our Battery Solutions?
- 20+ Years of Expertise in High-Rate Cell Technology: We are a vertically integrated lithium polymer battery manufacturer. We control the process from custom cell design and BMS R&D to final pack assembly, ensuring superior safety and packing efficiency.
- Full In-House Supply Chain: Our state-of-the-art facility features 60+ patents and a joint laboratory partnership with a leading university. Production uses Class 10,000 clean rooms, 13 automated assembly lines, and ultra-precise cell tolerance controls (≤0.1mm).
- Smart BMS & IoT Integration: Full-stack in-house BMS development from PCB hardware layout to companion APP/OTA software integration. Real-time telemetry monitoring and secure cloud updates are easily customizable.
- High-Volume Deep Customization Capacity: With massive annual production capacities, we assure a steady supply chain. We scale with your growth, facilitating custom configurations from design iteration to automated mass manufacture.
- Globally Proven Track Record: Active deployments across 40+ countries. Especially dominant in demanding agricultural and professional UAV industrial applications, ensuring reliable performance in harsh conditions.

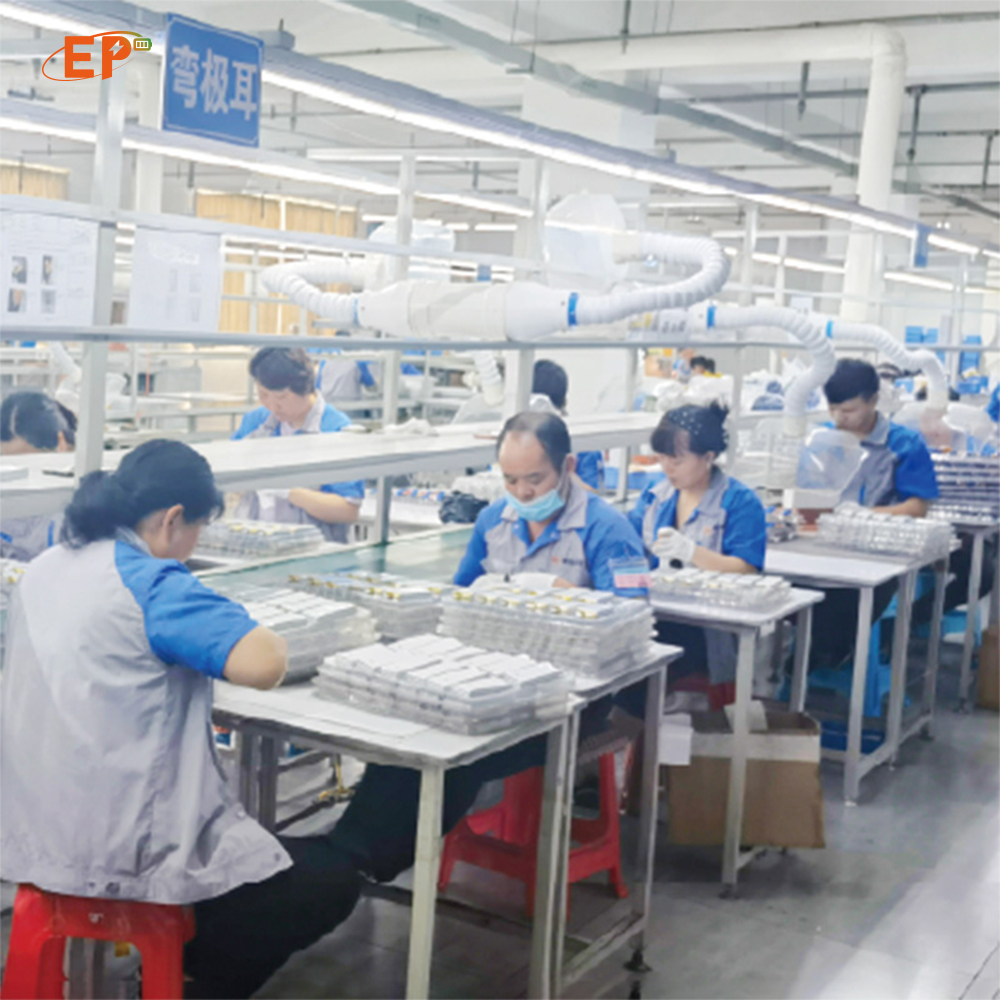

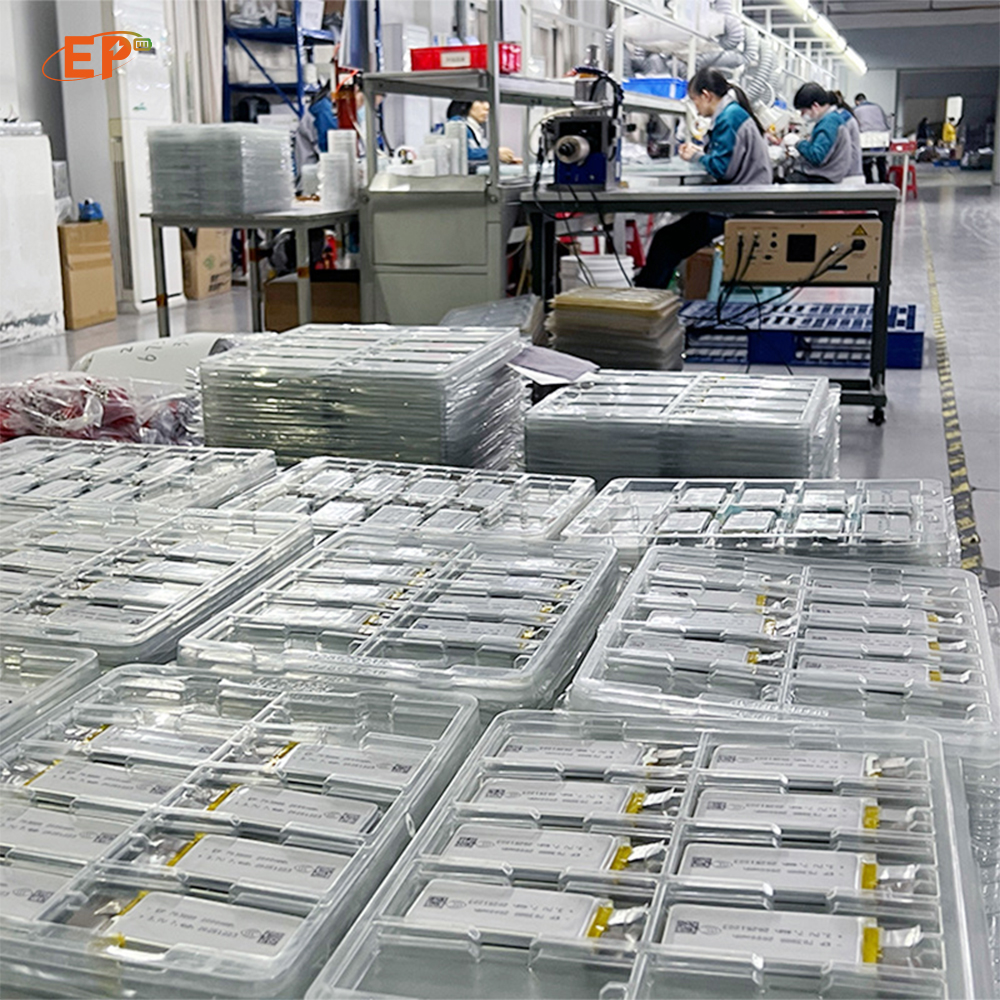

Manufacturing Facility & Advanced Production Lines
Packaging & Logistics Support
- Standard Safe Packaging: Indivdual anti-shock protective foam partitioning box per battery cell, secured inside export-standard heavy-duty shipping cartons.
- Technical Selection Support: A dedicated engineering team is available to assist you with model selection, hardware compatibility reviews, and charging guidelines.
- Certification & Compliance Support: Comprehensive documentation packages provided including UN38.3, MSDS, Air/Sea Safe Transport certificates.
Accepted Logistics & Payment Terms:
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Currencies: USD, EUR, HKD, CNY | Accepted Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Cash.
Technical Specifications Summary
| Brand Options |
OEM / ODM Support Available |
| Product Classification |
Custom Drone LiPo Battery Cell / Lithium Ion Polymer UAV Battery Cell |
| UAV Applications |
Agricultural, Cargo Load, Surveying, Mapping, Training, Transportation VTOL, FPV Battery Cells |
| RC Hobby / Custom Applications |
RC Hobby Pack, Li-ion UAV Battery, High-rate Pouch Cell Battery |
| Active Battery Materials |
NCM, LCO, High-Voltage LCO, 5C-HV-NCM, LiCoO2, LiNiMnCoO2 |
| Connector Interfaces |
XT30, XT60, EC3, EC5, TRX, XT90, XT90-S, Deans, Custom Terminals |
| Capacity Ranges |
5200mAh up to 80Ah+ Custom Range Options Supported |
| Voltage Specifications |
3.7V, 3.8V, 3.85V, 3.95V, 4.2V, 4.35V Cell Voltages |
| Configuration Assembly |
2S, 3S, 4S, 6S, 12S, 14S, 18S, 24S / 1P, 2P, 3P, and Custom Packs |
| Temperature Range |
Charging: 0 to 45℃ | Discharging: -20 to 75℃ |
| Cycle Life Performance |
1500+ Full Cycles (dependent on specific capacity & cell type) |
| Certification Standard |
Certified compliance with BIS, CE, UL, FCC, KC, CCC, ROHS, IEC, PSE, UN38.3, MSDS |
| Warranty Protection |
1-Year Manufacturer Warranty from shipping date |
Frequently Asked Questions
How do you ensure products meet international safety and certification standards?
All our products are developed under an ISO9001-certified quality management system and comply with fundamental global regulations, including UN38.3, MSDS, and transportation certifications. We provide targeted compliance support for key markets: UL, CE, and IEC 62133 for Europe and North America; BIS certification for India; and complete MSDS and transportation documentation packages for global transit.
What is your process for bulk custom orders regarding delivery and cost control?
Our integrated operational system ensures efficiency. For prototyping and small batches, our technical R&D team can present 3 initial solutions within 72 hours. For mass production, our main manufacturing hub, equipped with 13 automated lines and an annual capacity of 15GWh, ensures stable supply and scale economics, offering highly competitive pricing structures based on order volume.
Do you offer full customization from the cell level to the complete battery pack?
Yes, we provide end-to-end customization covering capacity (10Ah-84Ah), precise mechanical dimensions (±0.5mm tolerance), discharge rates (up to 400A continuous), and BMS software/hardware matching. Our engineering team delivers custom tailored proposals quickly upon requirements submission, significantly reducing development cycles.
How does your production environment guarantee battery safety and longevity?
We operate ISO 7 (Class 10,000) certified clean rooms that meet automotive-grade manufacturing standards. Our advanced environmental controls maintain temperature fluctuations within ±1°C and humidity ≤2% RH. For critical electrolyte filling processes, we achieve a dew point as low as -70°C, ensuring exceptional cell consistency and long-term reliability.
What is your after-sales service and support structure?
We provide full-chain order tracking and a dedicated rapid-response support protocol. In the event of any technical query or quality issue, we commit to providing diagnostic support within 48 hours and an actionable solution plan within 72 hours. Users also have access to 24/7 technical assistance from our expert team.
What models of drone connectors and configurations do you support?
We support all industry-standard connectors including XT30, XT60, XT90, XT90-S, AS150U, Deans, EC3, EC5, QS8-S, QS9L, and more. Batteries can be configured in any arrangement from 2S up to 24S series, with custom parallel wiring options to perfectly match your aircraft's payload power requirements.
