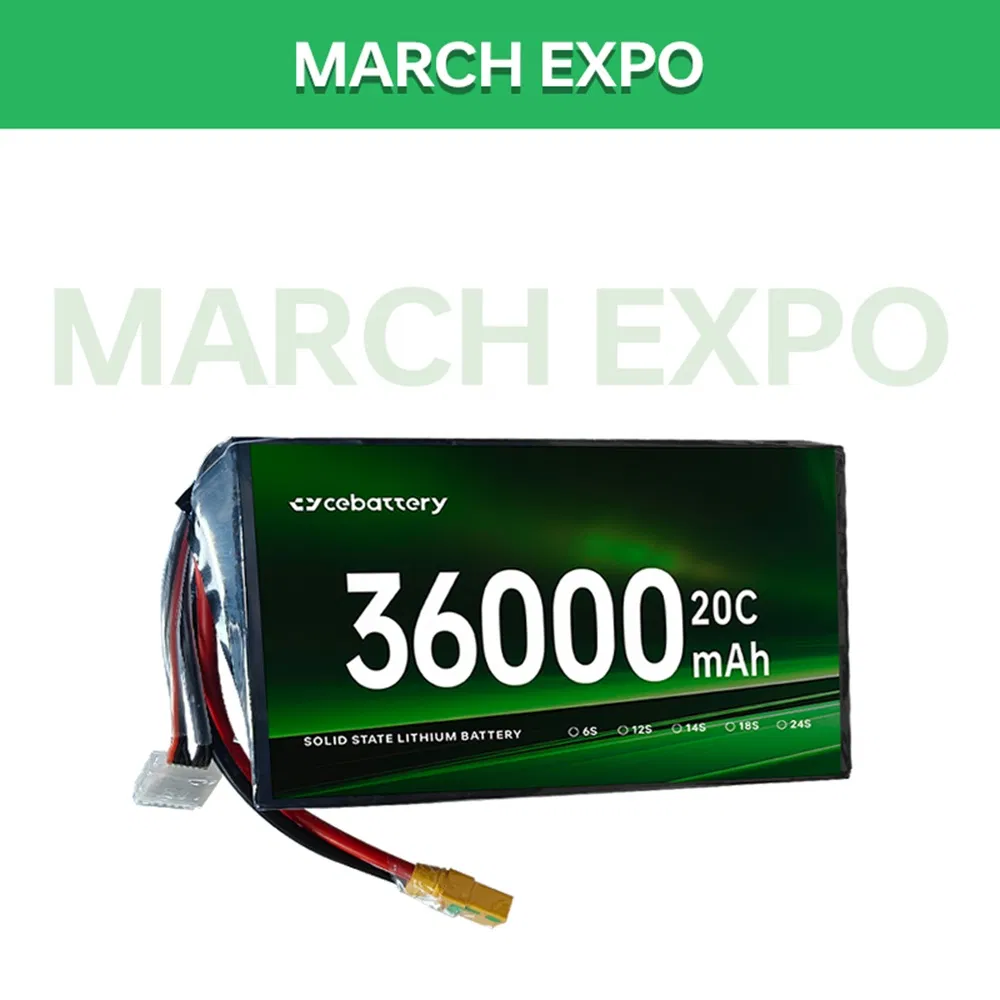

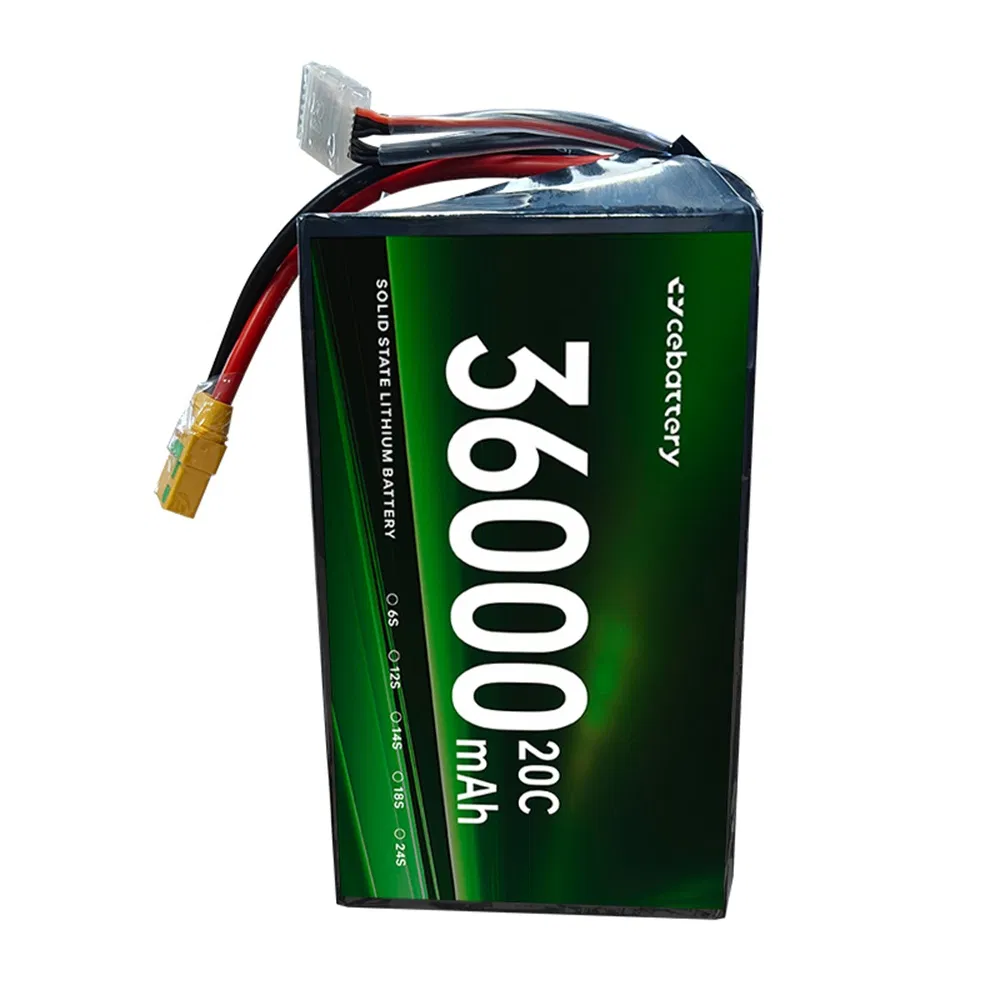

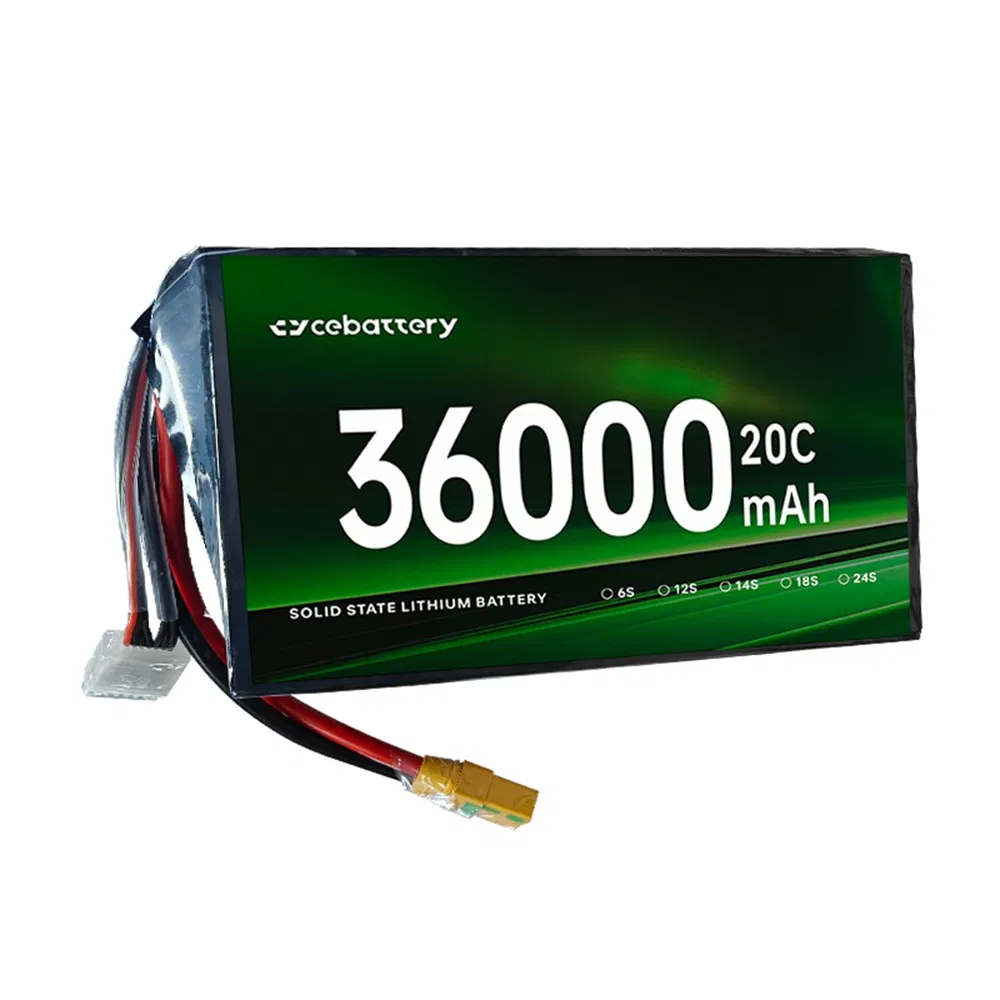

-40°C Extreme Cold Resistant 36000mAh Solid State 20c 12s/14s/18s/24s Drone Lithium Ion Battery Pack for Surveying RC

Still deciding? Get samples of $ !
Order Sample

Product Description

  • Overview
  • Product Description
  • Specification
  • Certifications
  • Packaging & Shipping
  • FAQ

Basic Info

Model NO. 20C-36000mAh-01
Rechargeable Yes
Size Medium
Application Drone
Max Load Quantity (Cells) 24
Cycle Life 500 Cycles
Operating Temperature (℃) -40 to 70
Cathode Materials Linimncoo2
Battery Type Solid State
Dimension (L*W*H) 220*138*125mm/12s
Weight 7.6kg/12s
Nominal Capacity 36000mAh
Discharge Rate 20c
Nominal Voltage 3.95V/1s 47.4V/12s 55.3V/14s 71.1V/18s 94.8V/24s
Full Voltage 4.45V/1s 53.4V/12s 62.3V/14s 80.1V/18s 106.8V/24s
Energy Density 224wh/Kg
Power 3412wh
Discharge Current 360A
Transport Package Carton Packaging
Trademark custom label
Origin China
Production Capacity 60,000 PCS/Month

Packaging & Delivery

Package Size 25.00cm * 15.00cm * 15.00cm
Package Gross Weight 9.000kg
Lead Time 7 days (1 - 5 Pieces)
10 days (6 - 50 Pieces)
40 days (51 - 1000 Pieces)
To be negotiated ( > 1000 Pieces)

Product Description

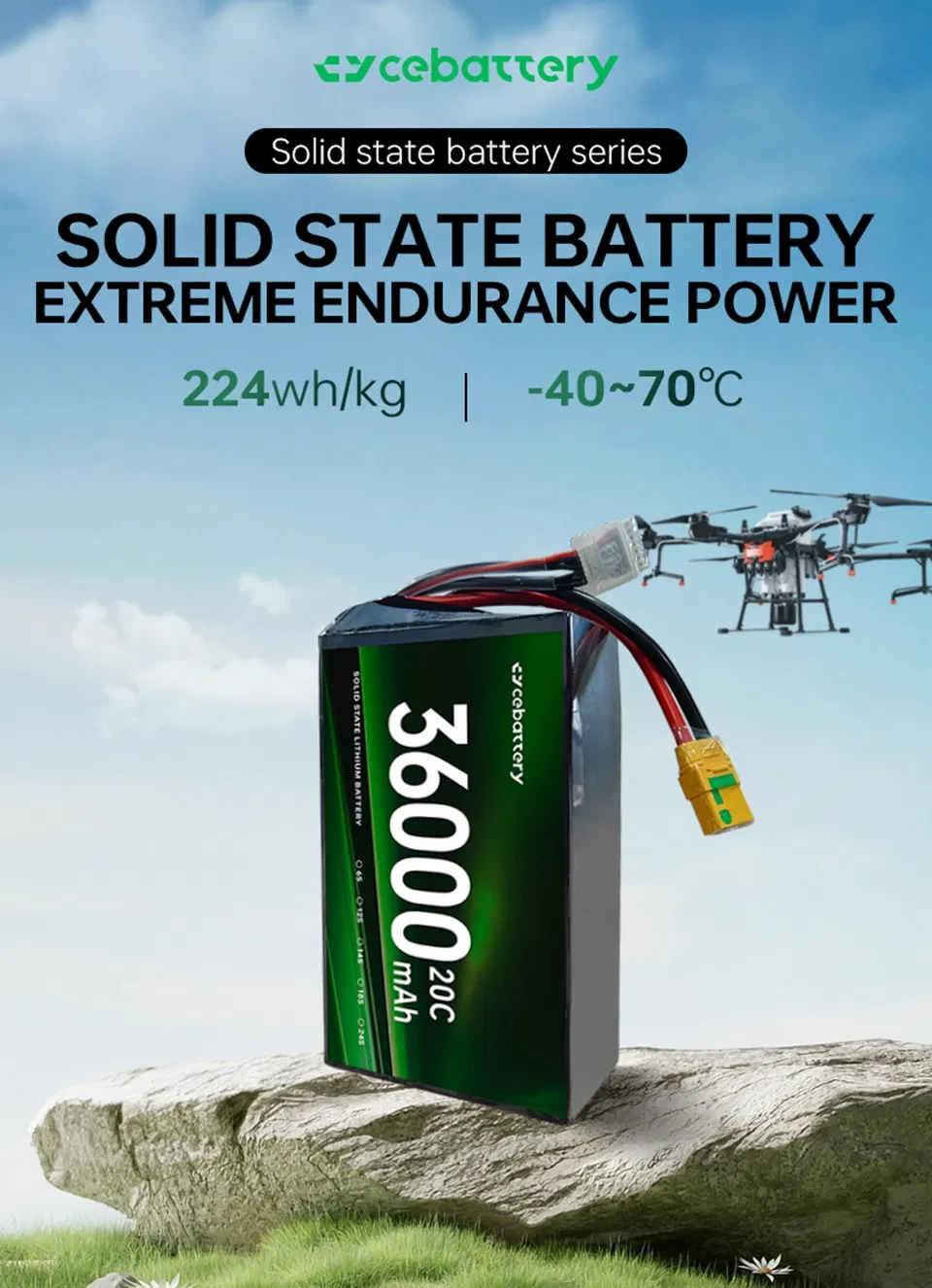

Extreme Cold Resistant Battery

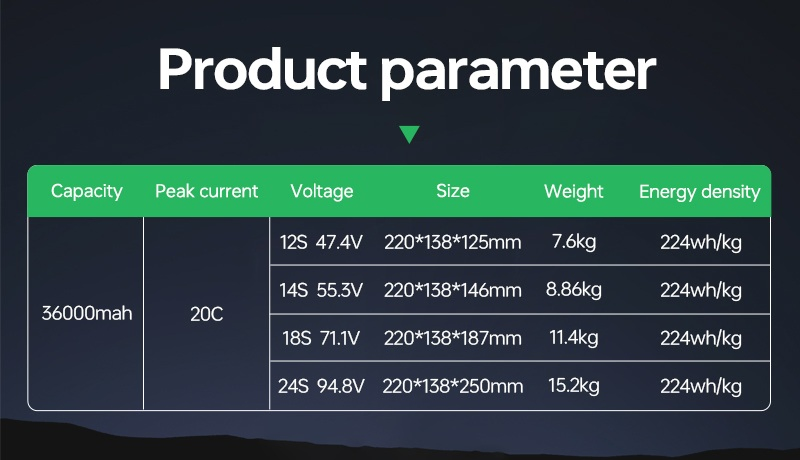

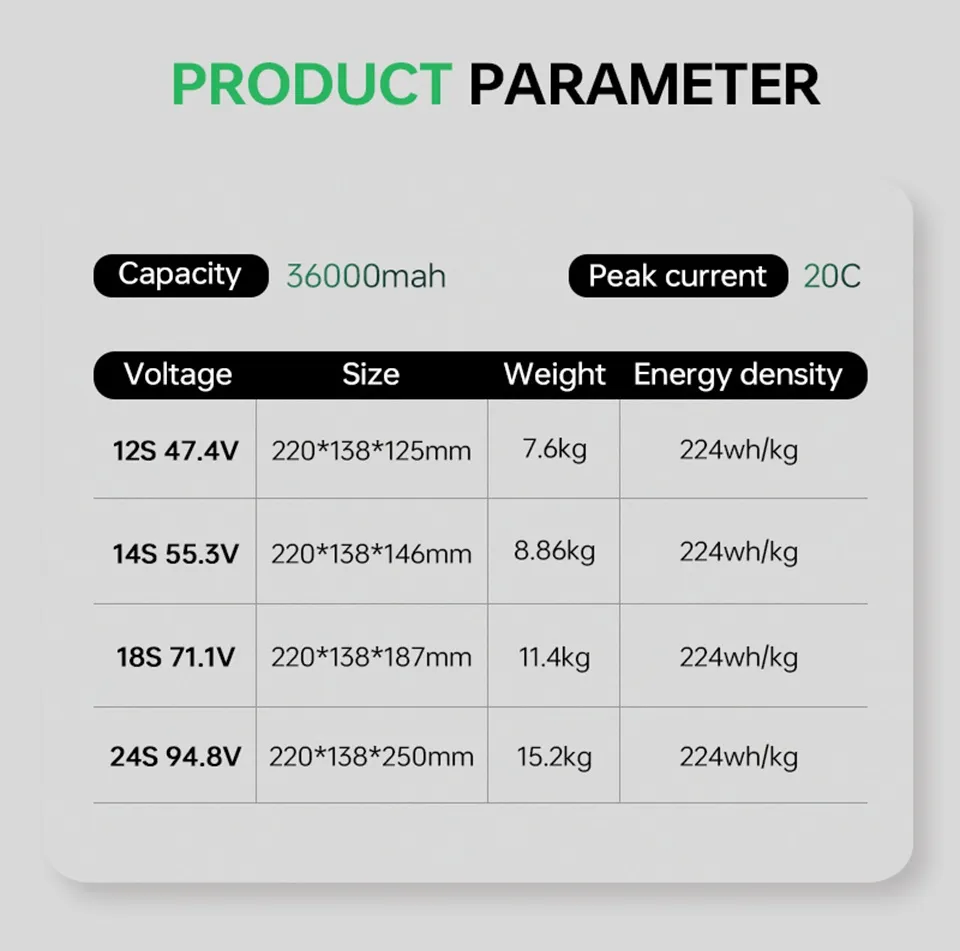

Solid State Battery Pack Specifications

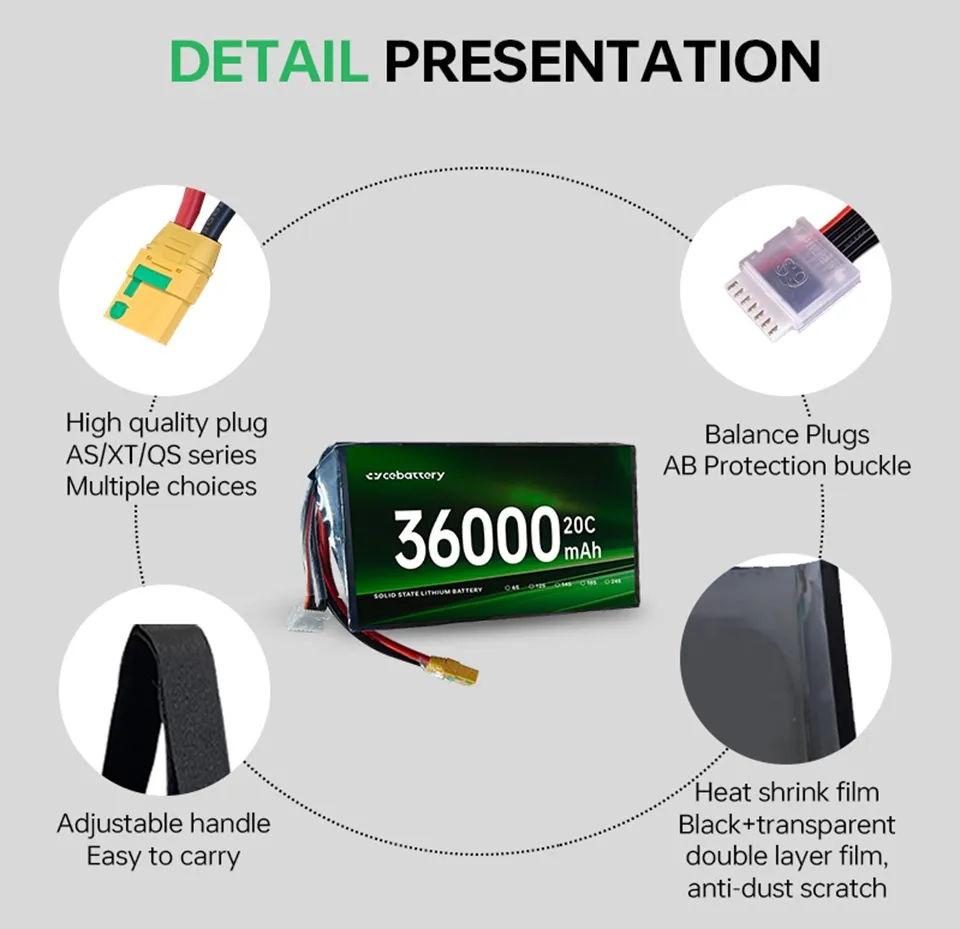

Drone Battery Application Details

Specification

Certification ISO 9001, CE, UL, ROHS, FCC, MSDS certification
Discharge Plugs Options available upon request.

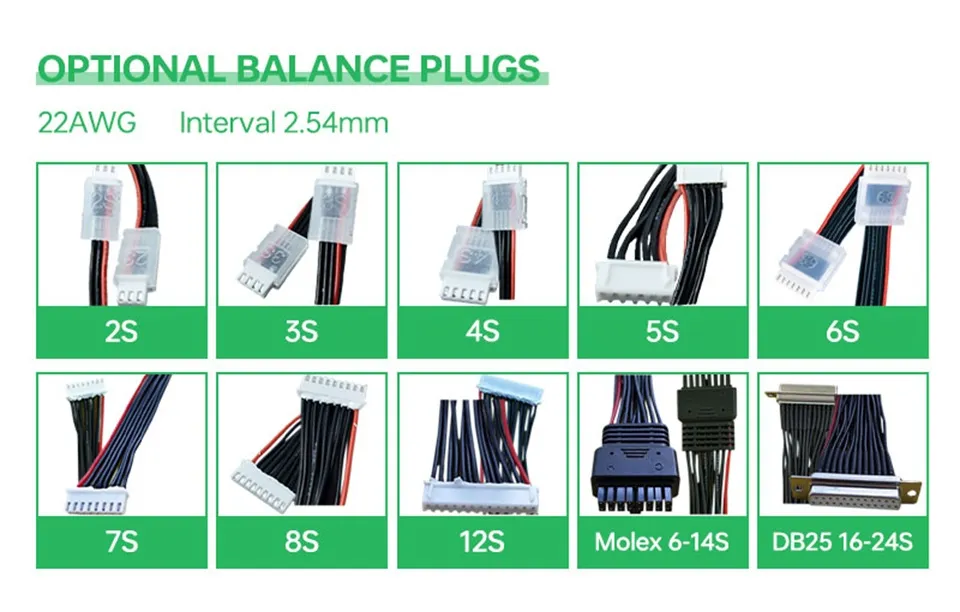

Balancing Plugs Options available upon request.
Warranty 6 months - 1 year
MOQ 1 pcs
OEM/ODM Support
Applicable Products 3D Aerobatic Airplanes, Helicopters (Indoor & Outdoor), Micro/Park Flyers, Fixed-Wing Aircraft, Multi-Rotor Drones
Advantages of Solid-State Drone Batteries

Enhanced Safety

Solid electrolytes are non-flammable and non-volatile, effectively reducing the risks of leakage, thermal runaway, fire, or explosion.

High Energy Density

Offers 15-20% longer range for the same volume/weight.

Longer Lifespan

Supports ≥1000 charge cycles.

Fast Charging

Enables higher charging currents for significantly reduced times.

Wide Operating Temperature

Functions stably from -40°C to 60°C.

Design Flexibility

Can be molded into flexible or custom shapes for easy integration into drones, robots, RC aircraft, ships, and RC cars.

Solid State Battery Features

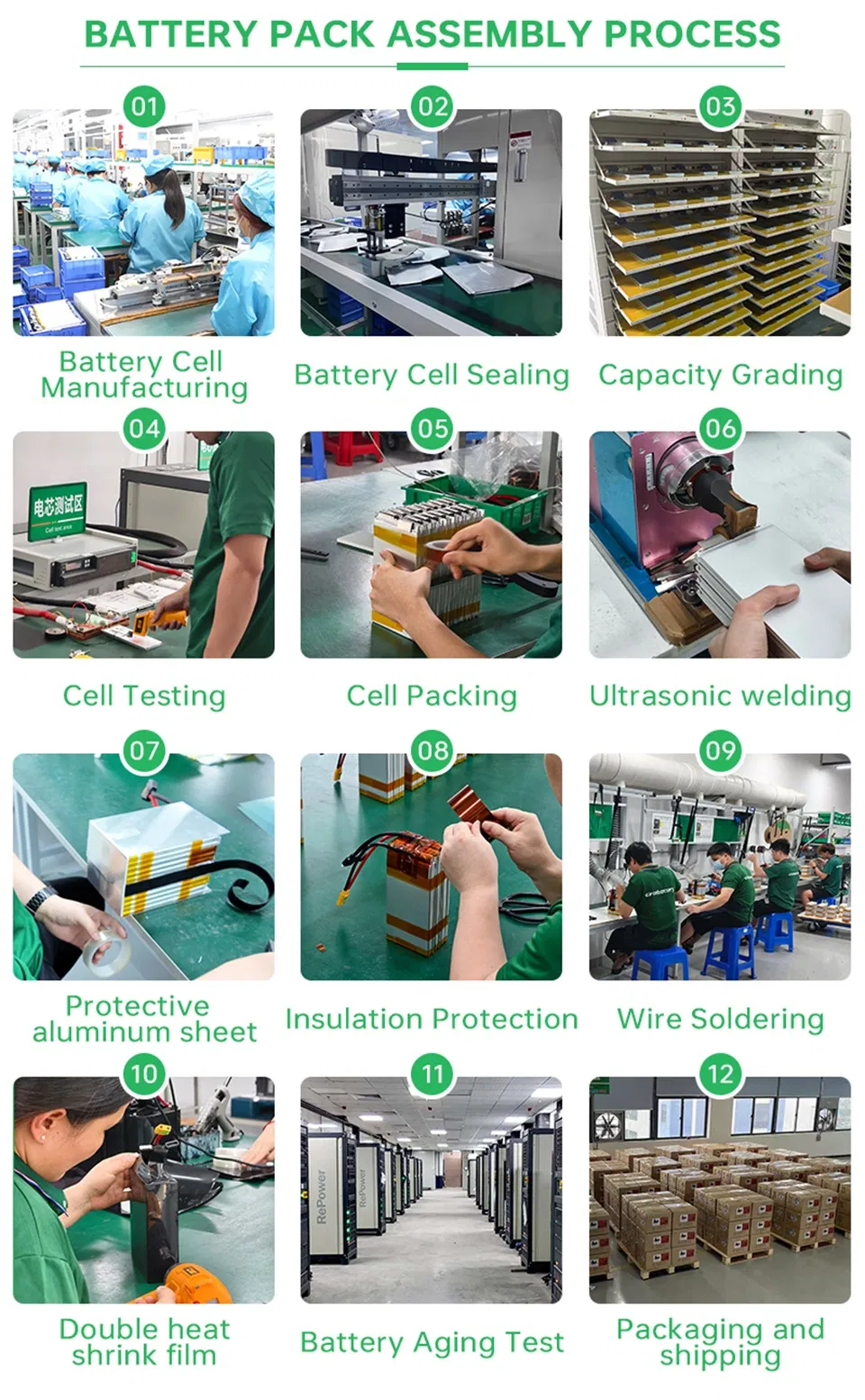

Battery Cells Assembly
Battery Performance Graph
Thermal Testing
Quality Standard Control

Certifications

Certificate Standard Part 1
Certificate Standard Part 2

Packaging & Shipping

Safety Box Packing
Protective Foam Inserts
Outer Carton Packing
Logistic Transportation and Freight Options

Frequently Asked Questions

Q: What certifications and warranties do your batteries have?

A: Our batteries comply with international safety standards such as CE and UL, and undergo rigorous quality inspections. All batteries come with a warranty period, which varies by model.

Q: Do you provide technical support and after-sales service?

A: Yes, we offer comprehensive installation guidance, usage training, and have a dedicated support team to assist you.

Q: Can you provide customized battery solutions?

A: Yes, we offer tailored customized battery solutions based on your specific requirements and device configurations.

Q: Can I place a sample order?

A: Yes, we welcome sample orders to test and verify the overall quality. Customization options are also available for samples.

Q: What payment methods are accepted?

A: We accept Visa, Mastercard, TT, PayPal, Apple Pay, Google Pay, Pix, Oxxo, Billie, and various online bank transfers.

Q: What is the typical lead time?

A: Normally it takes 3-7 days for sample orders and 1-3 weeks for mass orders, depending on the order volume and product specifications.
