The core component of the battery is composed of a positive electrode piece and a negative electrode piece. Therefore, the attachment materials of the positive and negative electrode pieces directly affect the performance of the battery. Understand the specific structure of the battery, and then understand the composition and function of the positive electrode piece and the negative electrode piece.
The cathode sheet is composed of: foamed nickel (conductor) and cathode chemical raw materials. The negative electrode sheet is composed of: steel strip and negative electrode chemical raw materials. Simply put, the chemical raw material is tightly connected with the foamed nickel (steel strip) by pulping, and the positive electrode sheet (negative electrode sheet) is formed.

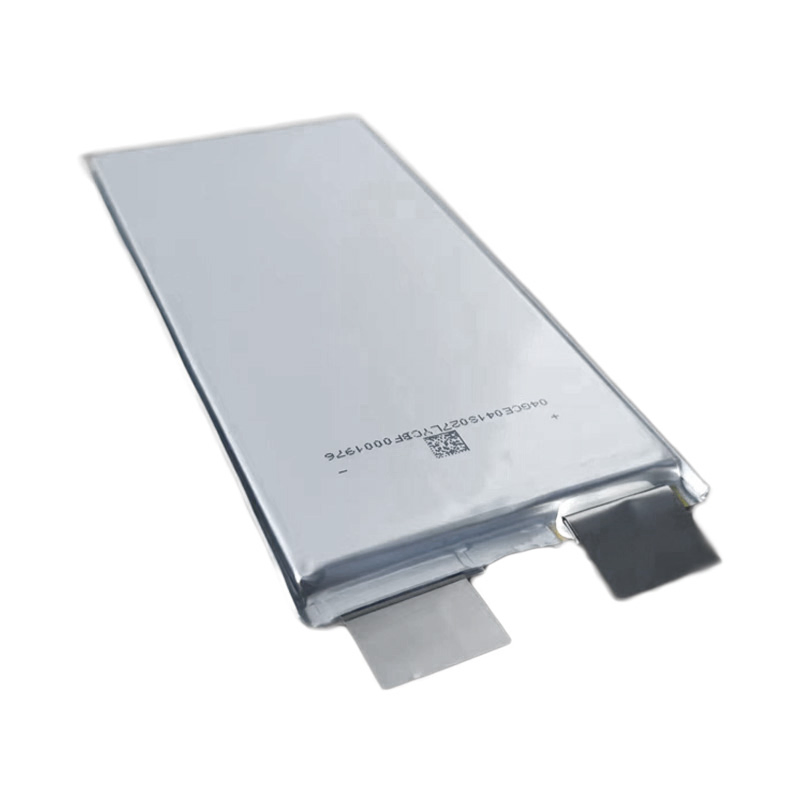

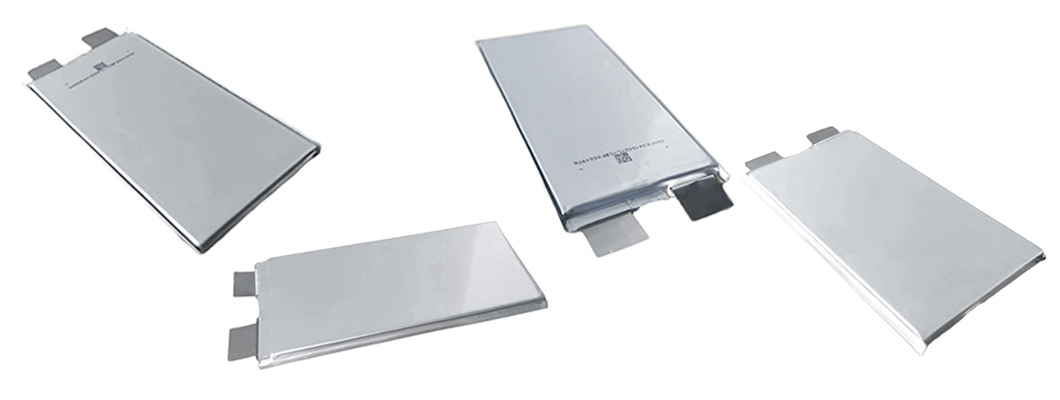

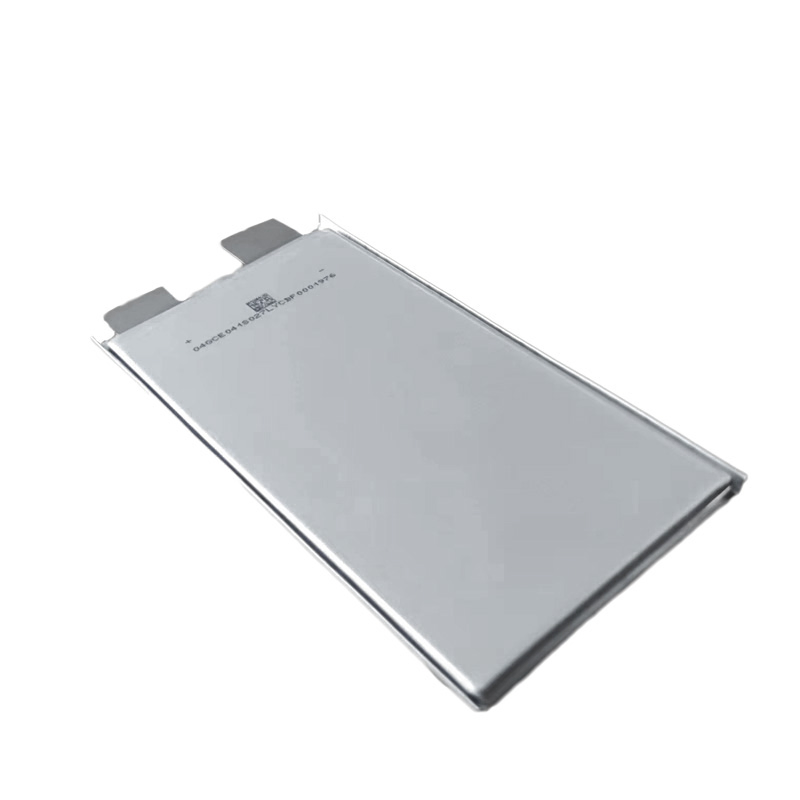

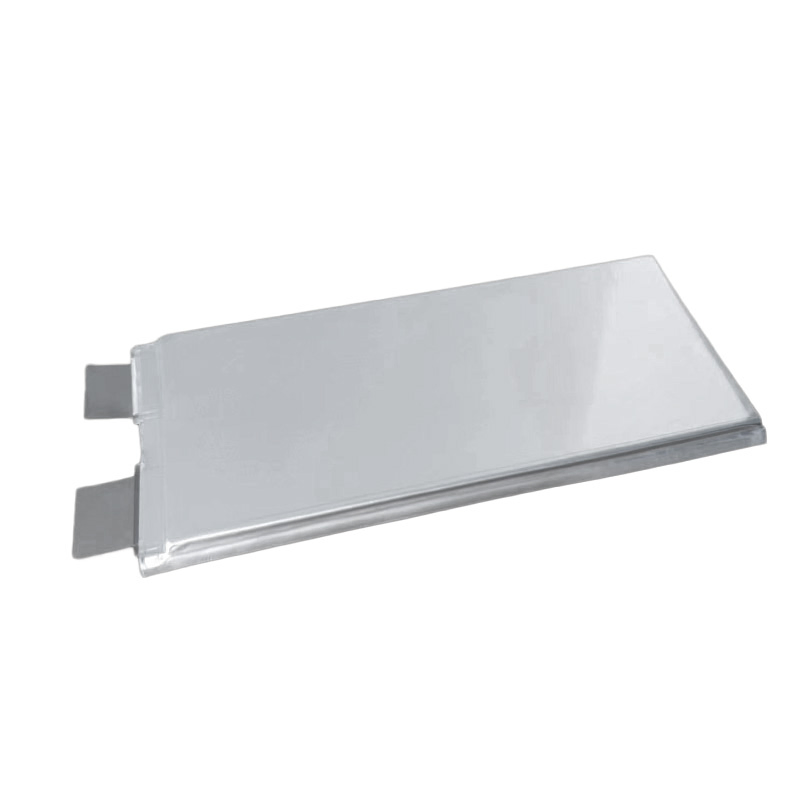

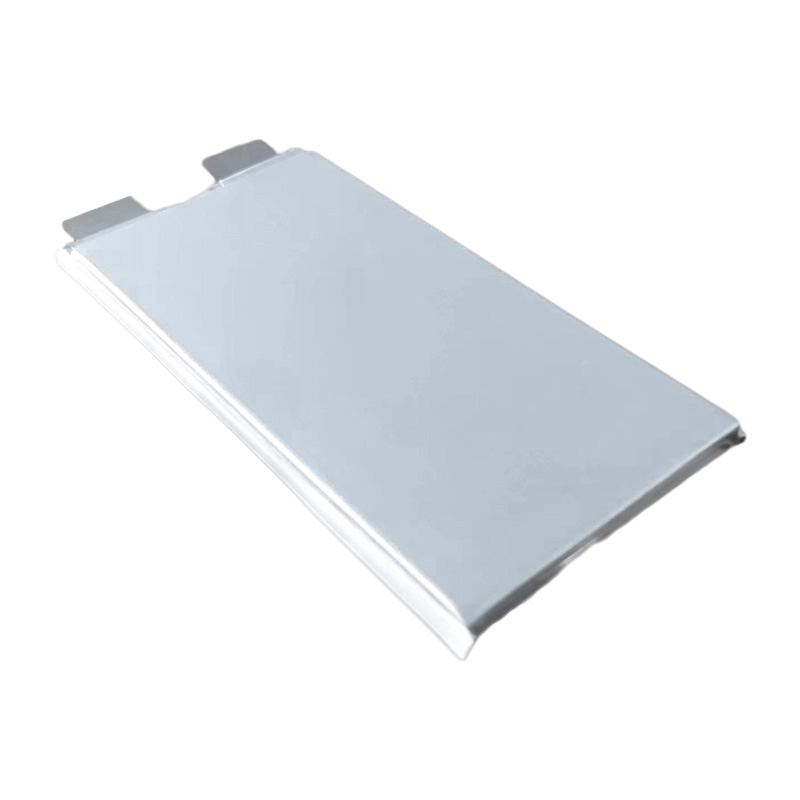

| Model | PL9887187-27Ah |
| Nominal Capacity | ≥27Ah |
| Nominal Voltage | 3.7V |
| Working Voltage | 4.2-2.75V |
| Energy Density | 270wh/kg |
| Thickness | 9.8±0.3mm |
| Width | 87±1mm |
| Length | 187±1mm |
| Weight | 363±5g |
| Maximum continuous discharge current | 135A |
| Maximum continuous charging current | 54A |
The UAV battery significantly improves the endurance of products, gaining reliability in UAVs, unmanned aerial vehicles, robots, and specialized fields. Customization is available for combination methods (such as 6S, 7S, 12S, 13S, 14S), outlet positions, plug models, and logos based on different needs. A higher energy density battery cell (320wh/kg) is designed to resolve battery life anxiety.
