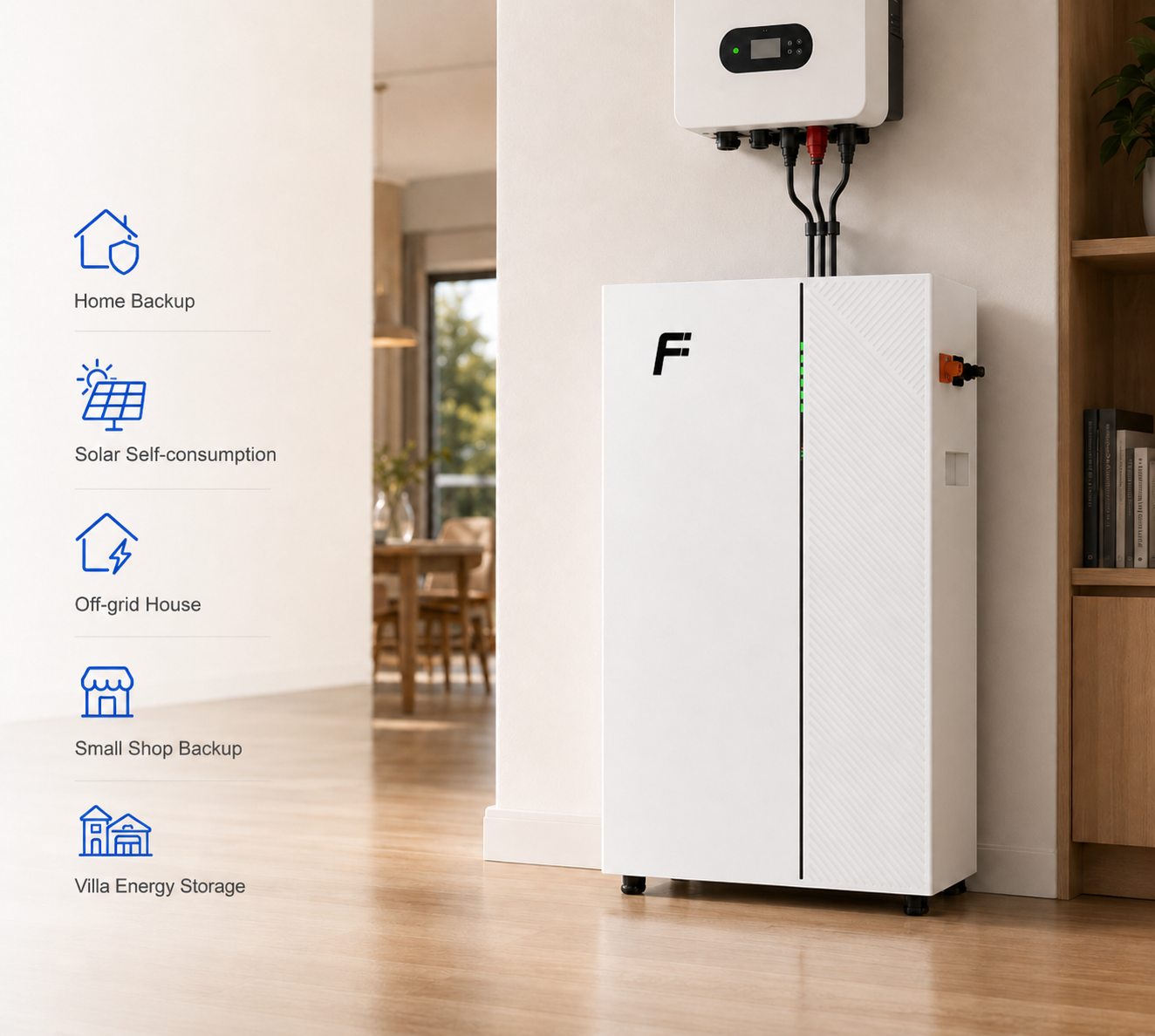

Application Scenarios
Main Advantages

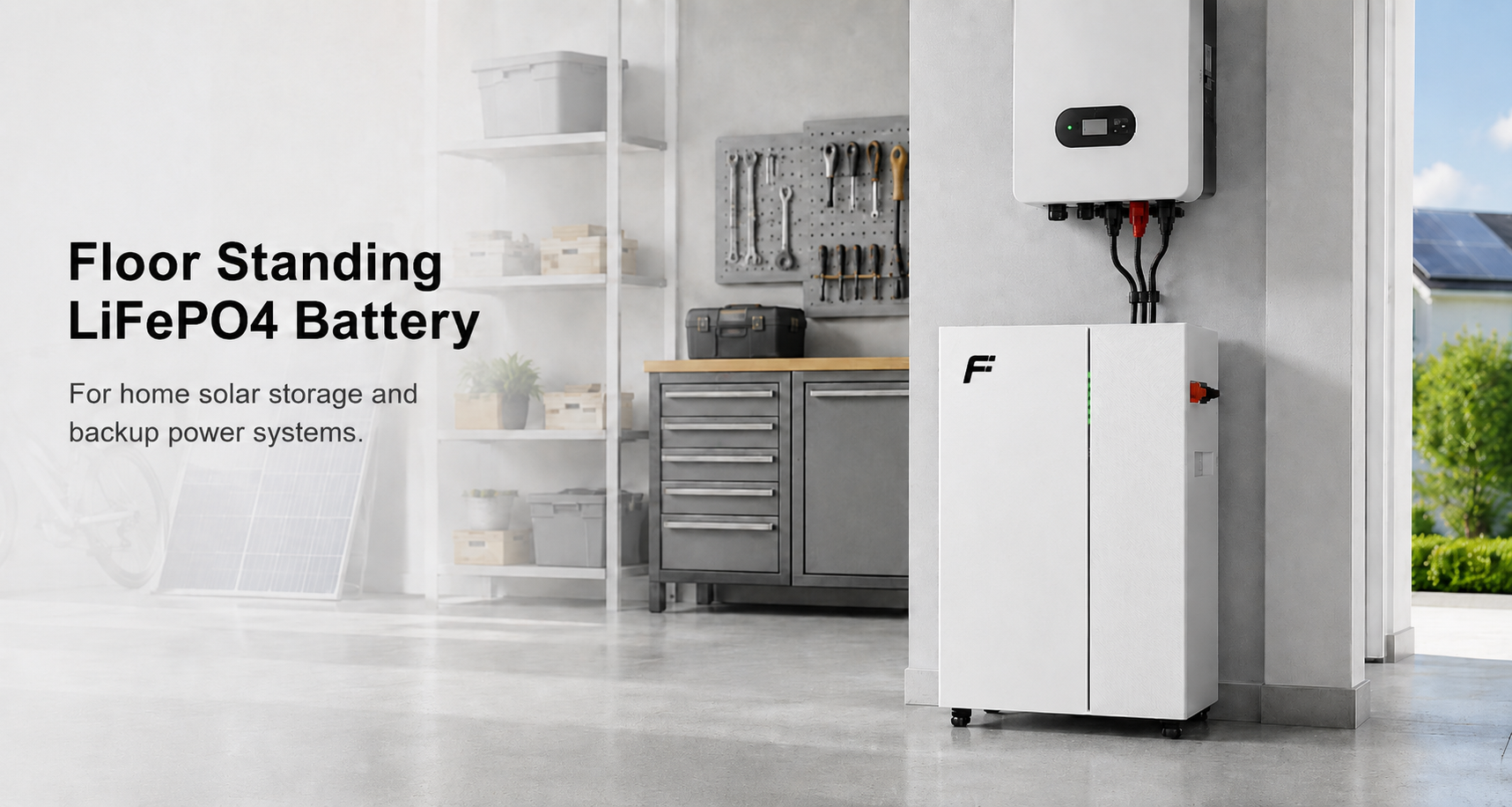

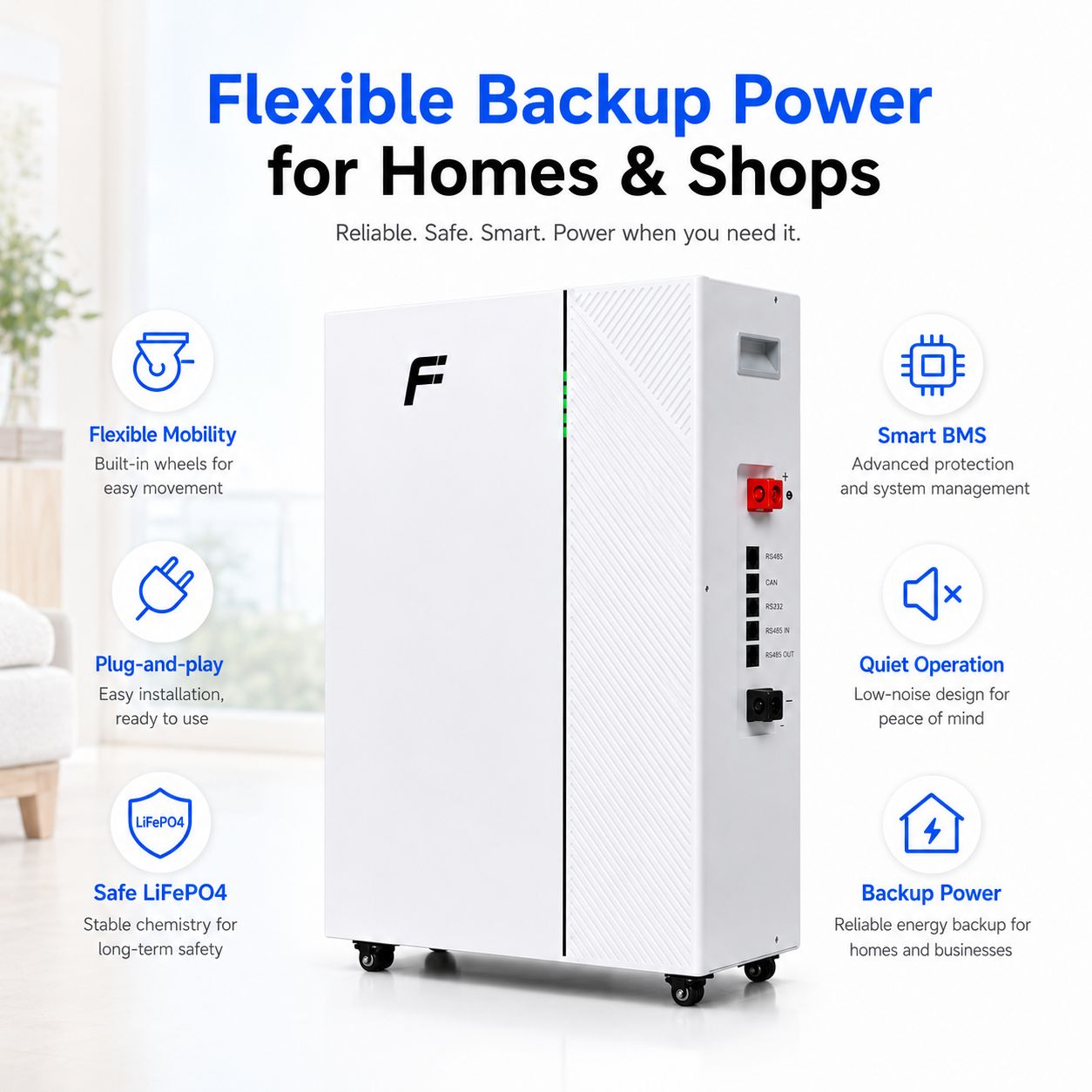

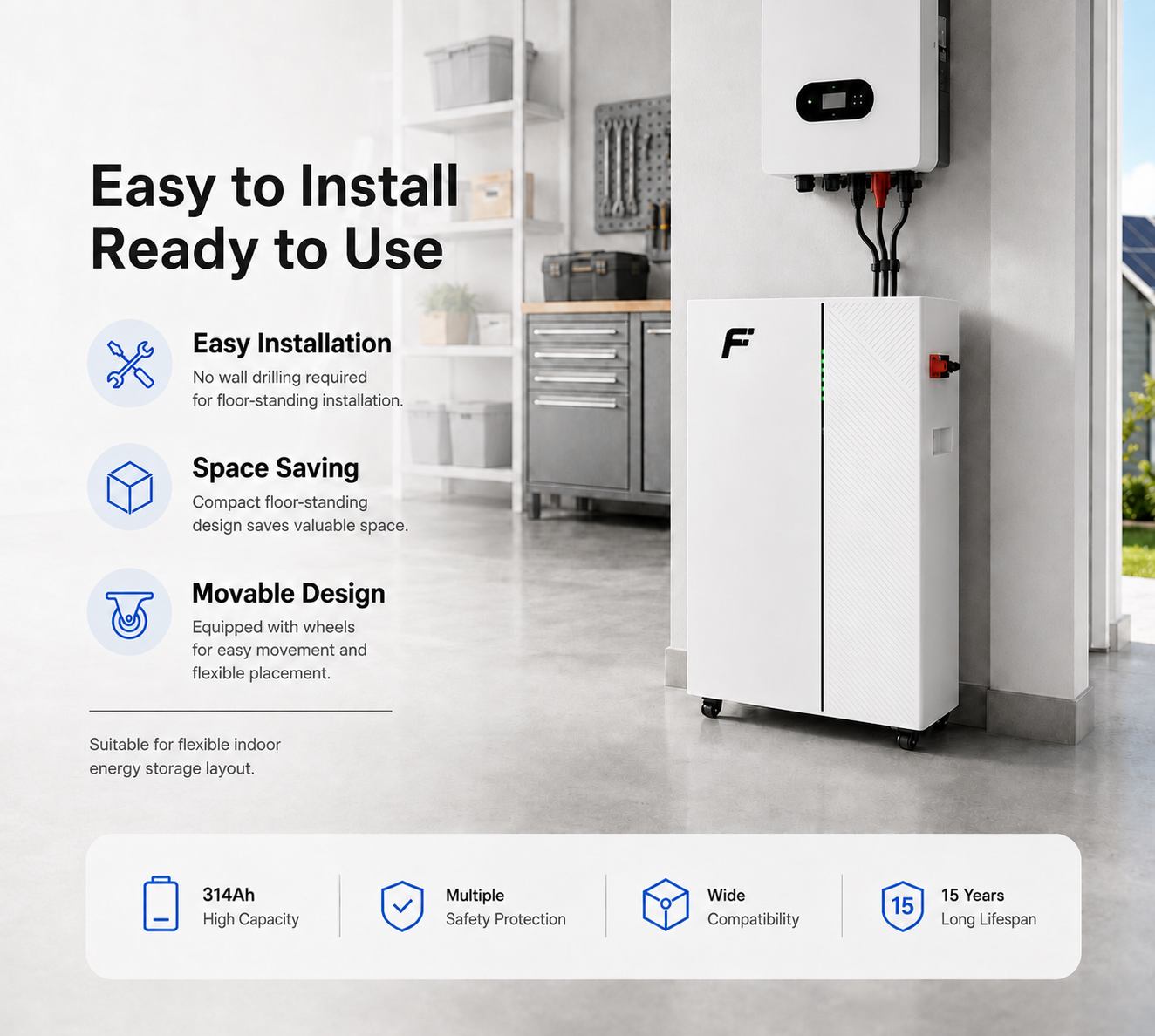

Build a smarter and more stable home energy system with our floor-standing battery solution.

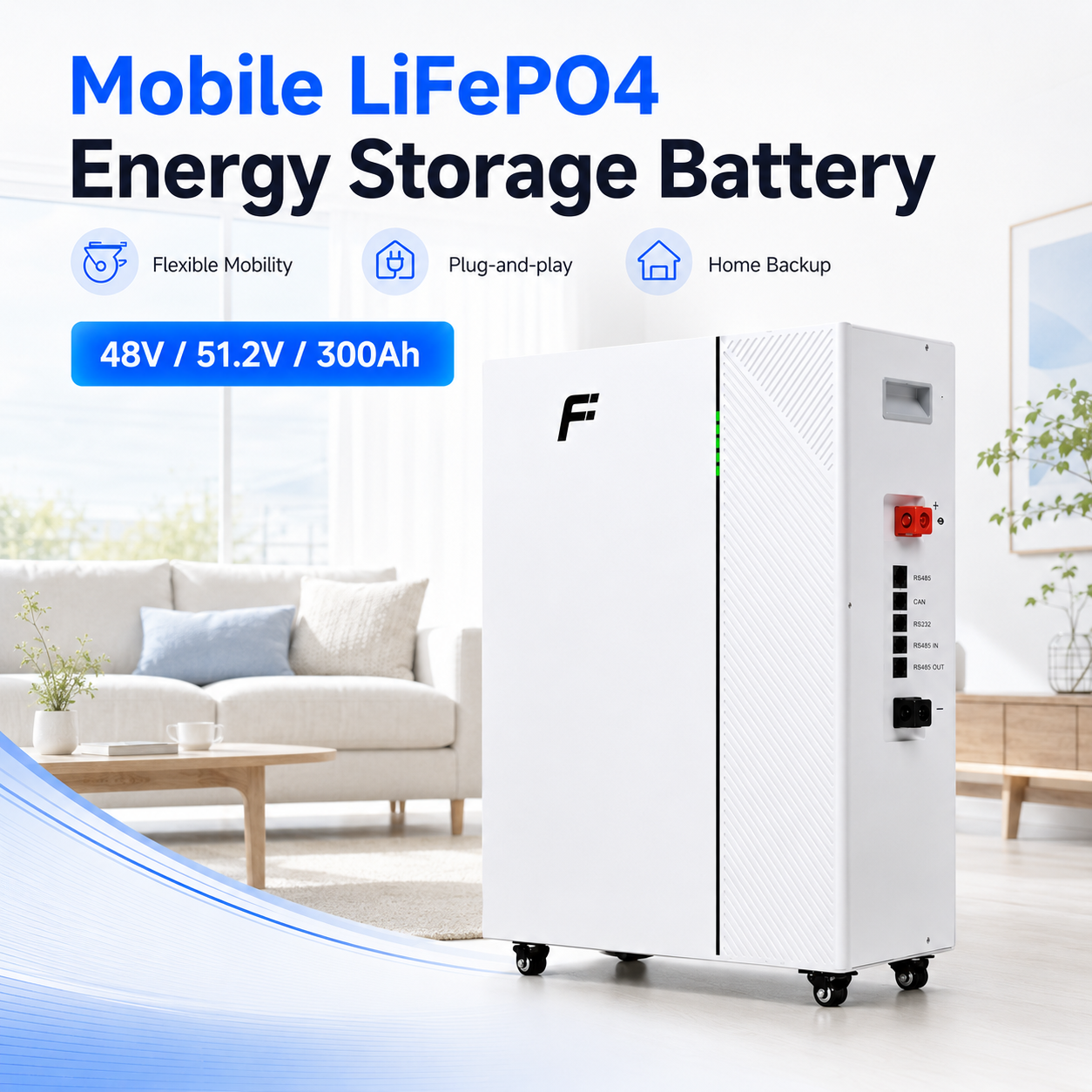

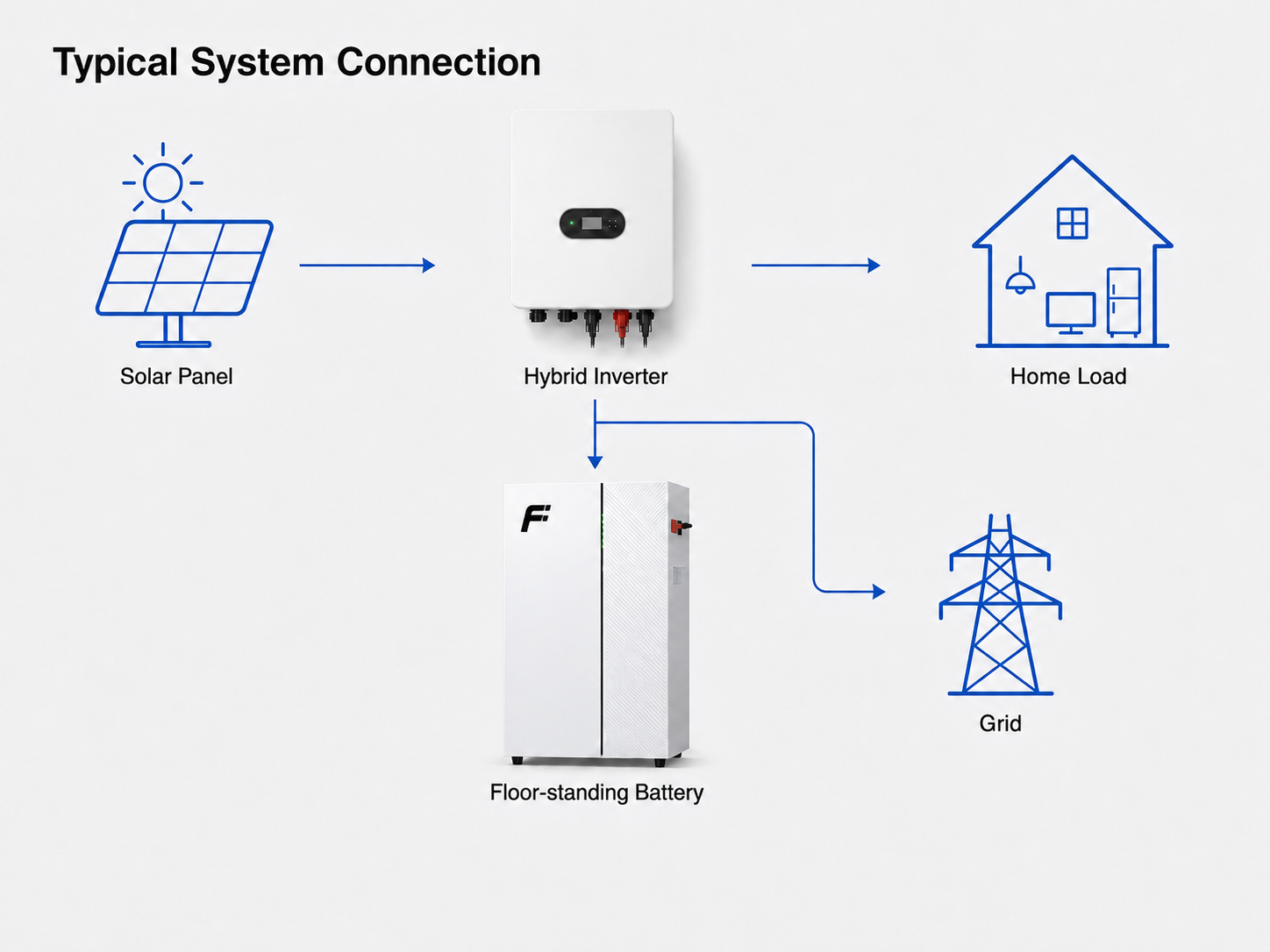

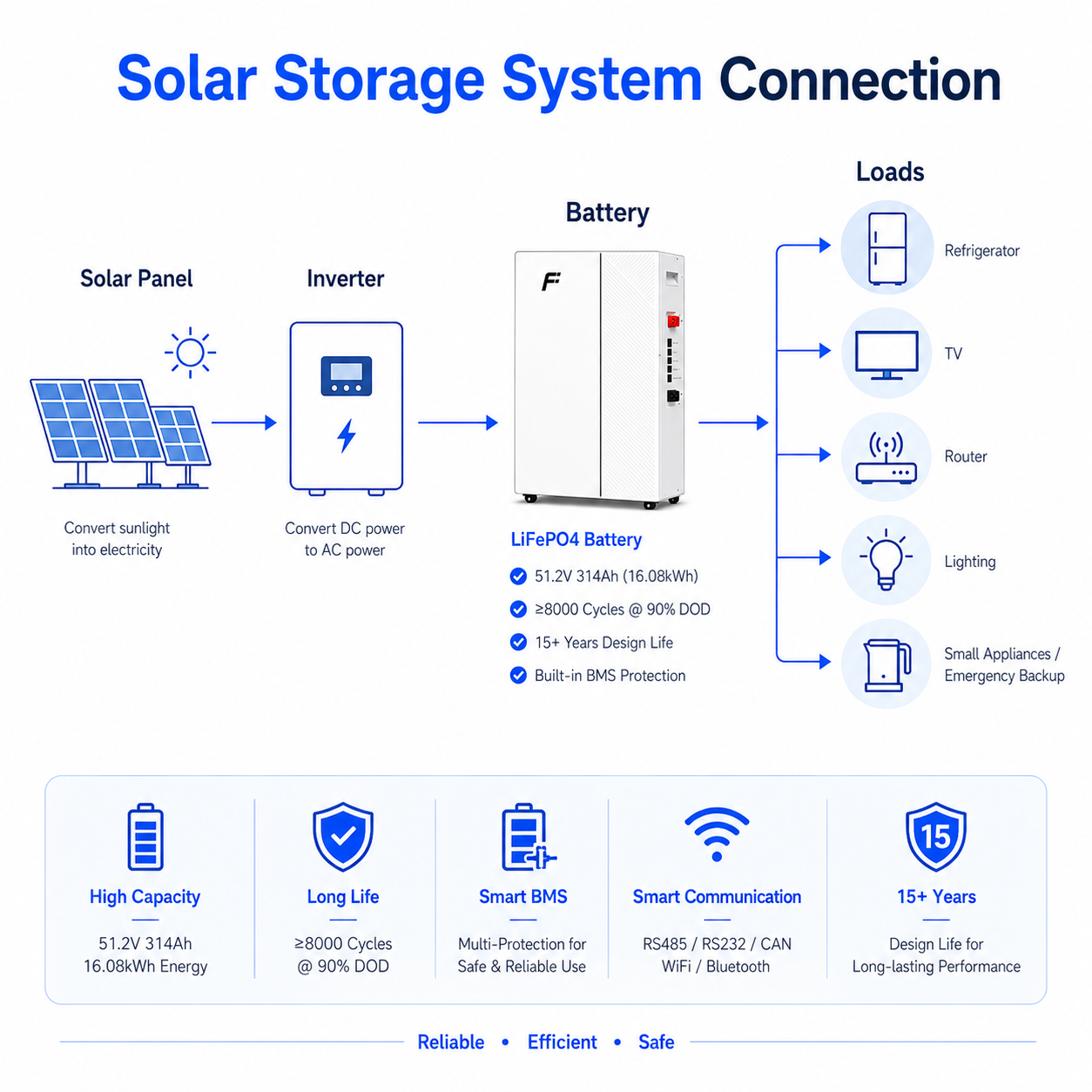

Our floor-standing/Wheel-based battery works seamlessly with solar panels, hybrid inverters, home loads and the grid, helping users build a reliable and efficient household energy storage system.

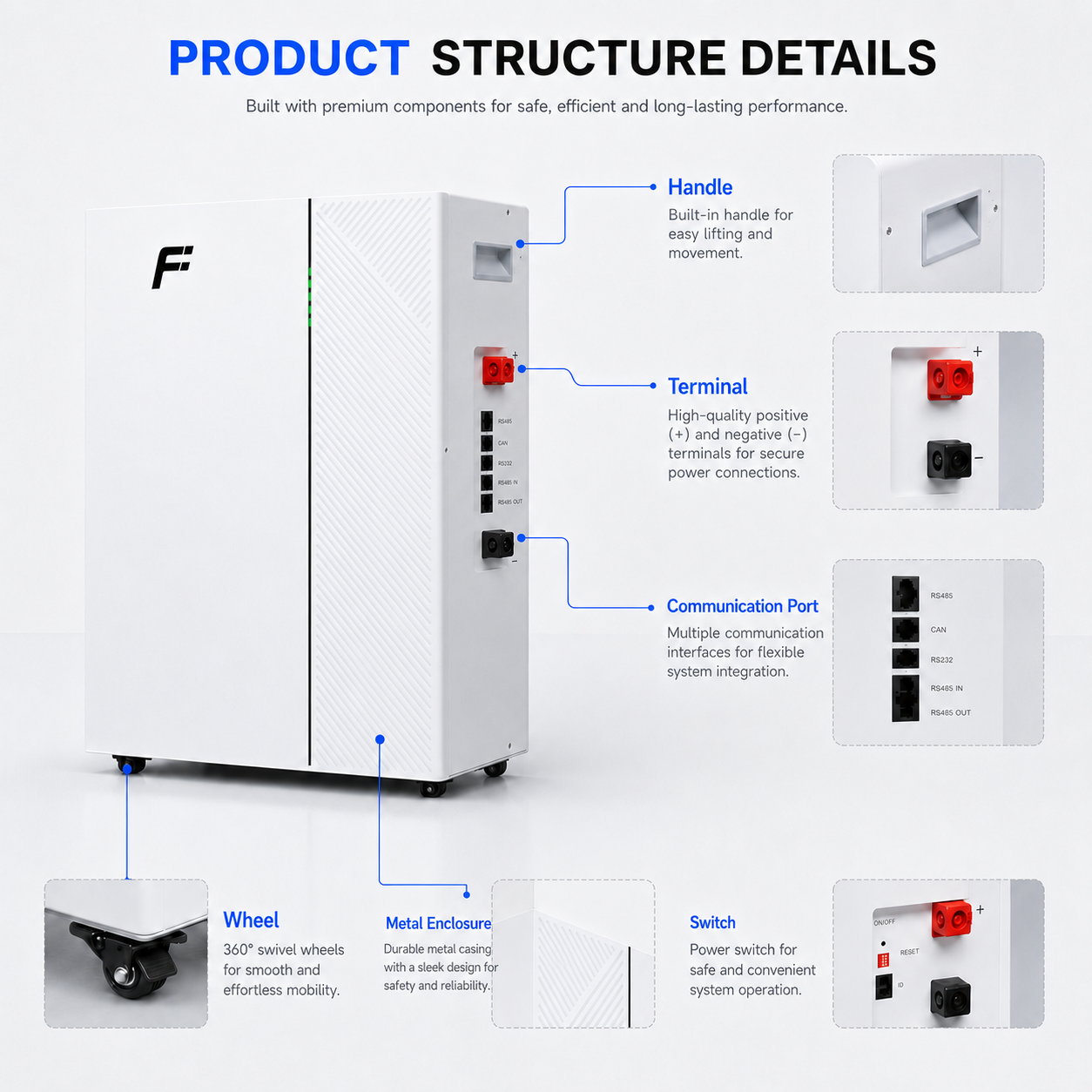

Product Features
To provide a faster quotation and a more suitable energy storage solution, please share your key project information with us.
Information We Need:
Our team will help match the right battery configuration based on your inverter model, application scenario, required capacity and destination market.

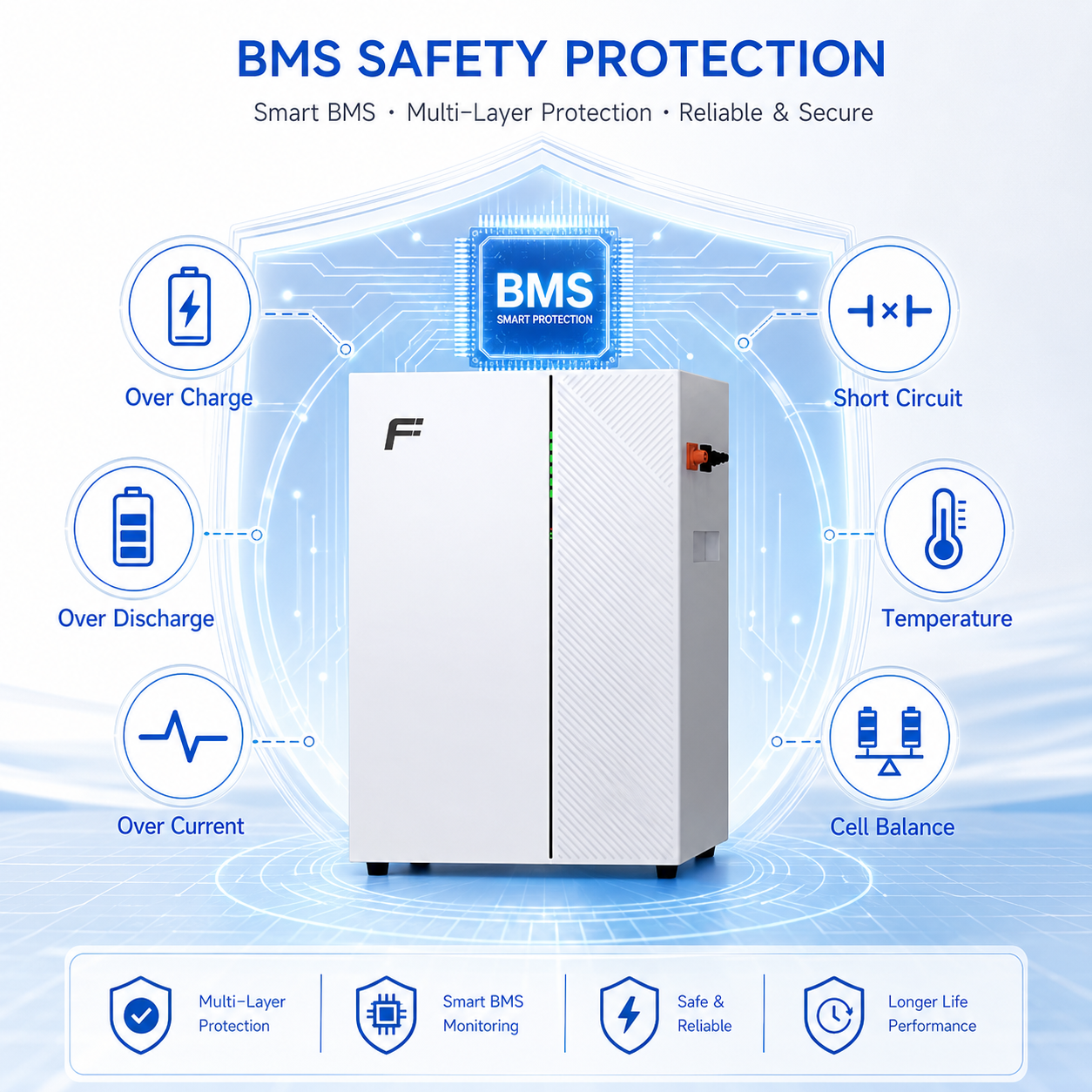

The built-in smart BMS helps monitor battery status and protect the system during charging, discharging and daily operation.
With protection against over charge, over discharge, over current, short circuit and abnormal temperature, it helps improve battery safety, stability and long-term performance.
Suitable for solar energy storage, telecom backup, UPS and rack-mounted ESS applications.

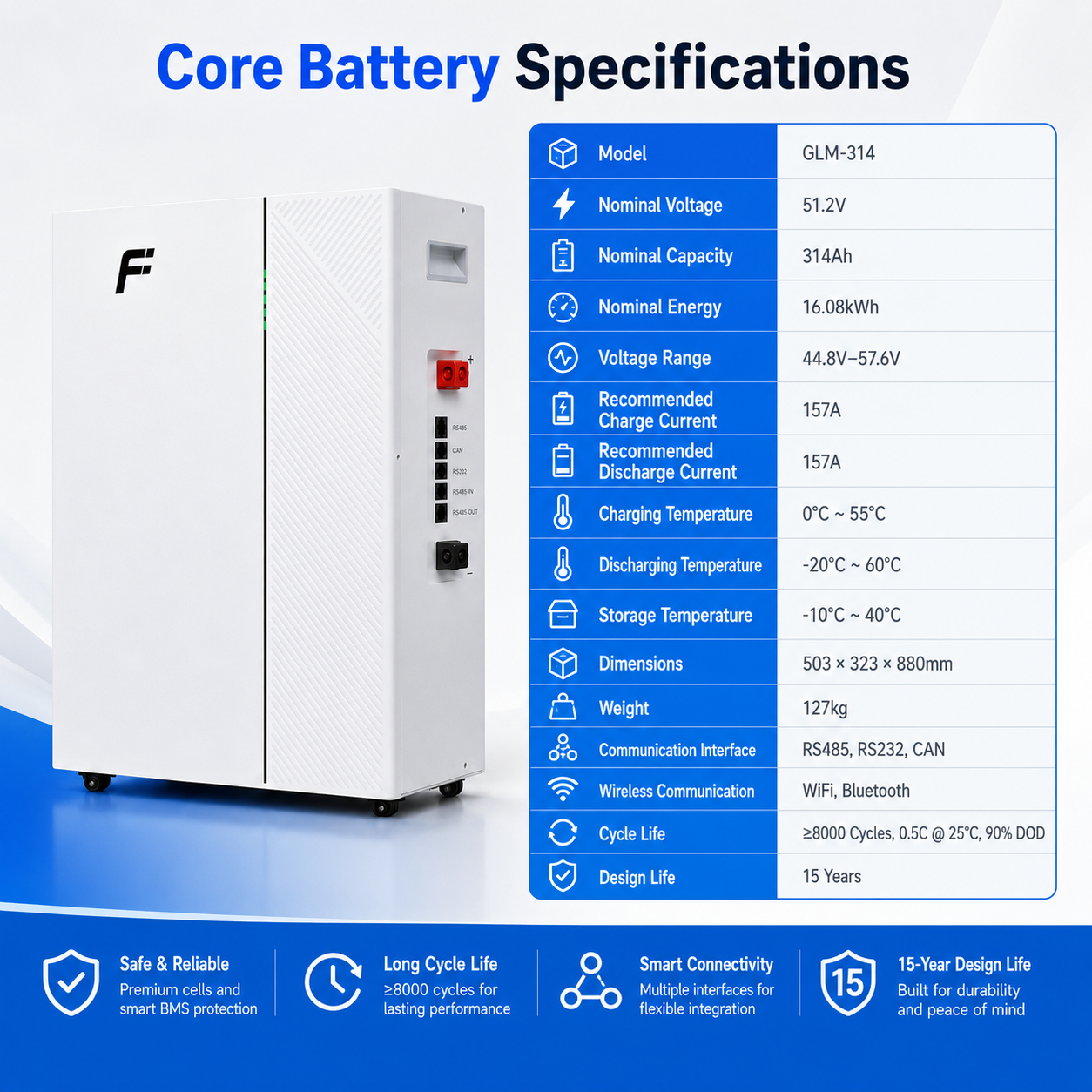

Detailed technical data helps you confirm whether the battery matches your inverter and project requirements.
| Specification | Details |
|---|---|
| Model | GLM-314 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Nominal Energy | 16.08kWh |
| Voltage Range | 44.8V–57.6V |
| Recommended Charge Current | 157A |
| Recommended Discharge Current | 157A |
| Charging Temperature | 0℃ ~ 55℃ |
| Discharging Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -10℃ ~ 40℃ |
| Dimensions | 503 × 323 × 880mm |
| Weight | 127kg |
| Communication Interface | RS485, RS232, CAN |
| Wireless Communication | WiFi, Bluetooth |
| Cycle Life | ≥8000 Cycles, 0.5C @ 25℃, 90% DOD |
| Design Life | 15 Years |

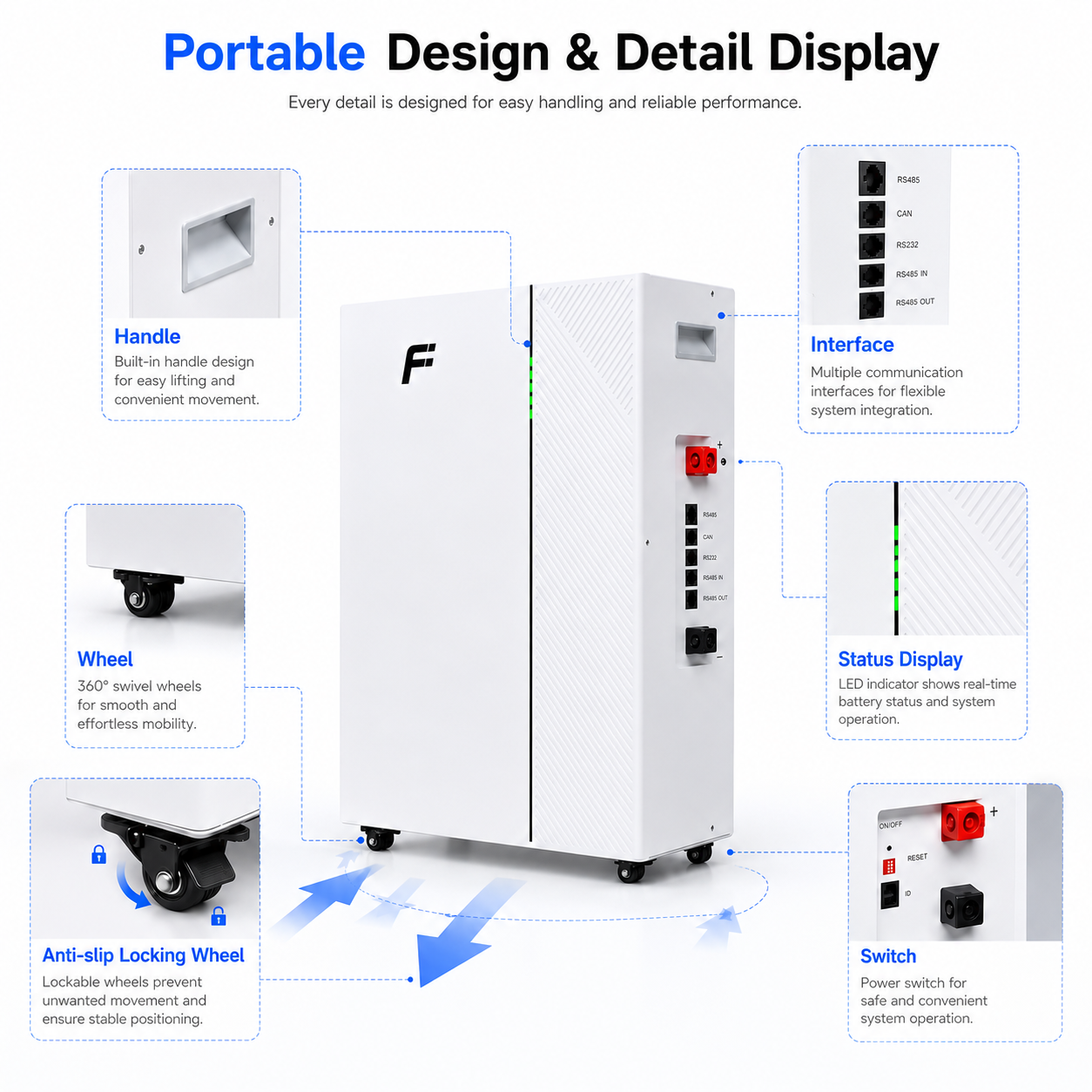

CAN2.0 / RS485 communication supports integration with many popular low voltage hybrid inverter brands.
Please share your inverter model before order for protocol confirmation.
Documents Available for International Battery Shipment.
Export battery projects require clear compliance and shipping documents. We can provide certificate files according to project requirements.
Available Files: CE | ISO 14001 | TUV NORD | Energy Label | TUV | MCS | CQC
We use a secure and organized packaging process to help protect battery products during handling, storage and international transportation.
Each battery is inspected before packing, accessories are arranged clearly, and the product is secured with export-grade wooden crate, pallet protection, clear labeling and stretch wrapping. This helps reduce transportation risk and supports safe, traceable and reliable global delivery.
