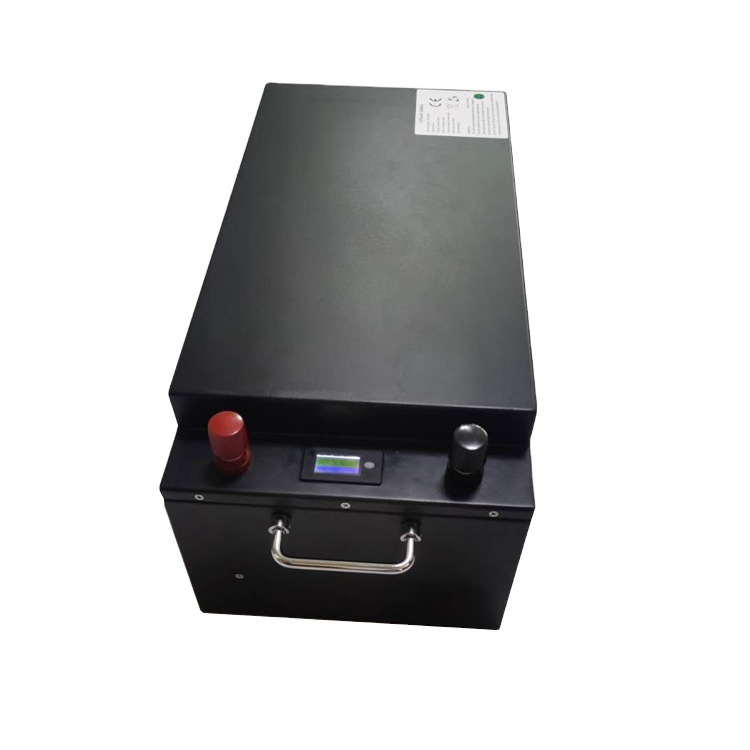

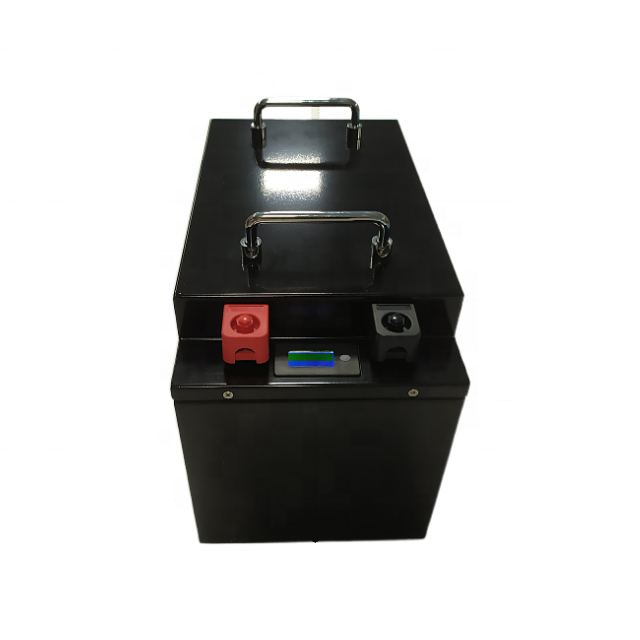

BMS LTO Battery Pack 12V 100AH Lithium Titanate Battery 12V 120AH Lithium Titanium Oxide Battery Price

Product Description

Specification

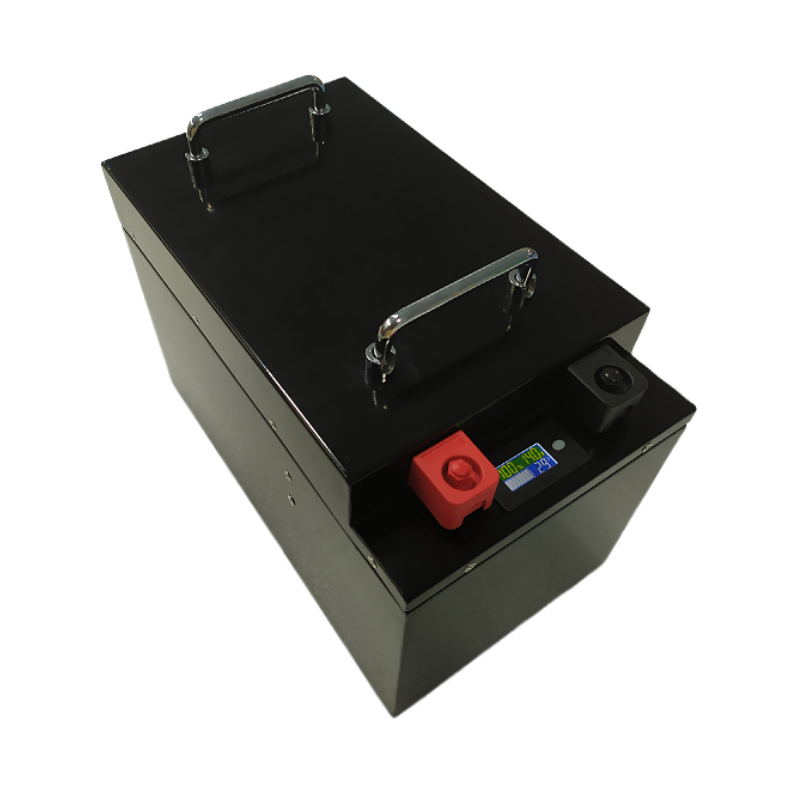

Specification Image
Nominal Voltage
11.5V
Nominal Capacity
120AH
Discharge Cut-Off
7.5V
Charge Cut-Off
14.5V
Charge Current
200A
Cont. Discharge
200A
Peak Discharge
400A
Impedance
≤20mΩ
Charge Temp
-40°C - 60°C
Discharge Temp
-40°C - 60°C
Charge Method
CC/CV
Life Cycle
20000+
Dimension
600*300*250 (5S3P)
Weight
26kg

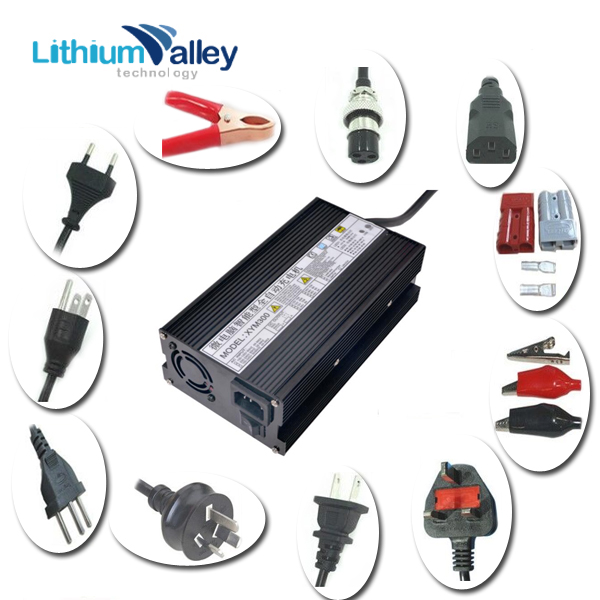

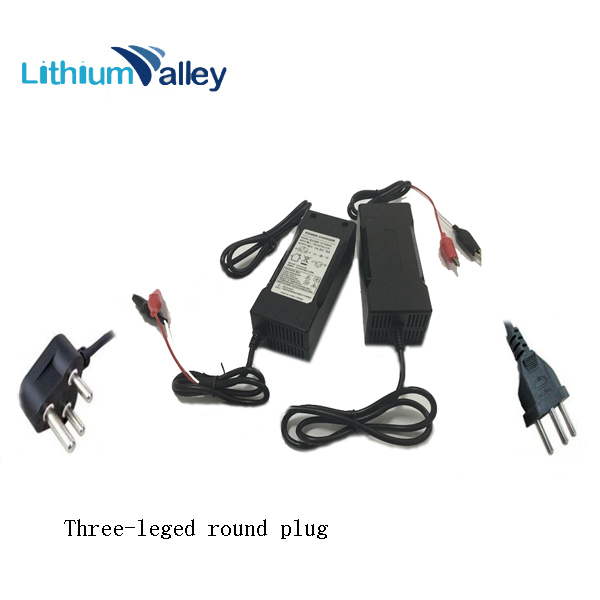

Charger

Charger is universal, support customization. Rechargeable batteries can be recharged with a charger, repeated use, energy saving and environmental protection. The correct method of charging can ensure the battery's life. Whether the battery is in use or not, due to a variety of reasons, will cause its power loss phenomenon.

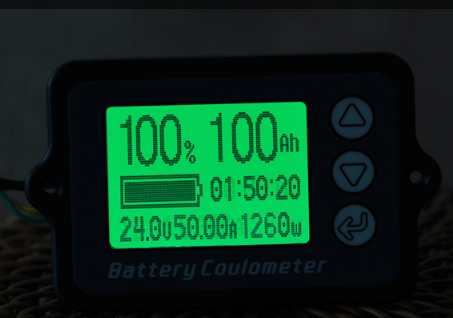

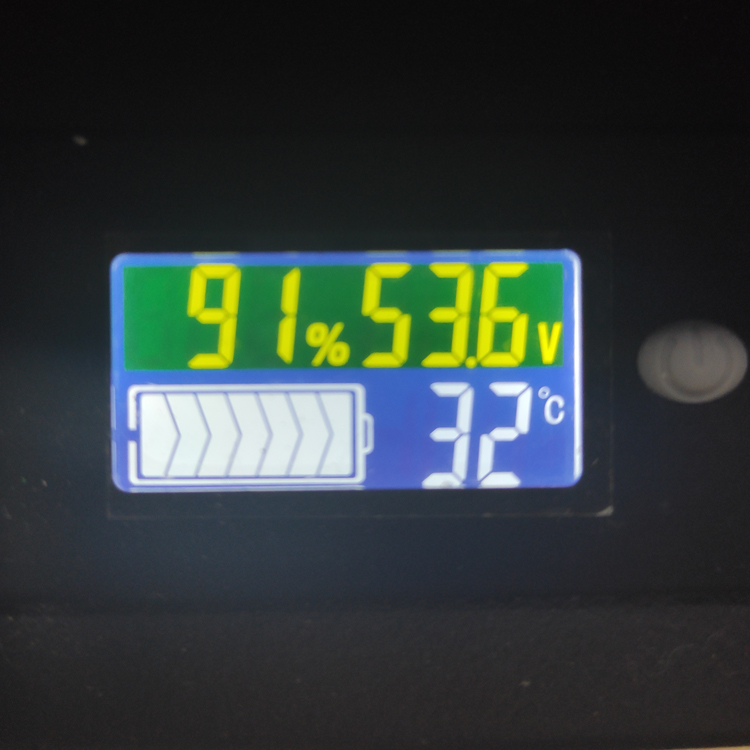

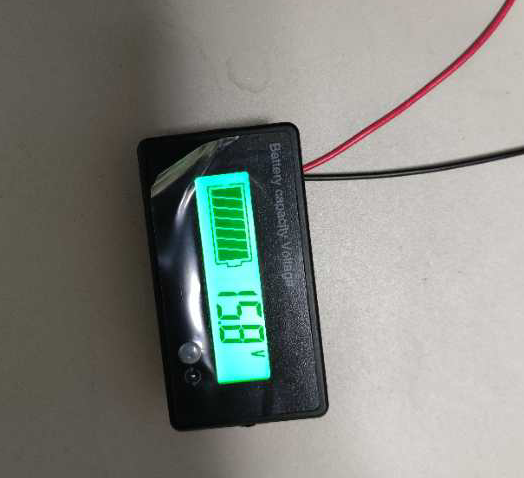

LCD Display

Our Services

  • Customized battery voltage and capacity
  • Customized battery case: plastic case, PVC, metal case
  • Customized BMS
  • Delivery support
We can support RS485/RS232/CANBUS/Bluetooth solutions, support active equalization schemes, and have developed battery self-heating schemes and load-weight schemes. These products are widely used.

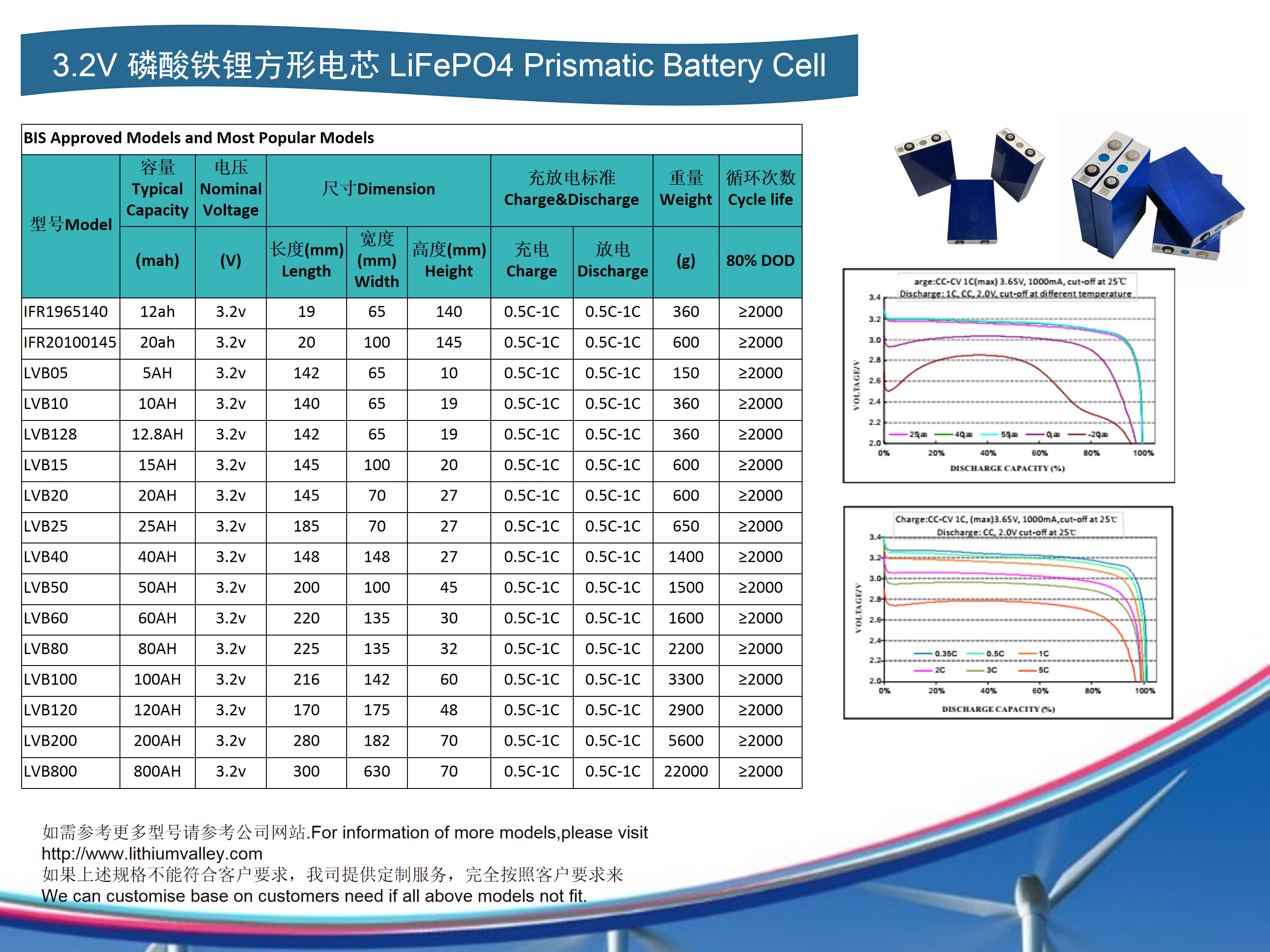

Service feature 1

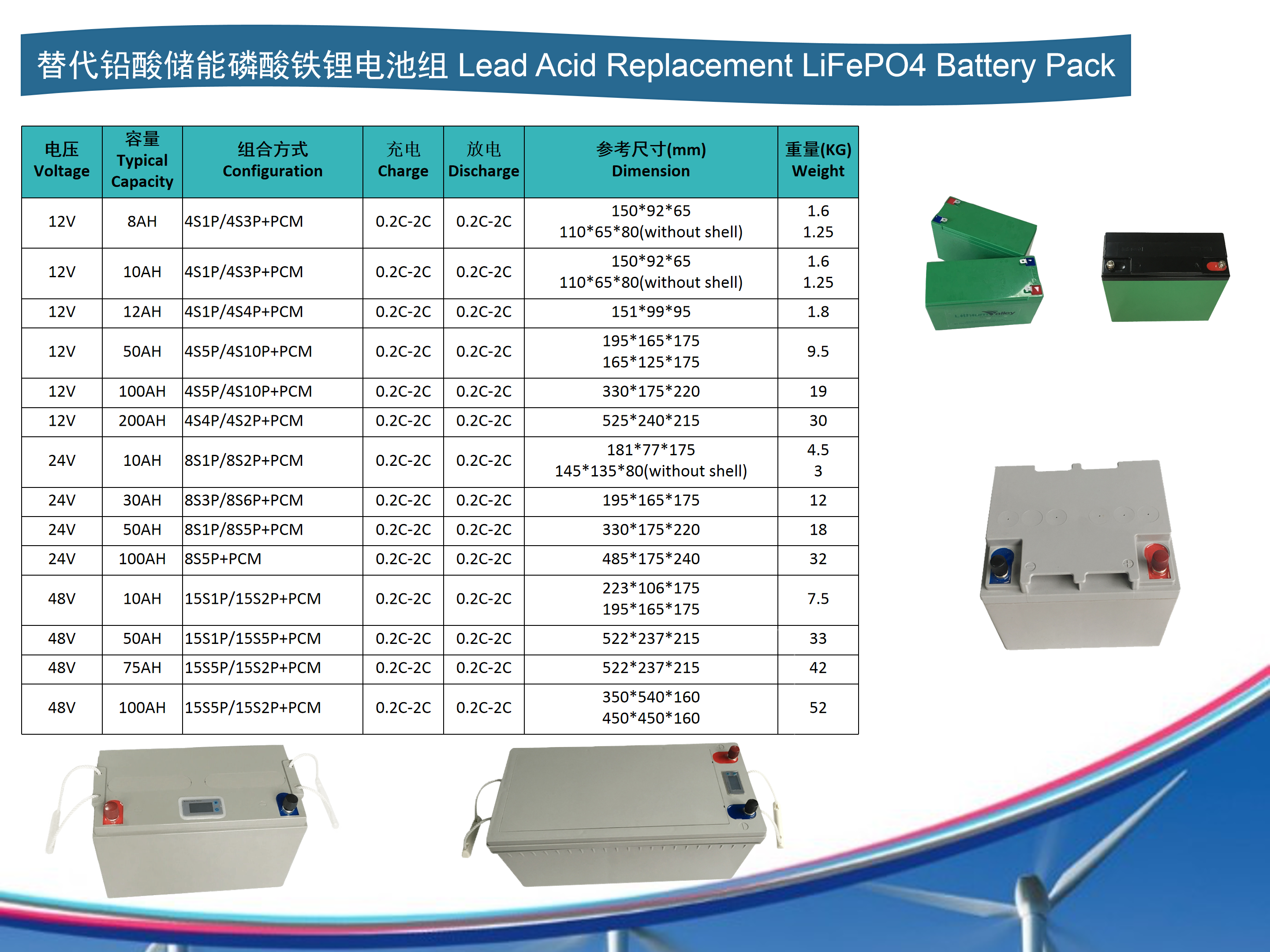

Service feature 2

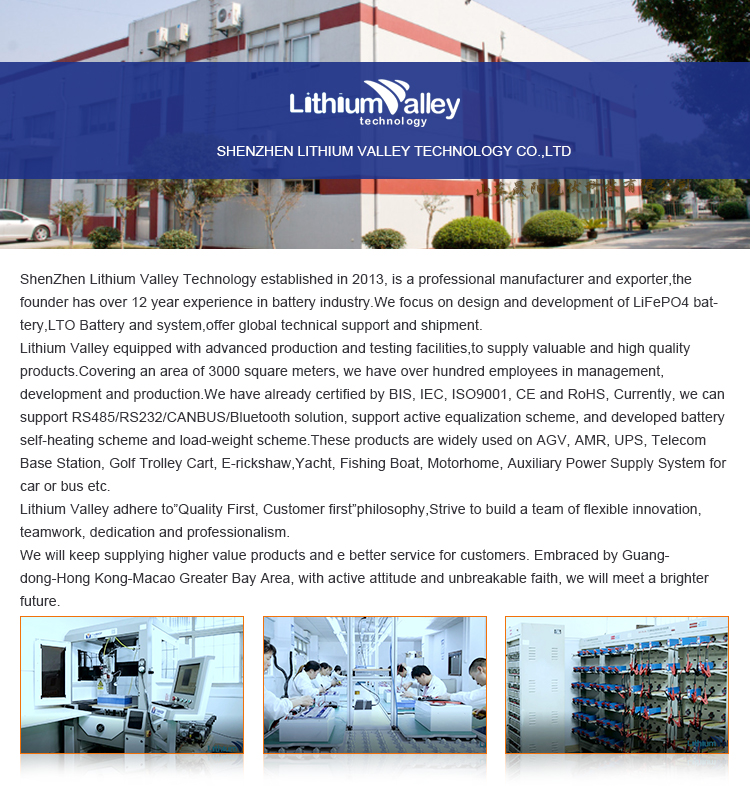

About Us

Factory Image 1
Factory Image 2
Factory Image 3
Factory Image 4
Factory Image 5
Factory Image 6
Factory Image 7

FAQ

Can we ship batteries out of China?
Yes, we can ship to any country out of China. You can tell us your address to check shipping options.
How do we ship the LiFePO4 battery packs?
For sample orders or small battery packs, we can ship by express through FedEx, UPS, TNT, etc. If the whole parcel is over 100KG, it can ship by air or by sea; sea shipping is cheaper. Customers can provide the nearest airport name and sea port name for our sales representatives to check the best option for you.
Can we put different LiFePO4 battery packs in parallel or series by ourselves?
Yes, the batteries can be configured in parallel or series by customers. However, please pay attention to the following guidelines:
1. Make sure the voltage of each battery is identical before setting them in parallel. If they differ, charge them to the same level first.
2. Do not mix discharged and undischarged batteries in parallel, as this may reduce the capacity of the entire battery pack.
3. Inform us of your target capacity for the system if you intend to connect them in series; we will select the appropriate BMS for each battery.
4. If you are not a professional, please do not configure the batteries in parallel or series yourself, as it may be dangerous and negatively impact battery life.
Can we put different LiFePO4 battery packs in series by ourselves?
You can purchase high-voltage battery packs directly from us. We advise against assembling them in series yourself, as it may degrade the lifespan of the pack.
Does your battery pack include BMS? Can we use it for a car?
Yes, our battery pack includes a BMS. It can be used for low-speed vehicles or as auxiliary power for standard vehicles. Do not connect it directly as primary power for standard cars, which require a more complex BMS design.
What is your warranty?
We offer a 2-year warranty for all our battery packs. We guarantee at least a 2000-cycle life for the LiFePO4 battery pack, meaning after 2000 cycles at 80% DOD, approximately 60% capacity will remain. You can expect a service life of at least 5 years with a standard daily single charge and discharge cycle.
Please notice:
After you place an order, we will contact you by phone or email to confirm whether our battery's specifications meet your requirements. Please check your contact information and messages. If no response is received, we will proceed with shipping the batteries configured to our standard specifications.
