(1) All cells are original, Grade A, 100% brand new, and guaranteed to have sufficient capacity.

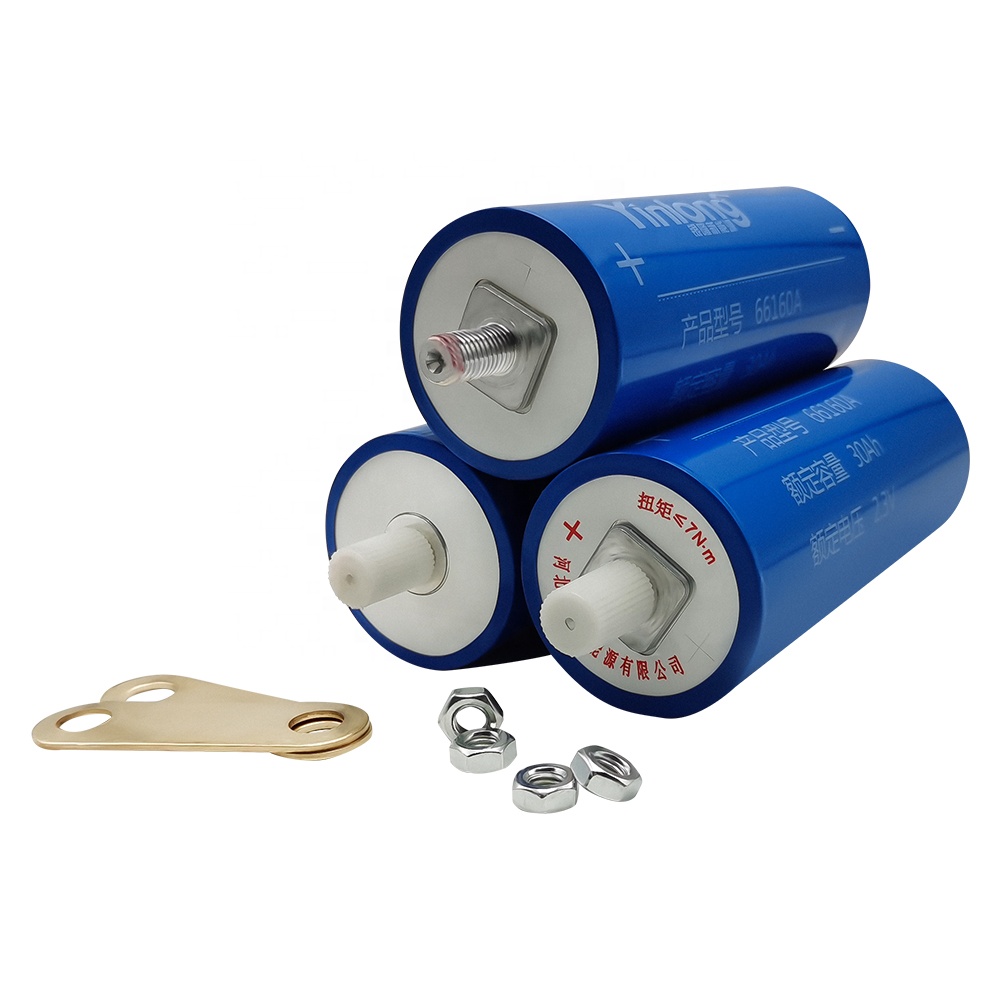

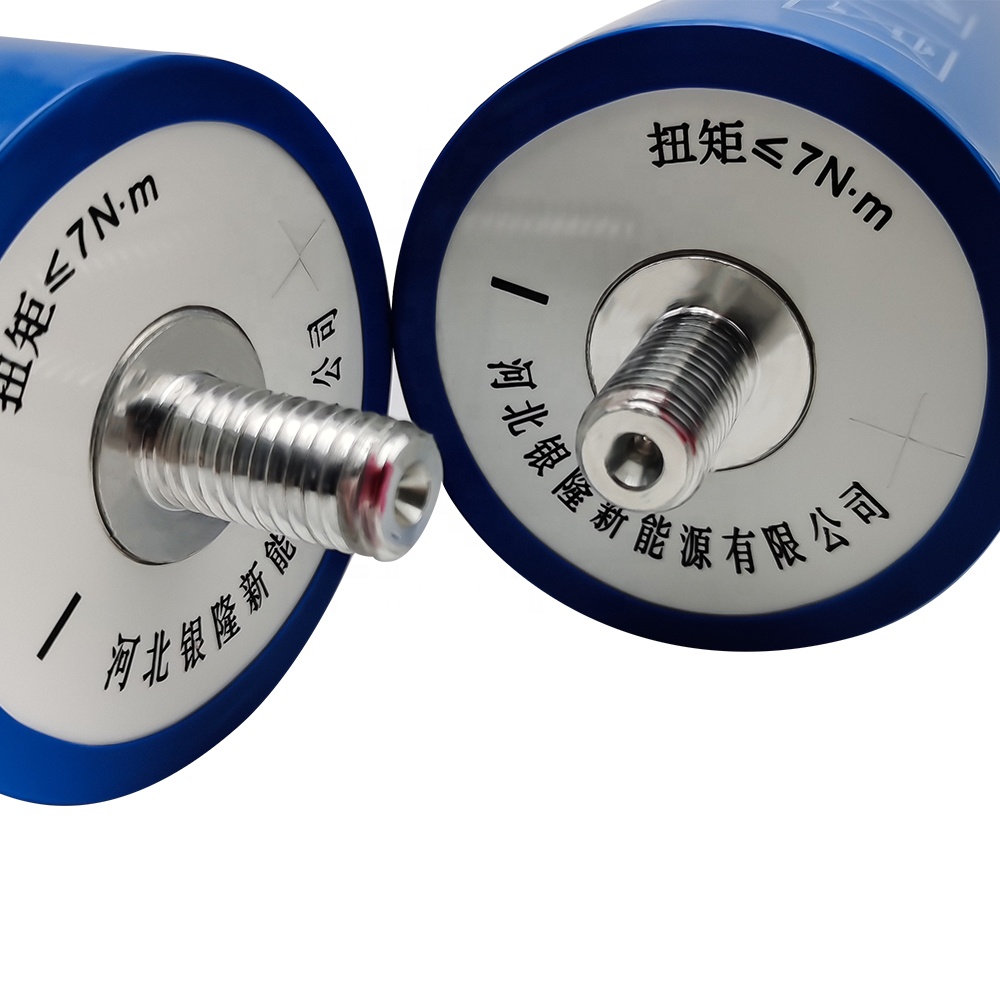

(2) The original terminals of these batteries feature laser welding points. For easier assembly, studs with a length of 10-15mm have been pre-welded. Please advise if you have special requirements.

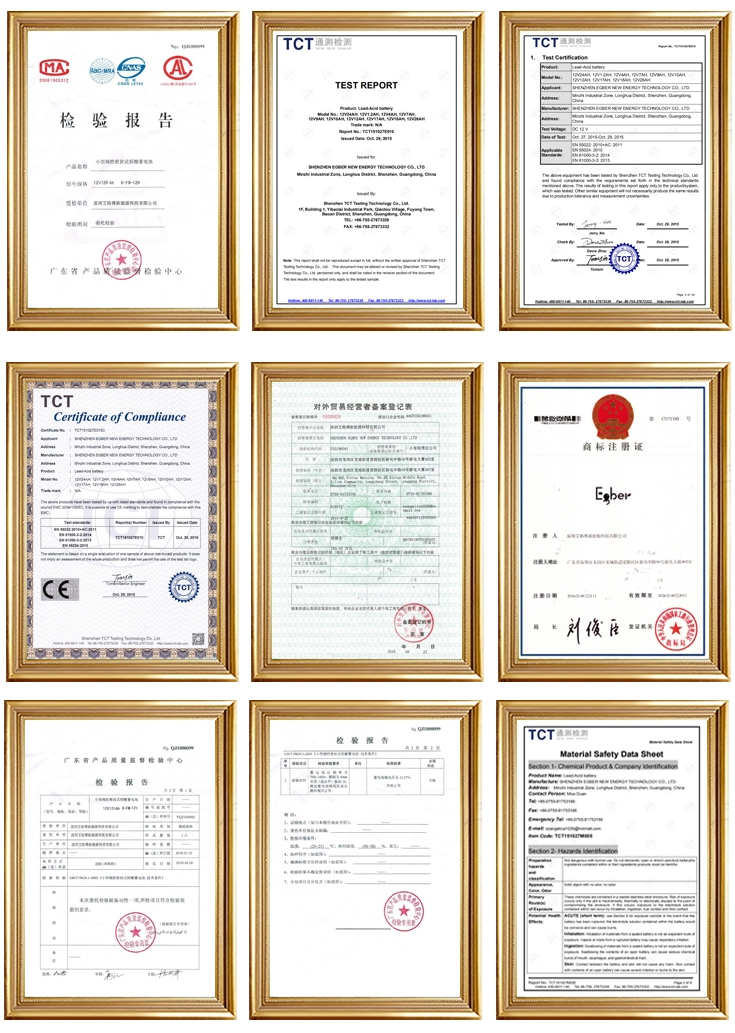

(3) Various certifications can be provided, including CE, MSDS, UN, and UL.

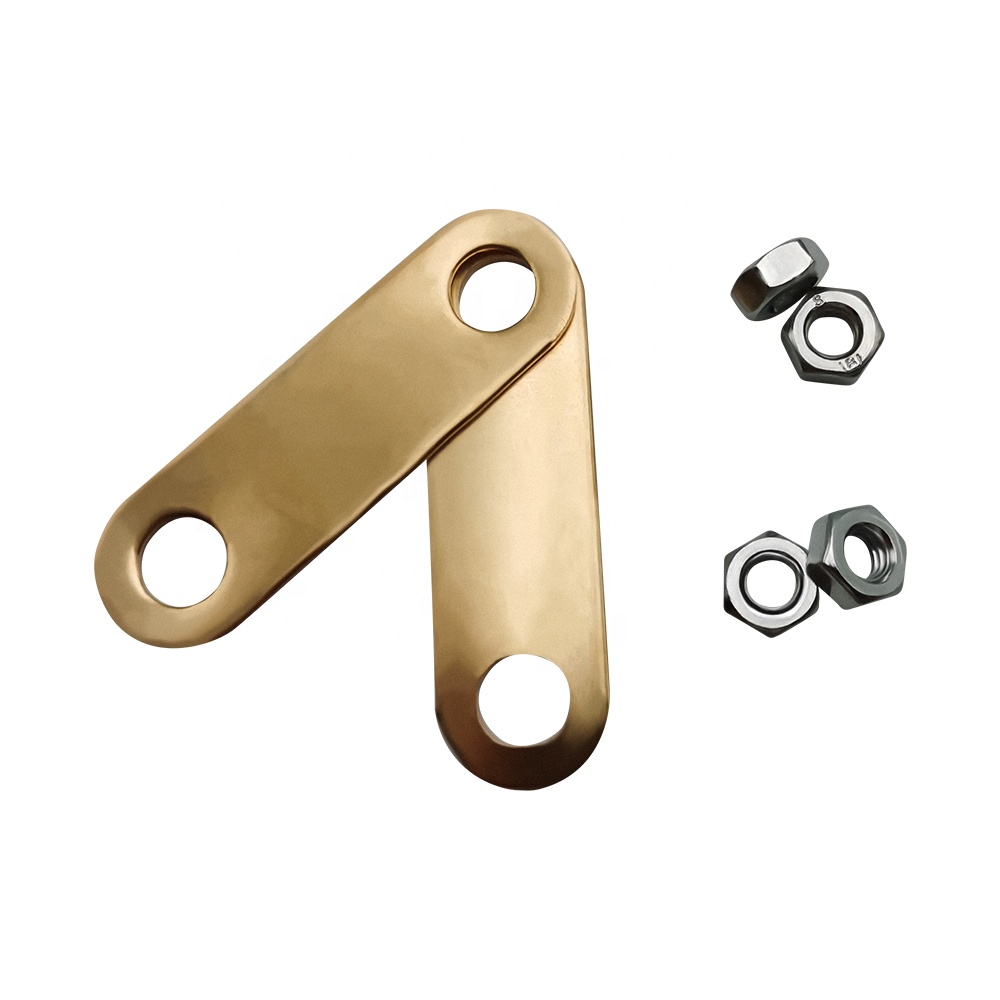

(4) Bus bars and nuts are included for free (Material: copper; 1 bus bar + 2 nuts per cell unit).
Please ignore the default shipping price shown on the website. The specific shipping cost will be calculated individually based on country, zip code, order weight, and preferred shipping method.
(1) Send an inquiry through any product link in the store.
(2) Once all details are discussed and confirmed (including product specifications, shipping method, and total price), the order will be drafted.
(3) Verify the order details and follow the system prompts to complete the payment via the secure order link.
(4) Upon receiving payment, product test pictures, videos, and tracking information will be updated and shared with you.
| Item | Parameters | |
|---|---|---|

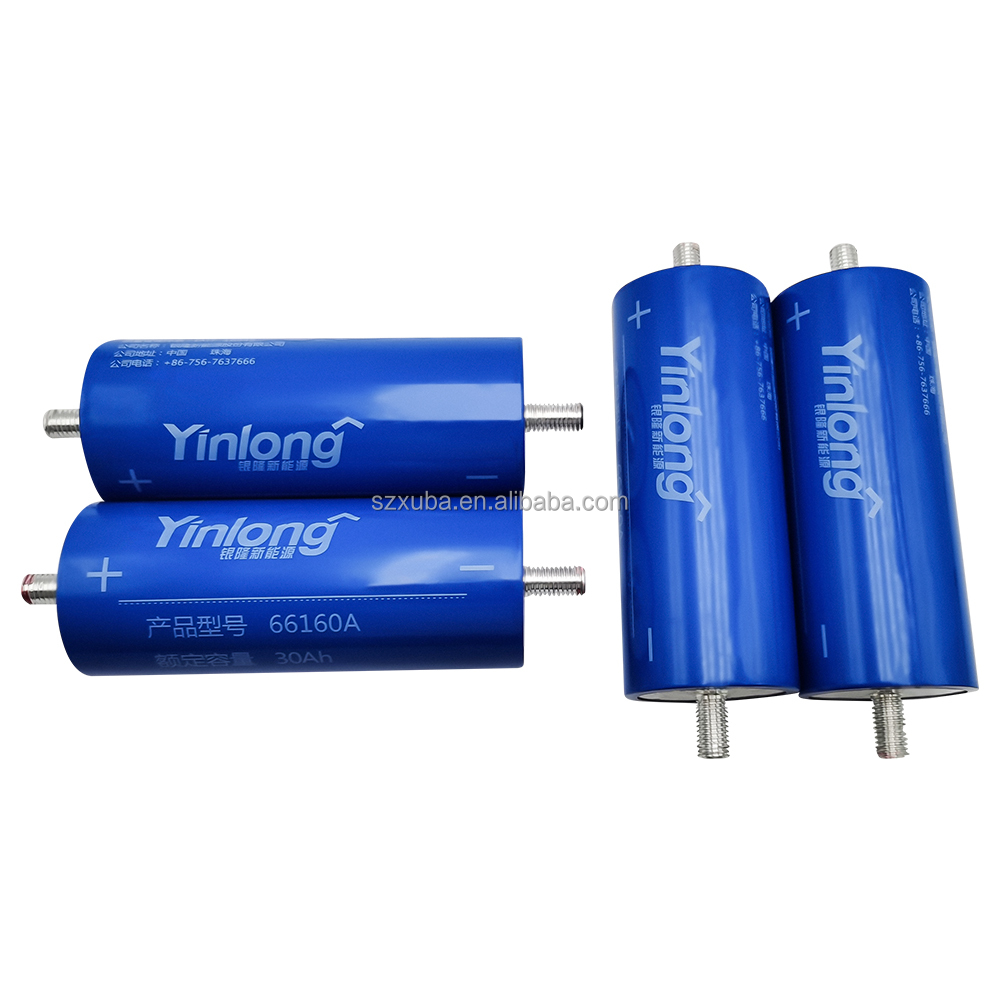

| Model | OSN-66160A-LTO30Ah | |
| Materials | LTO (Lithium Titanate Oxide) | |
| Nominal capacity | 30Ah | |
| Certification | CE | |
| Terms of payment | TT / PayPal | |
| Nominal voltage | 2.3 V | |
| Dimension | Length: 160 ± 1.5mm | |
| Diameter: 66 ± 1mm | ||
| Weight | 1.20 ± 0.1kg | |
| Internal Resistance | ≤ 1mΩ | |
| Operating voltage | Charge cut-off voltage | 2.8 V |
| Discharge cut-off voltage | 1.5 V | |
| Standard charge/discharge current | Charge current | 1C (40 A) |
| Discharge current | 1C (40 A) | |
| Cycle life | 30,000 times | |
| Operating Thermal Ambient | Charging Temperature | -50°C ~ 65°C |
| Discharging Temperature | -50°C ~ 65°C | |

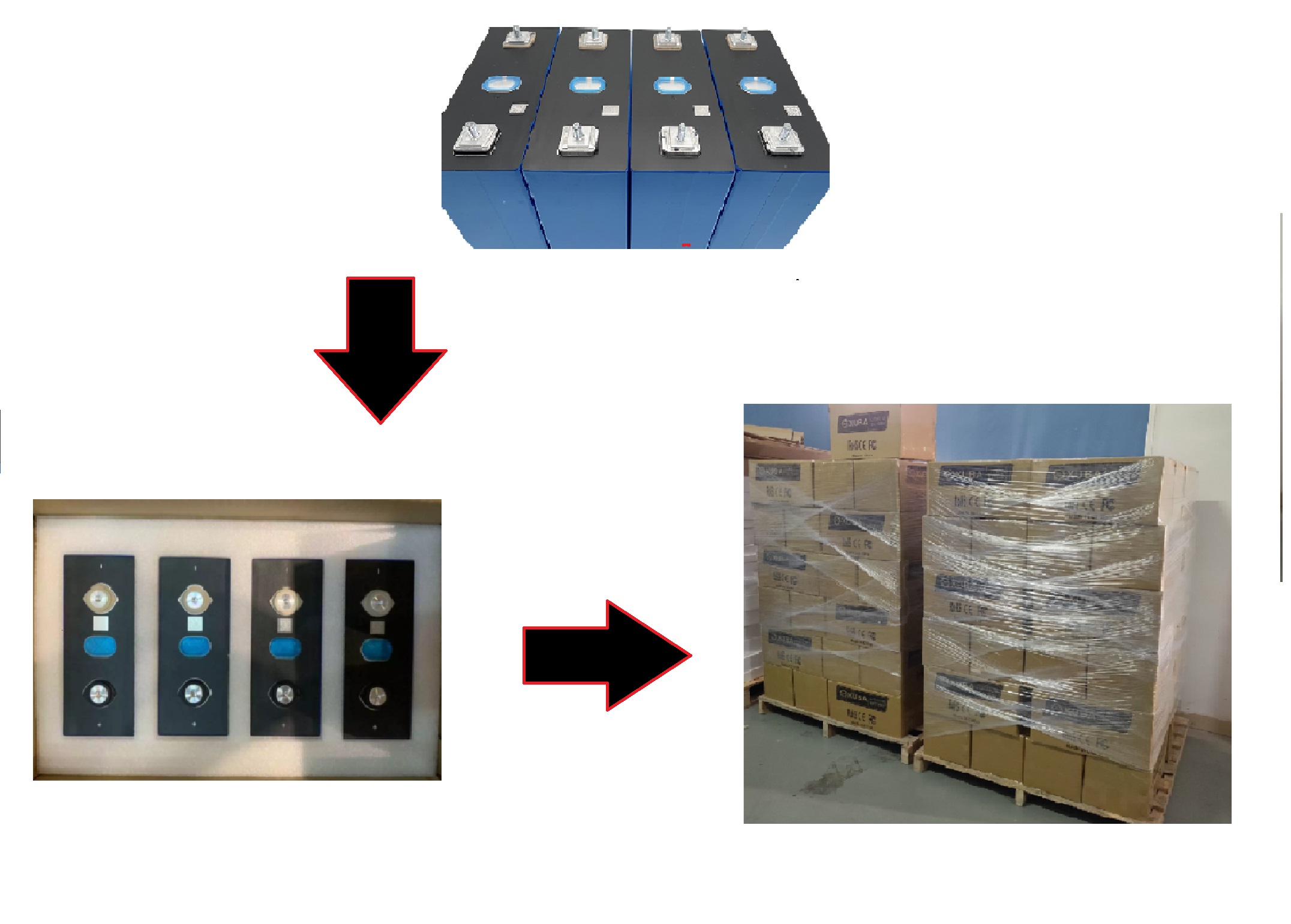

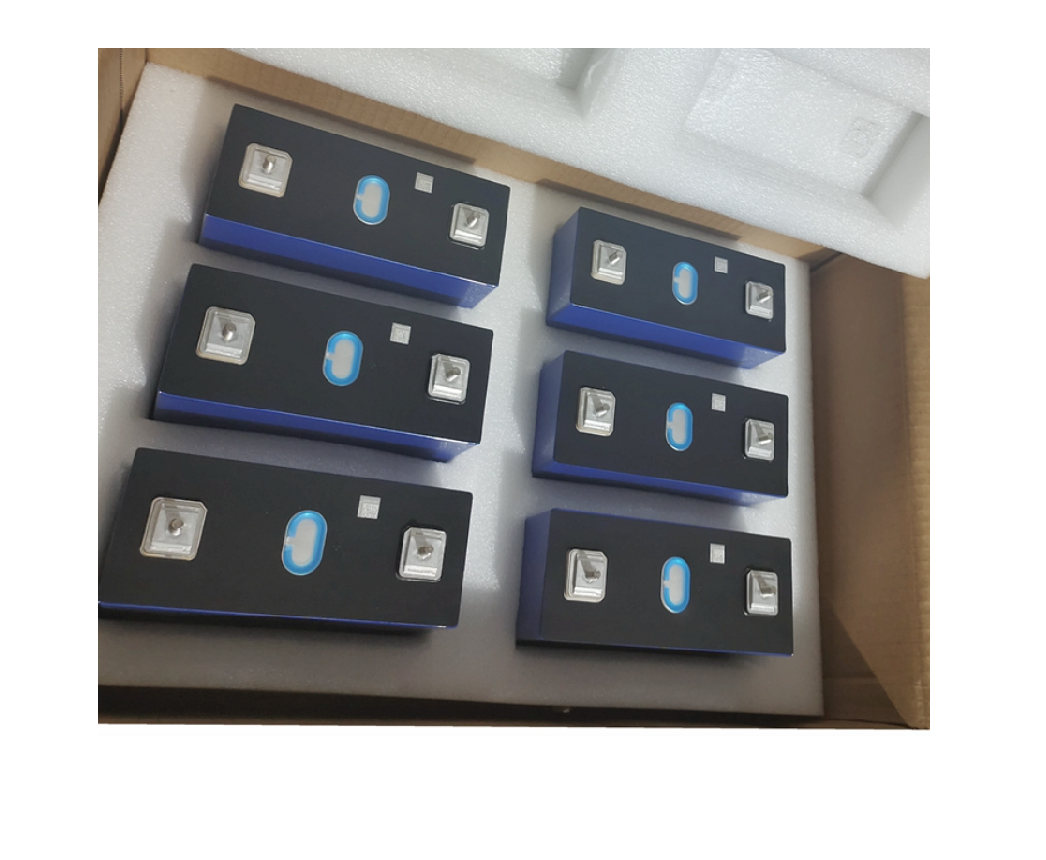

Standard Packaging: One battery pack per box.
