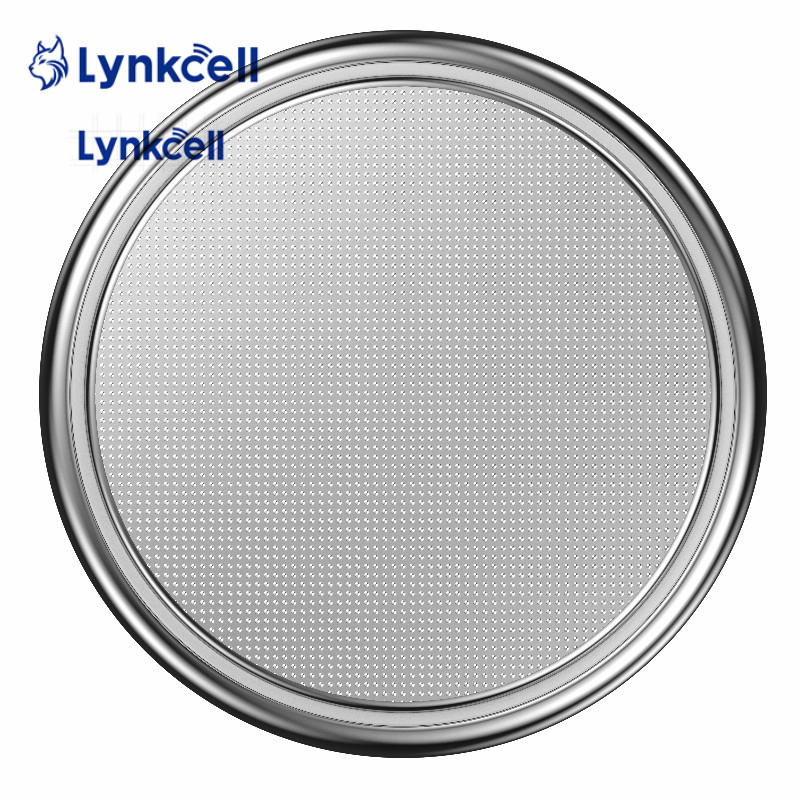

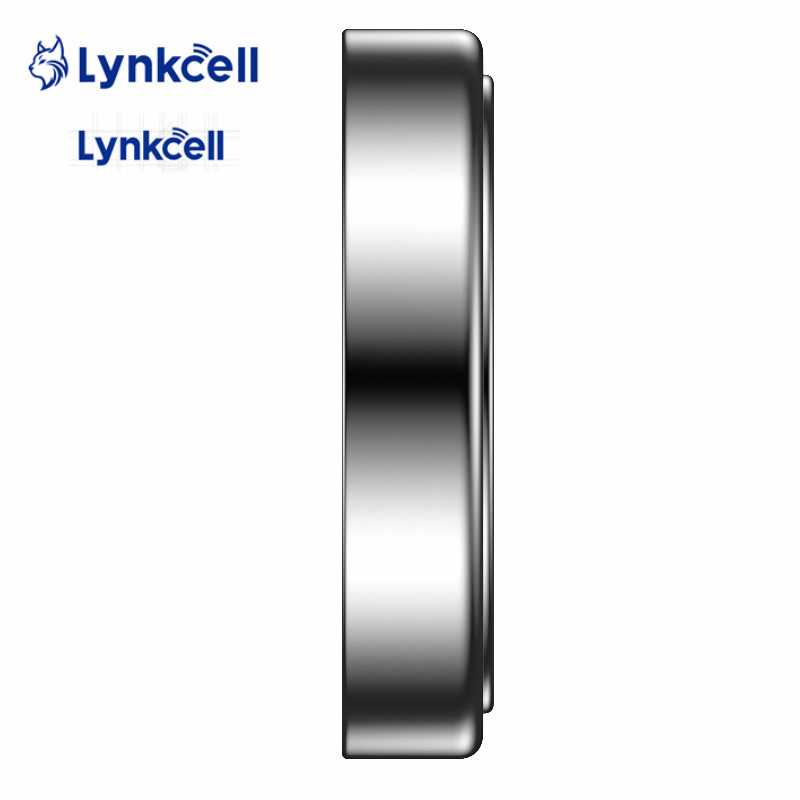

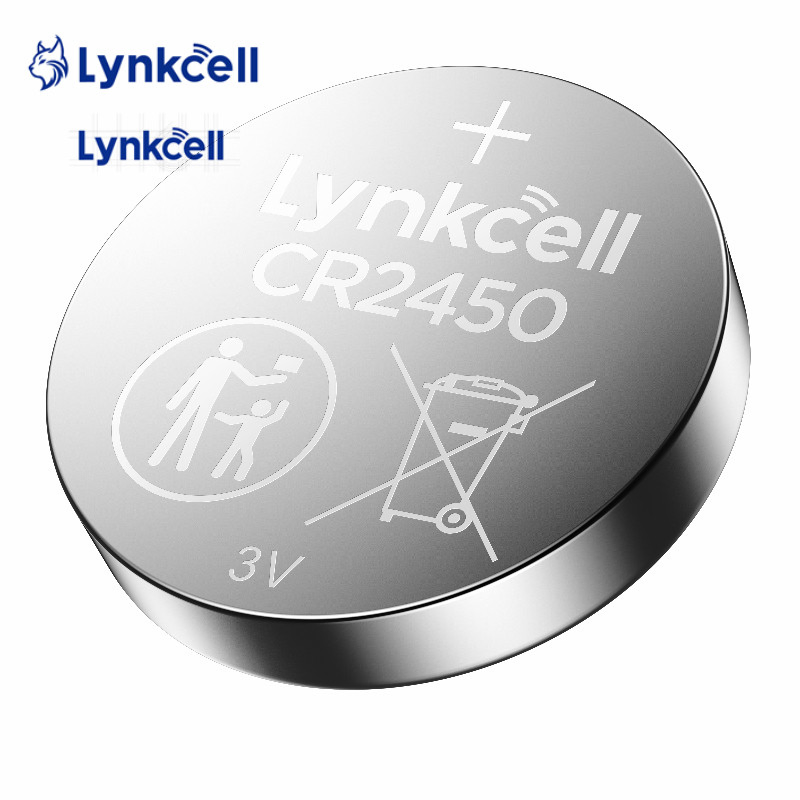

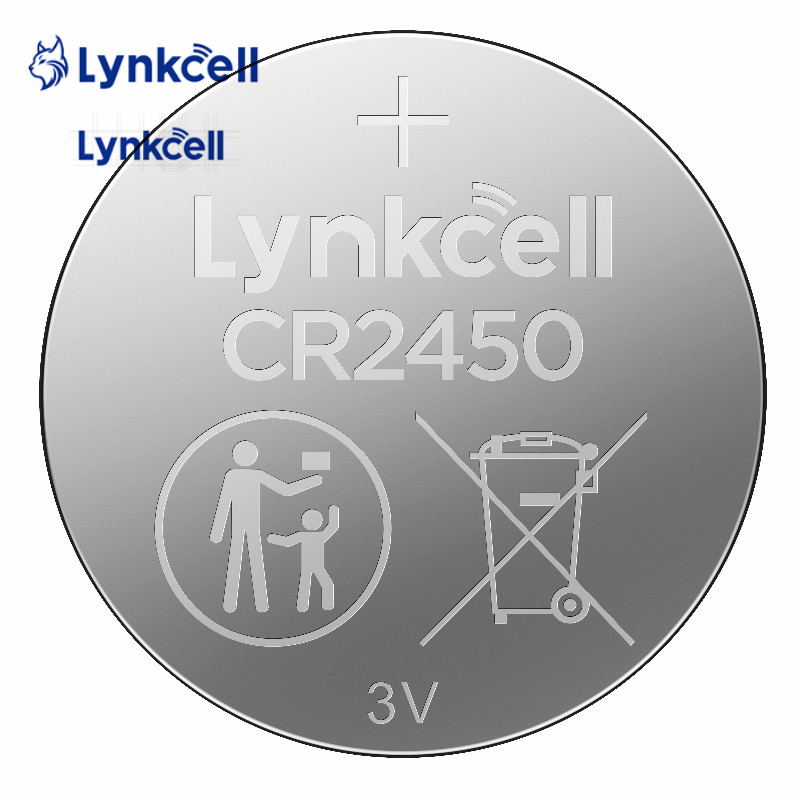

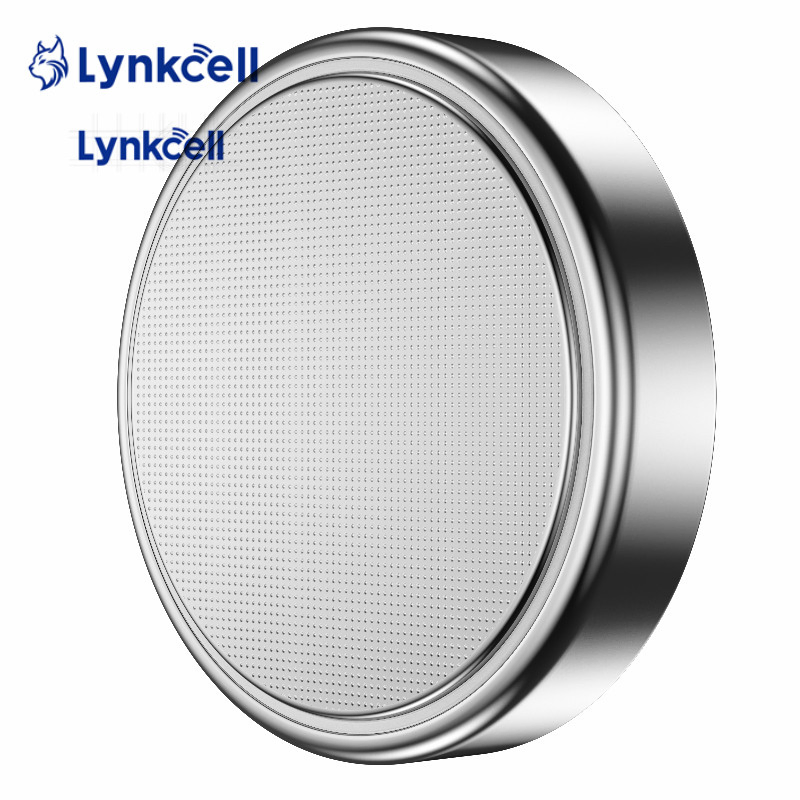

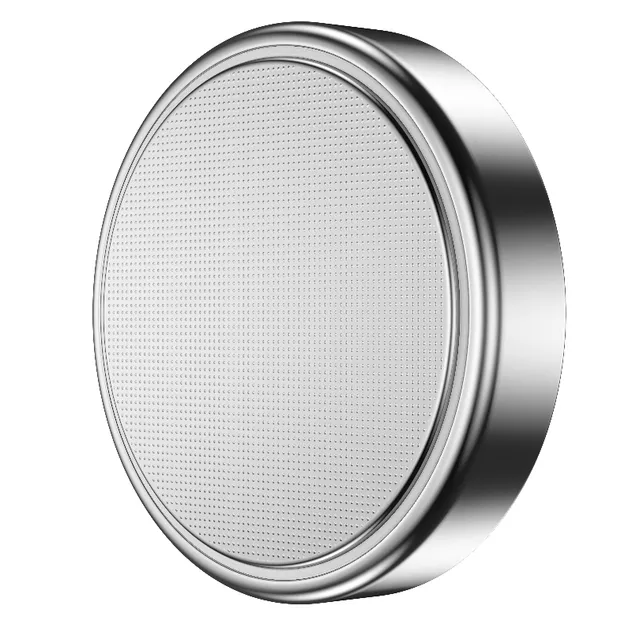

Compact Design Cr2450 Lithium Manganese Dioxide Button Cell for Space Saving

1 / 5

Compact Design Cr2450 Lithium Manganese Dioxide Button Cell for Space Saving

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info & Specifications

Technical Specifications
Model NO.	CR2450
Charging Type	Non-rechargeable
Battery Type	LiMnO2 Battery
Recyclable	Recyclable
Type	Chemical Cell
Typical Model	Cr2032 / Cr2450 / Cr1632 / Cr1220
Capacity	620mAh
Level	Industrial Grade
Maximum Continuous Discharge Current	8mA
Maximum Pulse Current	30mA
Storage Time	10 Years
Origin	China
HS Code	8506500000
Production Capacity	100 Million Pieces/Year

Packaging & Delivery

Package Size	31.30cm * 31.30cm * 15.60cm
Package Gross Weight	11.500kg
Transport Package	Standard Packaging for Sea and Air Transportation

Product Description

Parameter	Value
Type	IEC-CR2450
Classification	Lithium Metal
Chemical System	Li/MnO2
Nominal Capacity	620 mAh
Nominal Voltage	3.0 V
Standard Continuous Discharge Current	0.4 mA
Maximum Continuous Discharge Current	8 mA
Maximum Pulse Discharge Current	30 mA
Operating Temperature	–30°C to +85°C
Storage Conditions	20±5°C, 55±20% R.H.
Typical Weight	6.6 g

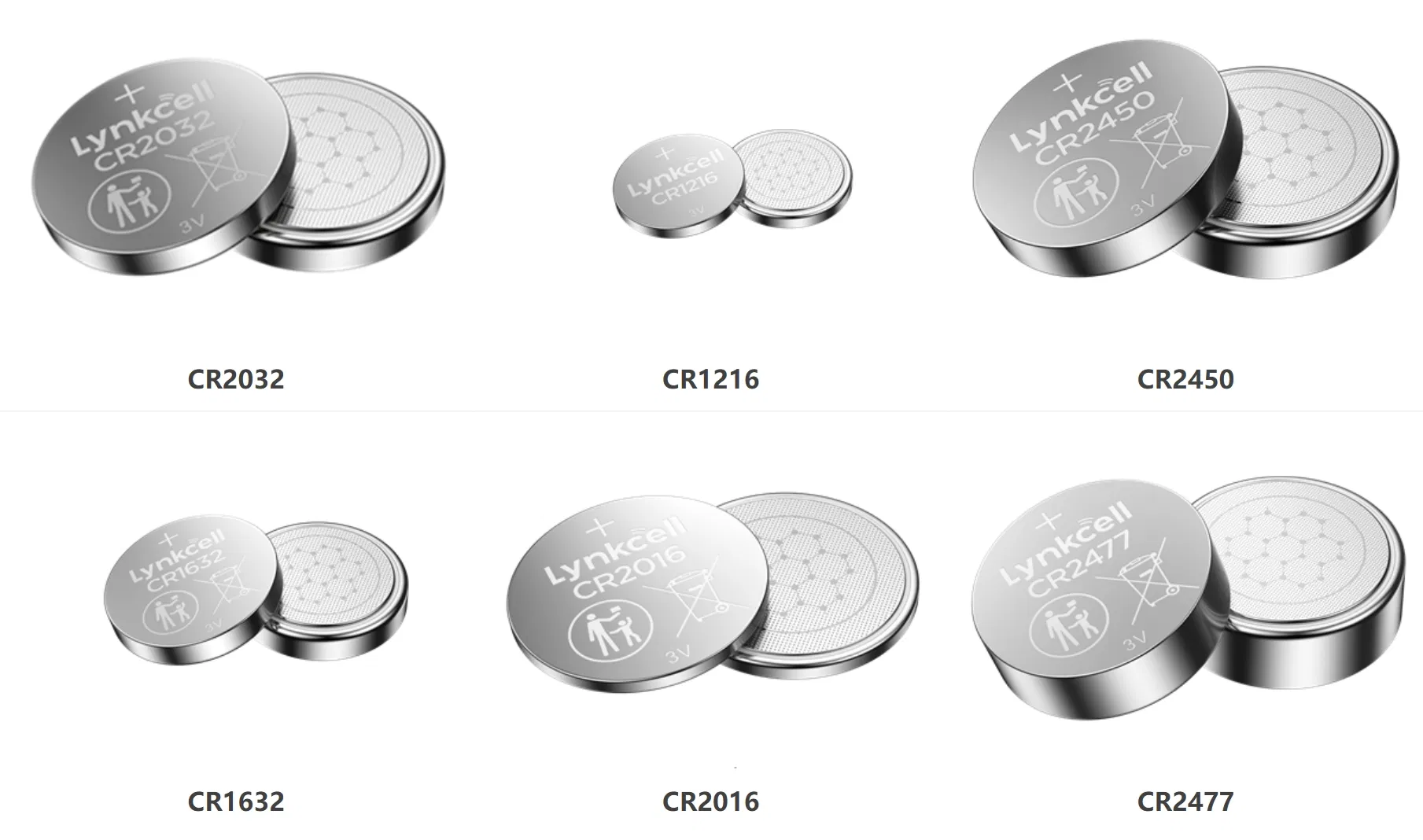

Main Product

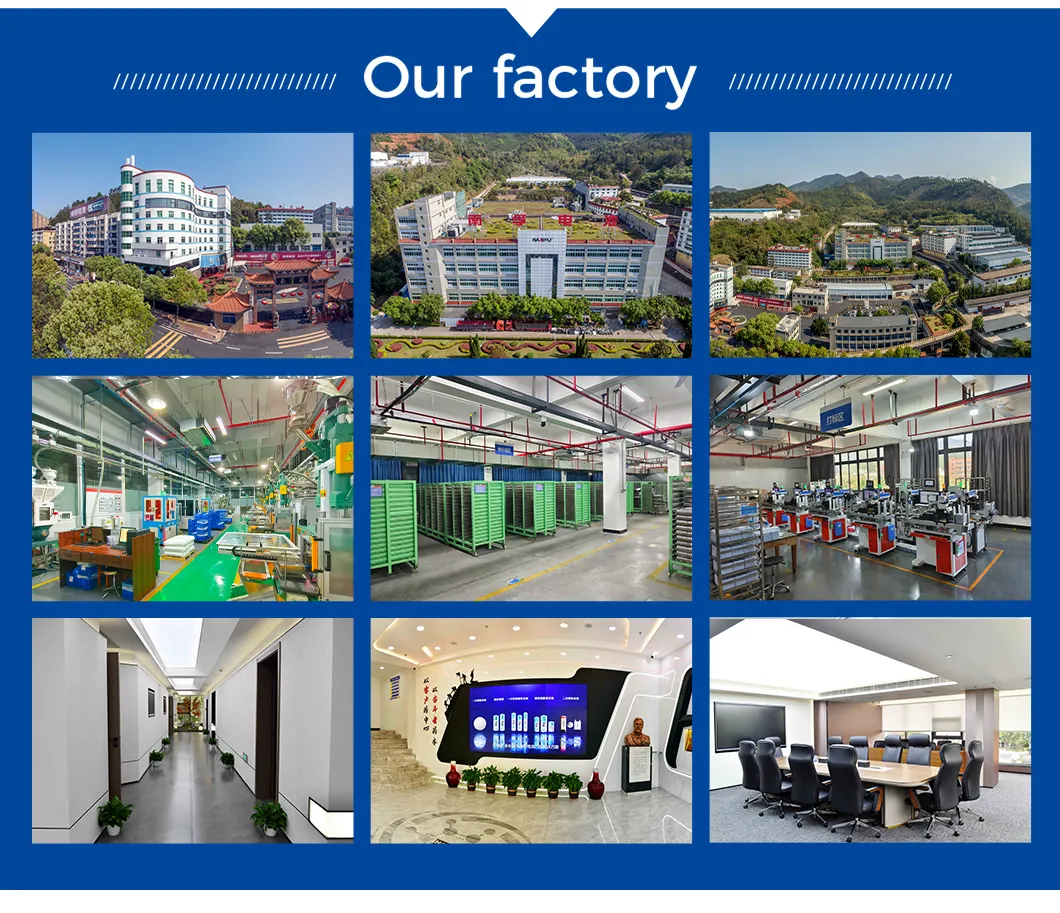

Company Profile

The company was founded in 1954 and has been focusing on the research and development of small batteries and non-rechargeable batteries. It has now become the top brand of non-rechargeable batteries in China. The company is a national key technology center, equipped with a provincial key laboratory for batteries, and also has a testing center certified by CNAS.

Certifications

Exhibition

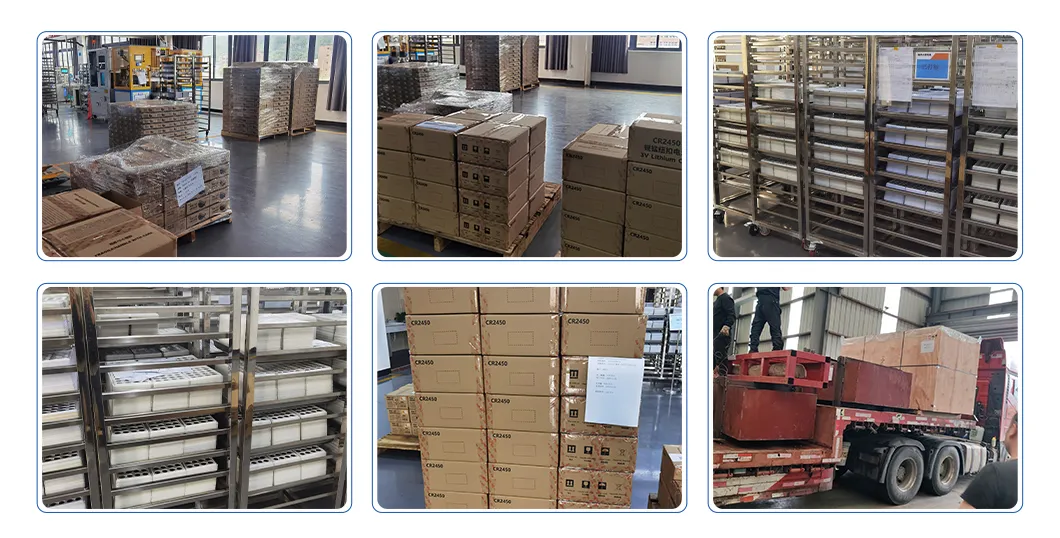

Packaging & Shipping

Matters Need Attention

Handle the battery with care.
The battery storage environment is subject to temperature and humidity control.
The battery should be stored in a well-ventilated, shady and dry environment.
There should be no heat sources (such as boilers, engines, etc.) near the battery storage area.
The battery storage environment is clean and free of dust.
Keep the battery storage and retrieval away from metal objects.

Frequently Asked Questions (FAQ)

What are the nominal voltage and capacity of the CR2450 battery?

The CR2450 battery features a nominal voltage of 3.0V and a high nominal capacity of 620mAh, designed for long-lasting performance in small electronic devices.

Is the CR2450 battery rechargeable?

No, the CR2450 is a primary (non-rechargeable) Lithium Manganese Dioxide (LiMnO2) battery. Attempting to charge it may cause damage or leakage.

What is the shelf life of these batteries?

When stored under proper conditions (20±5°C, 55±20% R.H.), the CR2450 battery has an excellent storage shelf life of up to 10 years.

What is the operating temperature range for the CR2450?

The battery is engineered to operate reliably in extreme conditions, with a working temperature range spanning from -30°C up to +85°C.

How should the CR2450 batteries be stored safely?

Batteries should be stored in a clean, dust-free, well-ventilated, shady, and dry location away from direct heat sources and any metallic objects to prevent short circuits.
