Overview
Basic Info.
| Model NO. |
CR2450 |
| Charging Type |
Non-rechargeable |
| Battery Type |
LiMnO2 Battery |
| Recyclable |
Recyclable |
| Type |
Chemical Cell |
| Typical Model |
Cr2032/Cr2450/Cr1632/Cr1220 |
| Silver Oxide Model |
/ |
| LiMnO2 Model |
CR2450 |
| Packaging |
Simple |
| Storage Time |
10 Years |
| Capacity |
620mAh |
| Level |
Industrial Grade |
| Max Continuous Current |
8mA |
| Max Pulse Current |
30mA |
| Transport Package |
Standard Packaging for Sea and Air |
| Specification |
LiMnO2 Battery |
| Origin |
China |
| HS Code |
8506500000 |
Packaging & Delivery
| Package Size |
31.30cm * 31.30cm * 15.60cm |
| Package Gross Weight |
11.500kg |

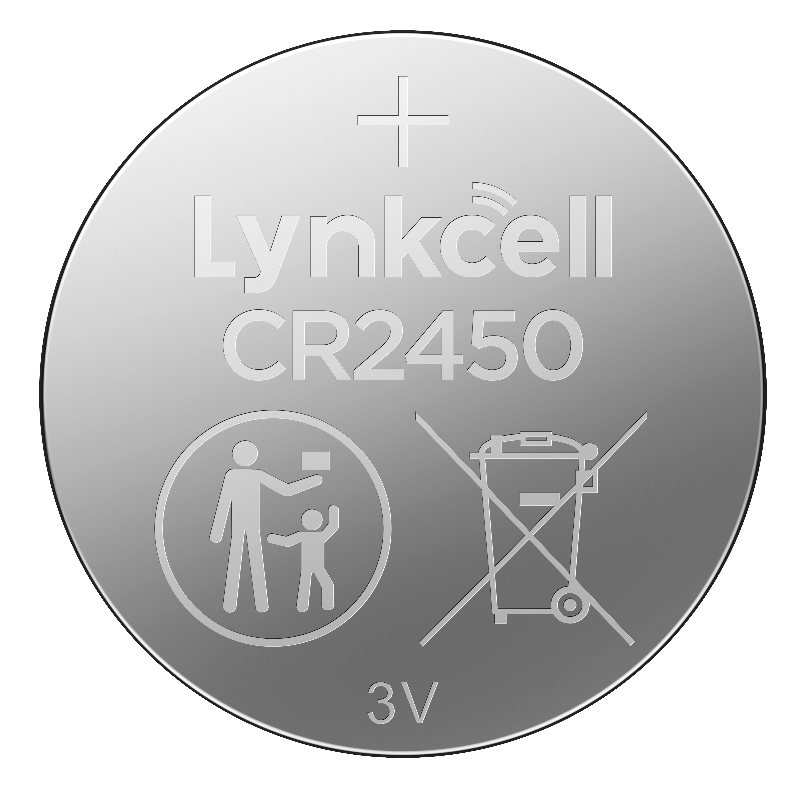

Product Description
| Parameter |
Specification Value |
| Type |
IEC-CR2450 |
| Classification |
Lithium Metal |
| Chemical System |
Li/MnO2 |
| Nominal Capacity |
620 mAh |
| Nominal Voltage |
3.0 V |
| Standard Continuous Discharge Current |
0.4 mA |
| Maximum Continuous Discharge Current |
8 mA |
| Maximum Pulse Discharge Current |
30 mA |
| Operating Temperature |
–30°C to +85°C |
| Storage Conditions |
20±5°C, 55±20% R.H. |
| Typical Weight |
6.6 g |

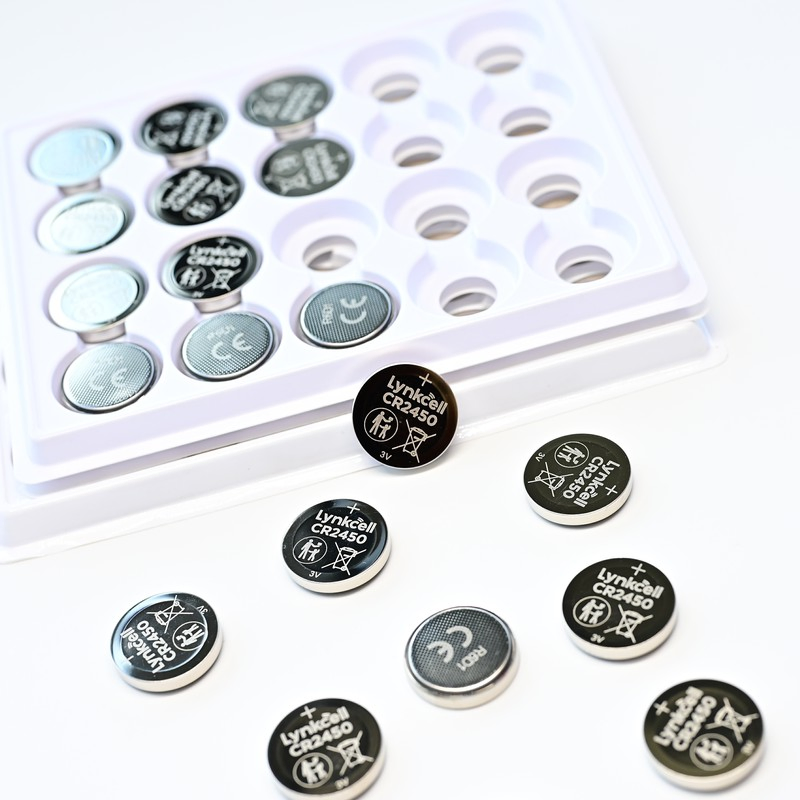

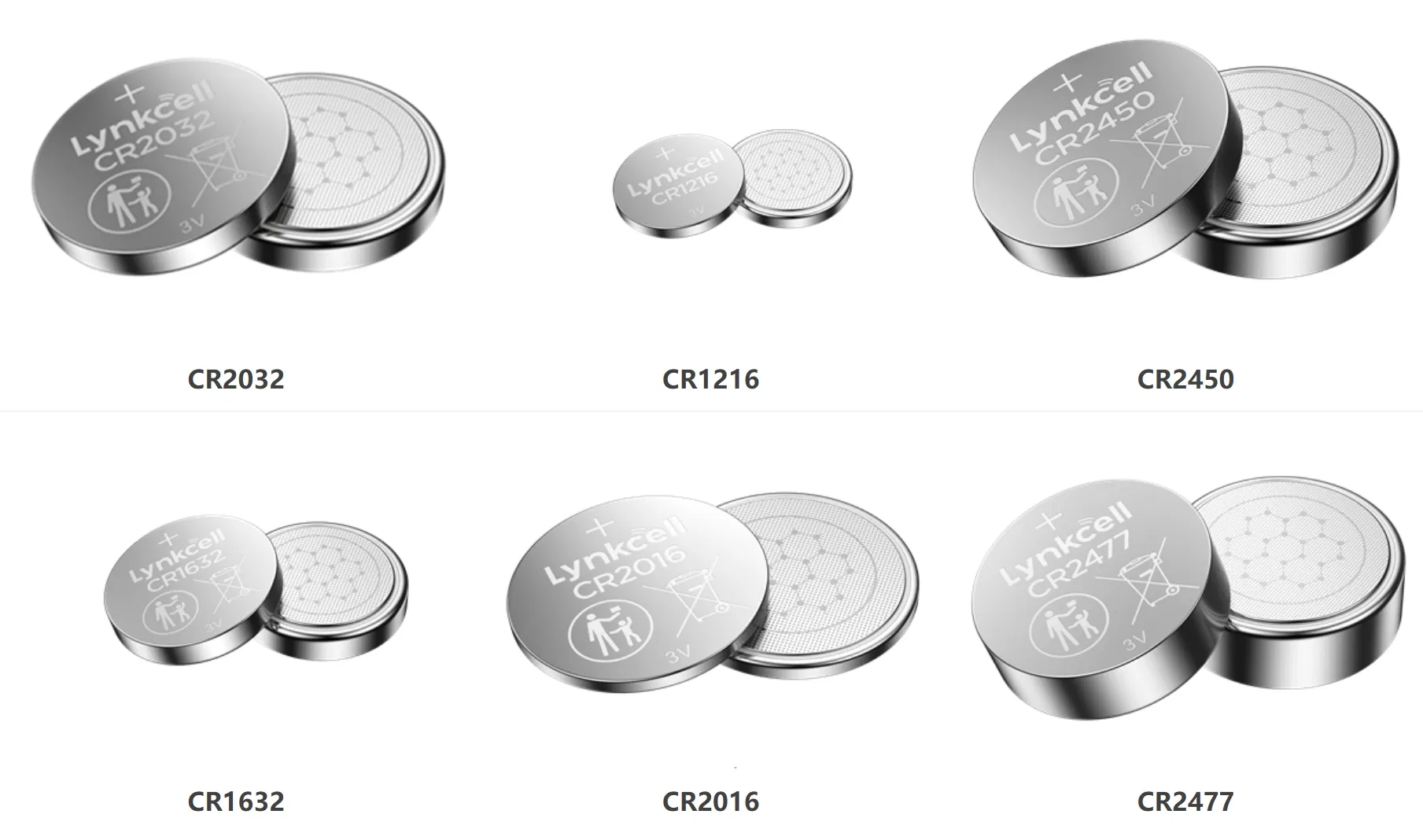

Main Product

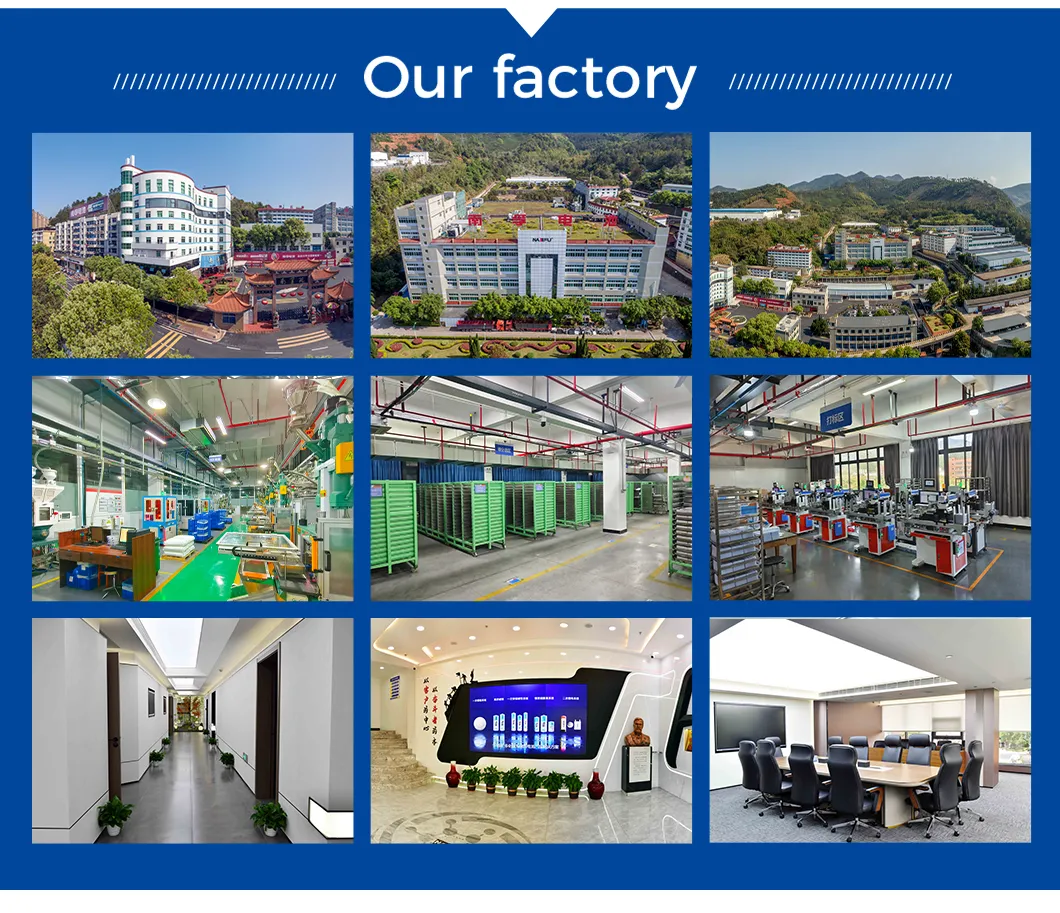

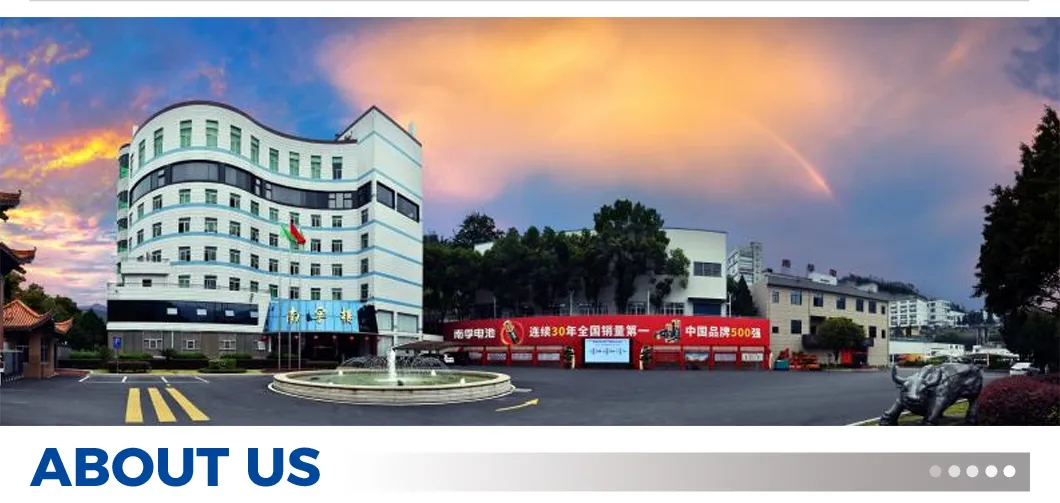

Company Profile
The company was founded in 1954 and has been focusing on the research and development of small batteries and non-rechargeable batteries. It has now become the top brand of non-rechargeable batteries in China. The company is a national key technology center, equipped with a provincial key laboratory for batteries, and also has a testing center certified by CNAS.
Certifications
Exhibition

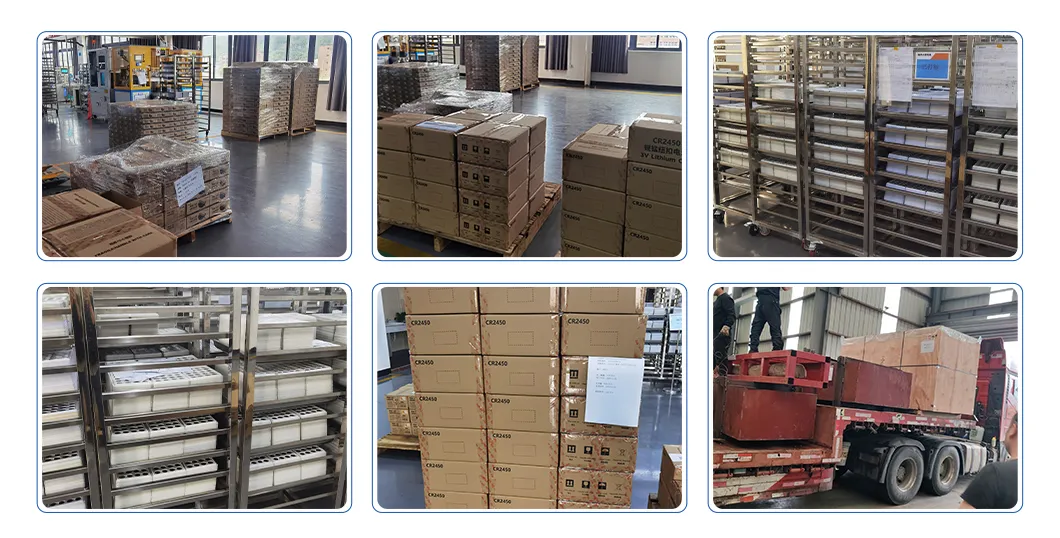

Packaging & Shipping
Matters Need Attention
- Handle the battery with care.
- The battery storage environment is subject to temperature and humidity control.
- The battery should be stored in a well-ventilated, shady and dry environment.
- There should be no heat sources (such as boilers, engines, etc.) near the battery storage area.
- The battery storage environment is clean and free of dust.
- Keep the battery storage and retrieval away from metal objects.
Frequently Asked Questions
What is the nominal voltage and capacity of the CR2450 battery?
The CR2450 battery features a nominal voltage of 3.0V and has a nominal capacity of 620mAh.
Is the CR2450 battery rechargeable?
No, the CR2450 is a non-rechargeable primary Lithium Metal (Li/MnO2) chemical cell.
What is the shelf life/storage duration of these batteries?
These batteries are engineered for an exceptional storage life of up to 10 years when kept under recommended conditions.
What are the recommended temperature limits for operating this battery?
The operating temperature range is wide, spanning from –30°C to +85°C, making it reliable for industrial applications.
How should CR2450 button cells be properly stored?
Store them in a clean, dust-free environment with temperature controlled at 20±5°C and relative humidity at 55±20% R.H., away from direct heat sources and metallic objects.
What are the standard weight and dimensions of the CR2450 cell?
The CR2450 cell has a typical weight of 6.6 grams and comes packaged according to standard packaging guidelines.
