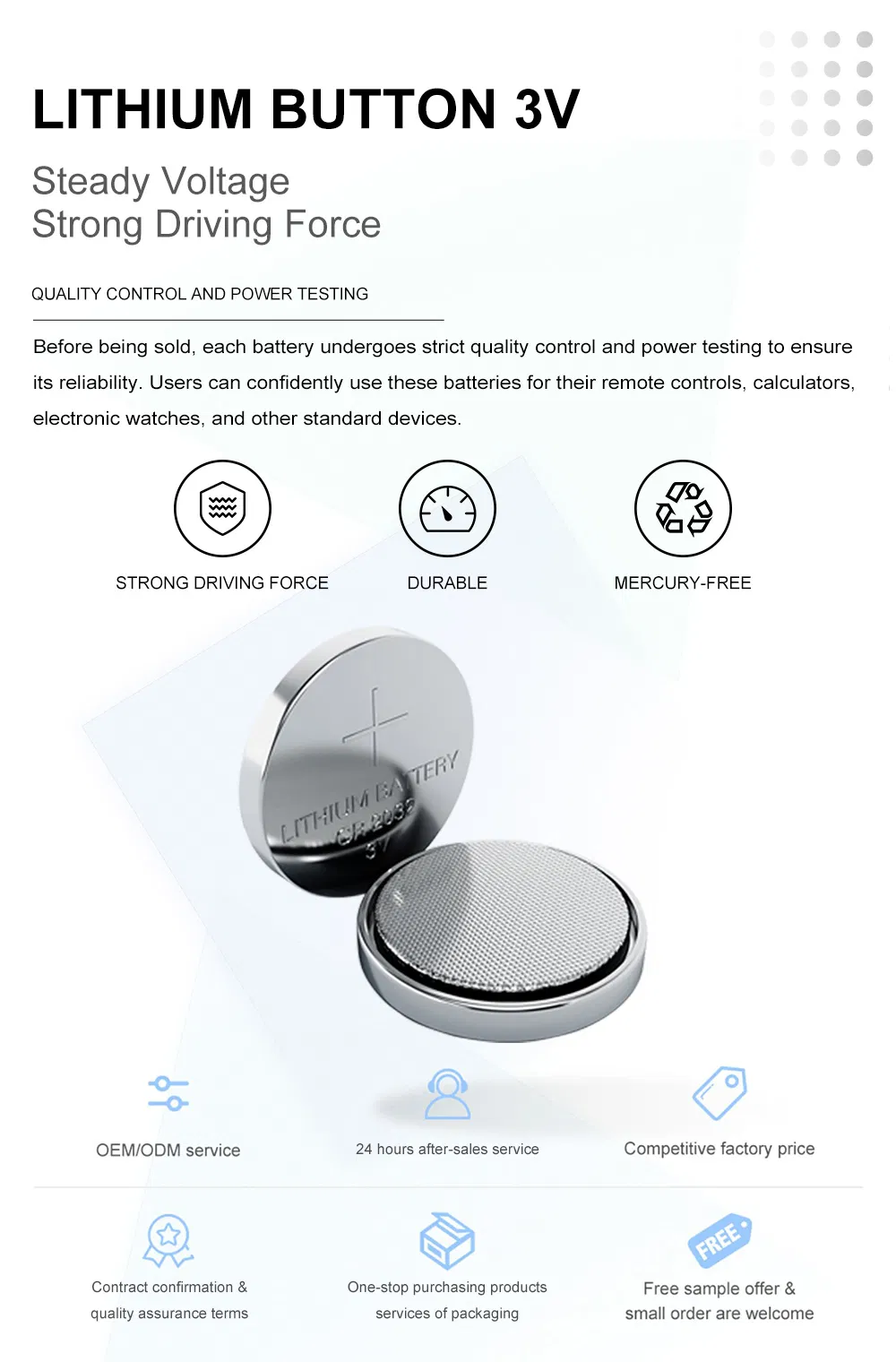

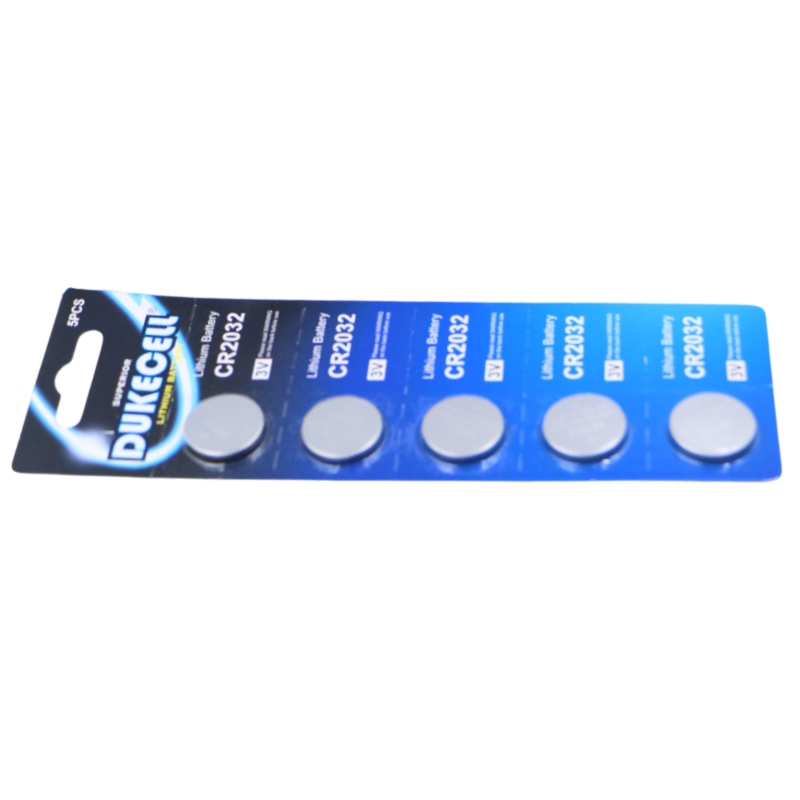

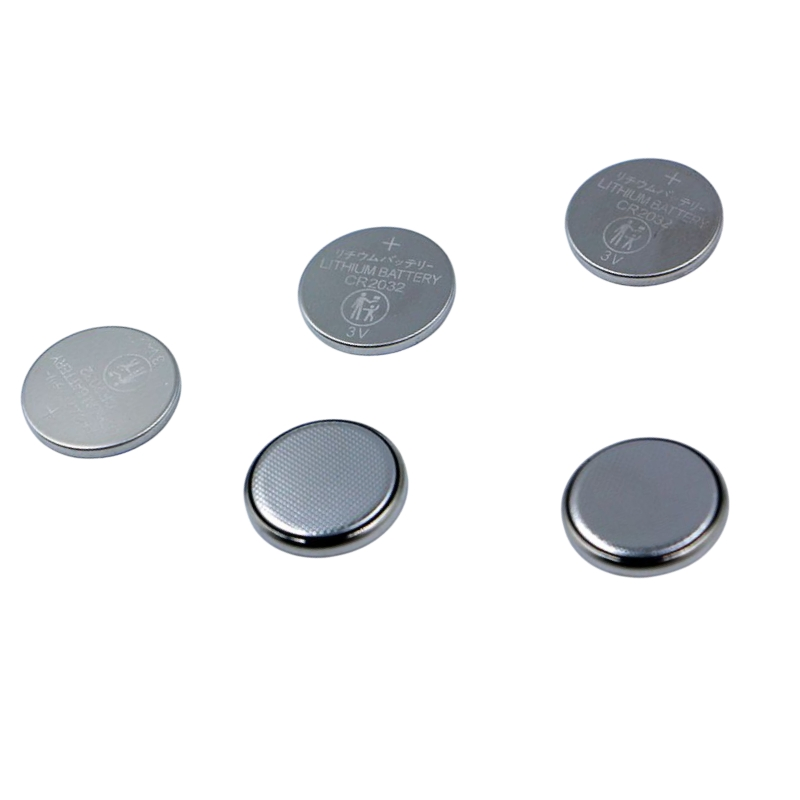

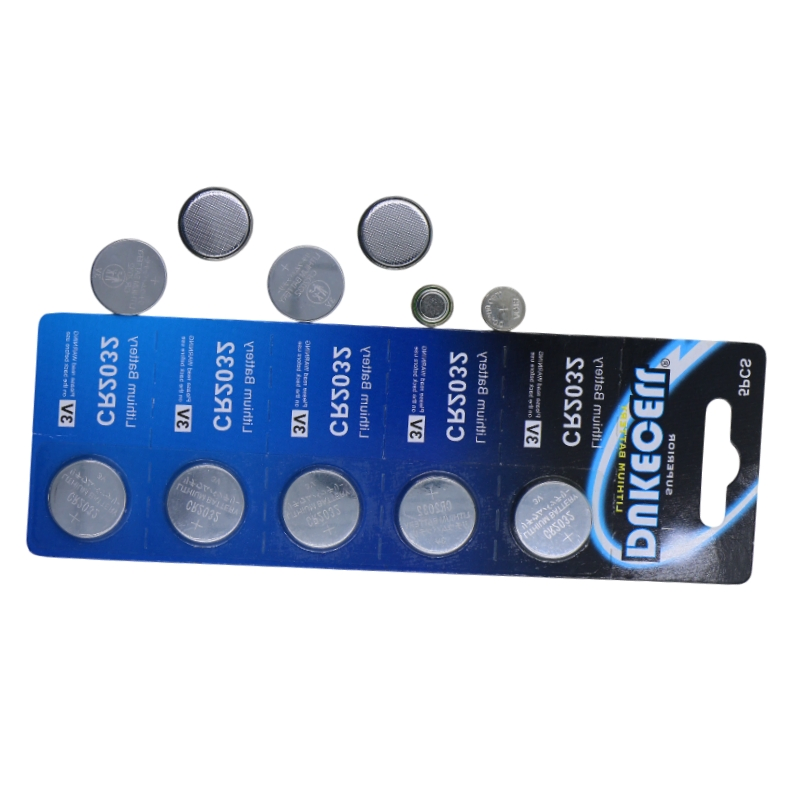

| LITHIUM BUTTON 3V CR2032/CR2025/CR2016 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| NO. | Lithium Button 3V | Quality | Capacity | Packing | MOQ for OEM(pcs) | PCS/BOX | PCS/CTN | GW-KGS | NW-KGS | CTN- cm |
| 1 | CR2032, 210mAh | normal | 210mAh | 5B | 100000 | 100 | 5000 | 28 | 27 | 39X26.5X33.5 |
| 2 | CR2025, 150mAh | normal | 150mAh | 5B | 100000 | 100 | 5000 | 26 | 25 | 39X26.5X33.5 |
| 3 | CR2016, 80mAh | normal | 80mAh | 5B | 100000 | 100 | 5000 | 25 | 24 | 39X26.5X33.5 |
| 4 | CR2032,210mAh | normal | 210mAh | 1B | 20000 | 100 | 1000 | 3.8 | 2.8 | 32.5X27.5X19 |
| 5 | CR2025,150mAh | normal | 150mAh | 1B | 20000 | 100 | 1000 | 3.5 | 2.5 | 32.5X27.5X19 |
| 6 | CR2016,80mAh | normal | 80mAh | 1B | 20000 | 100 | 1000 | 3.2 | 2.2 | 32.5X27.5X19 |
| Summary of CR battery specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Serial number | Model | Size (mm) | Resistance (kΩ) | GB Requirements (h) | Specifications (h) | Capacity (mAh) | Weight (g) | |||
| Diameter | Height | Initial period | Shelf life | Initial period | Shelf life | |||||
| 1 | CR927 | 9.5(-0.2) | 2.7(-0.2) | 68 | - | - | 660 | 640 | 30 | 0.6 |
| 2 | CR1216 | 12.5(-0.3) | 1.6(-0.3) | 62 | 480 | 470.4 | 488 | 471 | 25 | 0.7 |
| 3 | CR1220 | 12.5(-0.3) | 2.0(-0.3) | 62 | 700 | 686 | 750 | 720 | 35 | 0.8 |
| 4 | CR1225 | 12.5(-0.3) | 2.5(-0.3) | 62 | - | - | 950 | 900 | 45 | 0.9 |
| 5 | CR1616 | 16.0(-0.3) | 1.6(-0.3) | 30 | 480 | 470.4 | 490 | 470.4 | 45 | 1.2 |
| 6 | CR1620 | 16.0(-0.3) | 2.0(-0.3) | 47 | 900 | 882 | 1000 | 950 | 70 | 1.4 |
| 7 | CR1632 | 16.0(-0.3) | 3.2(-0.3) | 30 | - | - | 1200 | 1100 | 120 | 2 |
| CR1632H | 16.0(-0.3) | 3.2(-0.3) | 30 | 1400 | 1300 | 135 | 2 | |||
| CR1632HT | 16.0(-0.3) | 3.2(-0.3) | 30 | 100 | 950 | 100 | 2 | |||
| 8 | CR2016 | 20.0(-0.3) | 1.6(-0.3) | 30 | 675 | 661.5 | 800 | 750 | 80 | 1.7 |
| 9 | CR2025 | 20.0(-0.3) | 2.5(-0.3) | 15 | 540 | 529.2 | 750 | 710 | 150 | 2.5 |
| 10 | CR2025H | 20.0(-0.3) | 2.5(-0.3) | 15 | 540 | 529.2 | 830 | 785 | 165 | 2.6 |
| 11 | CR2032 | 20.0(-0.3) | 3.2(-0.3) | 15 | 920 | 901.6 | 1000 | 950 | 210 | 3 |
| 12 | CR2032H | 20.0(-0.3) | 3.2(-0.3) | 15 | 920 | 901.6 | 1250 | 1200 | 240 | 3.1 |
| 13 | CR2320 | 23.0(-0.3) | 2.0(-0.3) | 15 | 590 | 578.2 | 800 | 750 | 158 | 2.9 |
| 14 | CR2330 | 23.0(-0.3) | 3.0(-0.3) | 15 | 1320 | 1293.6 | 1320 | 1293.6 | 250 | 3.8 |
| 15 | CR2354 | 23.0(-0.3) | 5.4(-0.3) | 7.5 | 1260 | 1234.8 | 1260 | 1234.8 | 500 | 6.4 |
| 16 | CR2430 | 24.5(-0.3) | 3.0(-0.3) | 15 | 1300 | 1274 | 1400 | 1300 | 280 | 4.3 |
| 17 | CR2450 | 24.5(-0.3) | 5.0(-0.3) | 7.5 | 1200 | 1276 | 1450 | 1370 | 580 | 6.8 |
| 18 | CR3032 | 30.0(-0.3) | 3.2(-0.3) | 7.5 | 1250 | 1225 | 1250 | 1225 | 500 | 6.8 |
Absolutely. We've got a staggering production capacity of 10 billion batteries annually. No matter how large the volume of your order, we're prepared to deliver.
Yes, we do. We're fully equipped to produce customized battery products tailored to your brand's needs through our OEM services.
Of course! We're more than happy to provide potential B2B partners with samples for testing and evaluation.
Yes, we do. We can provide packaging and label design services based on your specific needs.

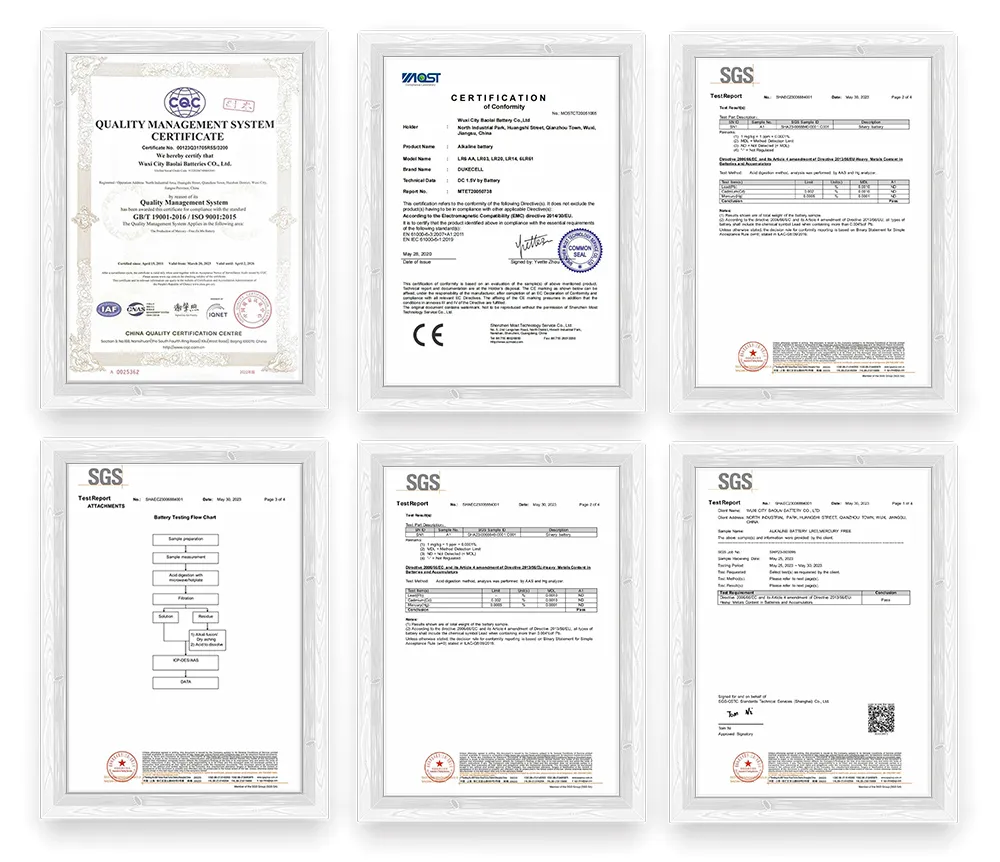

Yes, we do. Our batteries are sold worldwide and have earned certifications from the International Electrotechnical Commission (IEC), CE, ROHS, SGS, and ISO9001.
Our pricing varies based on the volume of the order and specific requirements. We do indeed offer discounts for large-scale orders. For a detailed pricing strategy, we recommend reaching out to our sales team.
