Home > Solid-state Battery > High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
1 / 5
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone

High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info
Model NO. 24S 44Ah
Rechargeable Yes
Size Large
Nominal Voltage 88.8V
Weight 14.5kg
Support Load Heavy 300kg
Duration of Flight 25min
Work Voltage 67.2-100.8V
Continuous Rate 2-3c
Peak Rate 10c
Transport Package Standard or OEM
Specification 300*200*125mm(L)
Trademark OEM
Origin China
Packaging & Delivery
Package Size 21.00cm * 26.00cm * 18.00cm
Package Gross Weight 14.900kg
Product Description
Applicable Scenarios

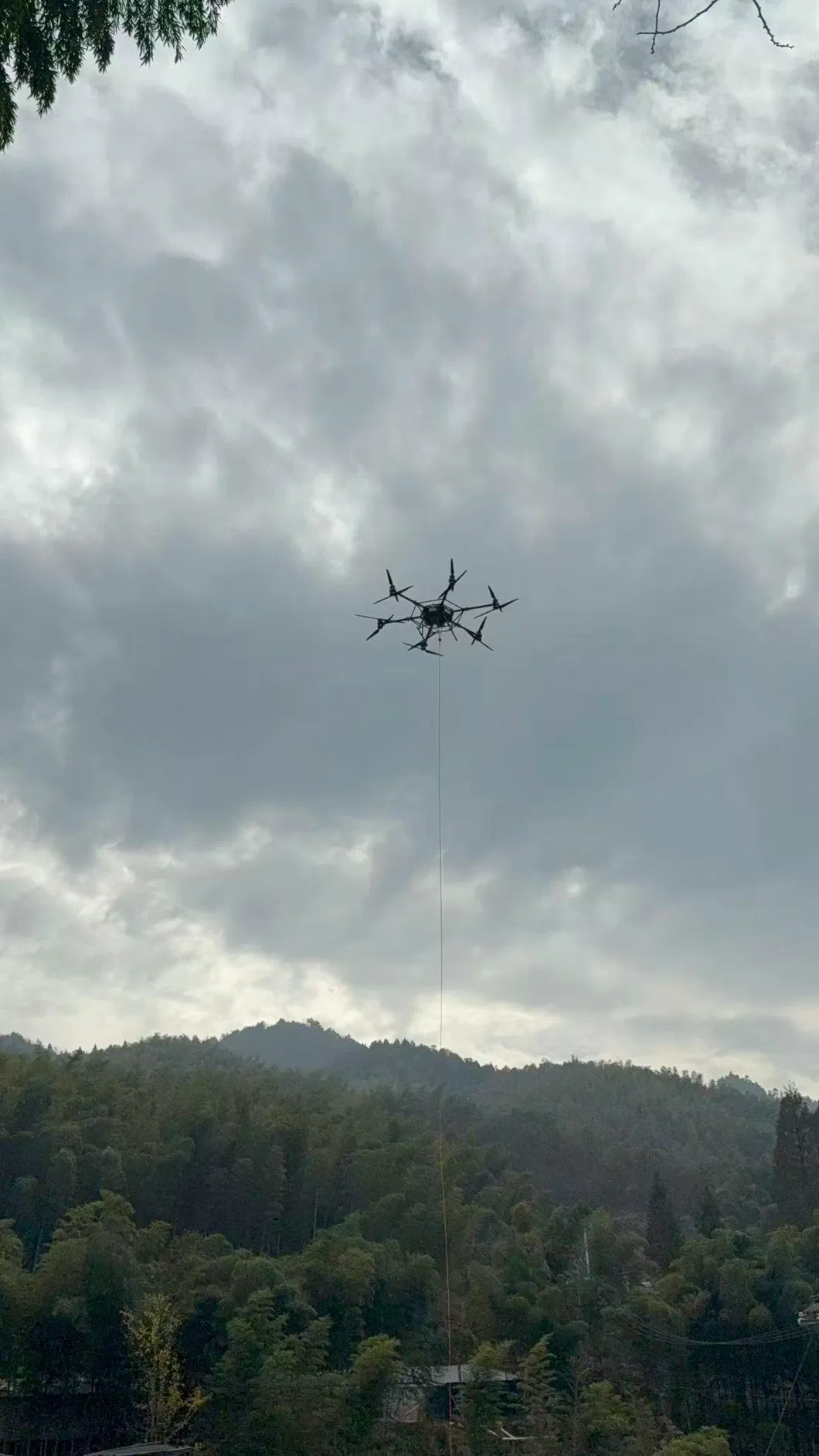

  • Ultra-large load capacity / heavy-duty industrial unmanned aerial vehicle platform
  • Long-distance logistics transportation, hoisting operations, special tasks
  • Continuous high-intensity operation, not suitable for frequent battery replacement conditions
  • Equipment with extremely high requirements for system efficiency, continuous power output and stability
Core Advantages
  • 24S ultra-high voltage platform: Significantly increased voltage level, significantly reduced working current, lower line loss, higher system efficiency, more controllable overall heat generation.
  • 44Ah practical large capacity: Balances battery life and weight control under the ultra-high voltage platform. No need for frequent charging for multiple round trips, one battery can cover long-term tasks.
  • Supports continuous high-power output: Powerful take-off for heavy loads. Stable and reliable output during long-term operation.
  • Designed for industrial-grade reliability: High cell consistency, excellent temperature rise control. Satisfies commercial, engineering-level long-term, and high-intensity usage requirements.
Model 24S 44Ah
Nominal Capacity ≥44Ah
Nominal Voltage 3.7V (Per Cell) / 88.8V (Pack)
Charging Cut-Off Voltage 2.6V-4.2V
Discharge Cut-off Voltage 2.6V-4.2V
Configuration 24S1P/88.8V
Continuous Discharge Rate 2-3C (Peak discharge rate 10C)
Net Weight 15kg
Dimensions 300mm Length * 200mm Width * 125mm Thickness
Connector Type XT90S-F/AS150-F/…
Discharge Wire 10#/8# AWG
Charging Wire 22# AWG
Charge Rate 2C-3C Recommended, 3C Max
Long Cycle Life ≥800 (1C/3C)
Short Time Peak 10C(s)
High-Energy Density 310wh/kg

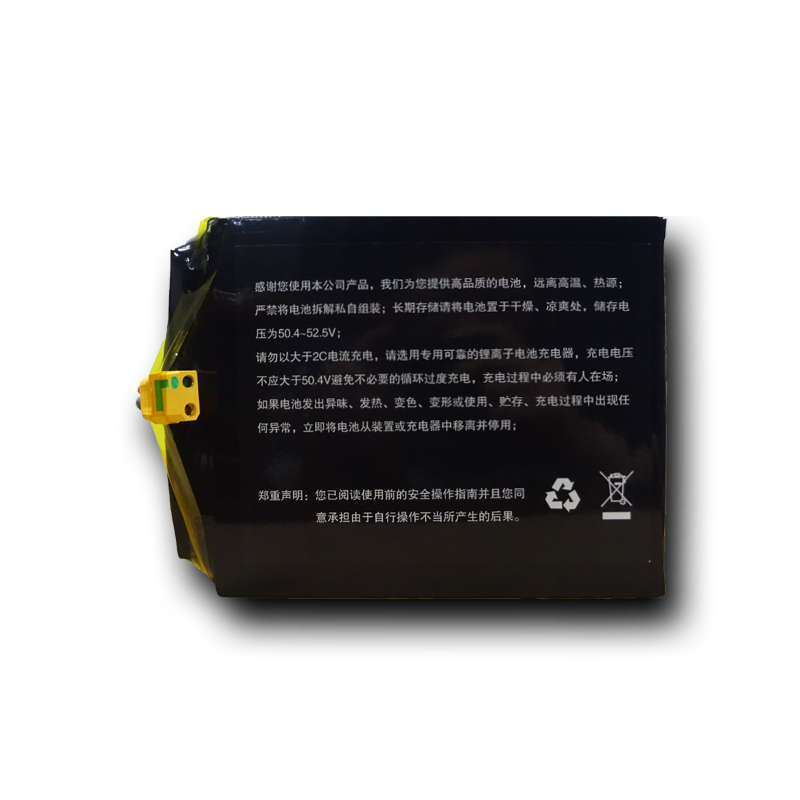

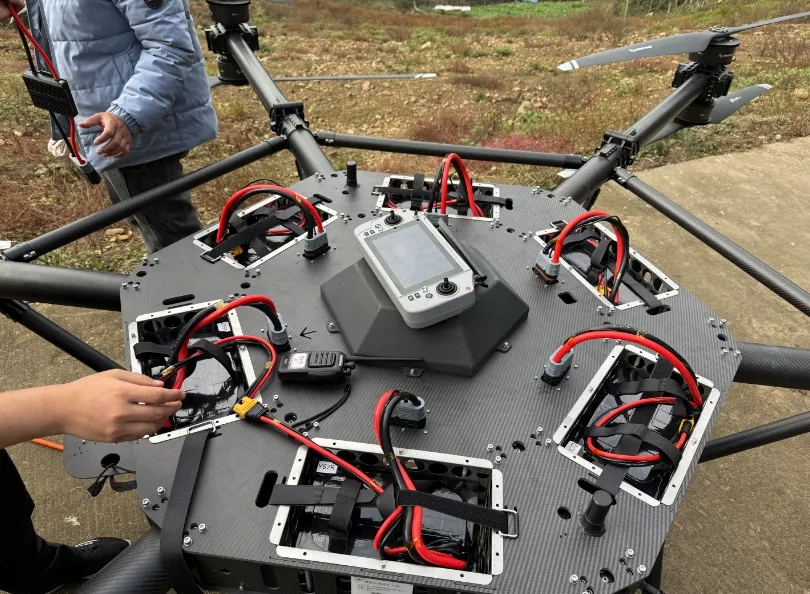

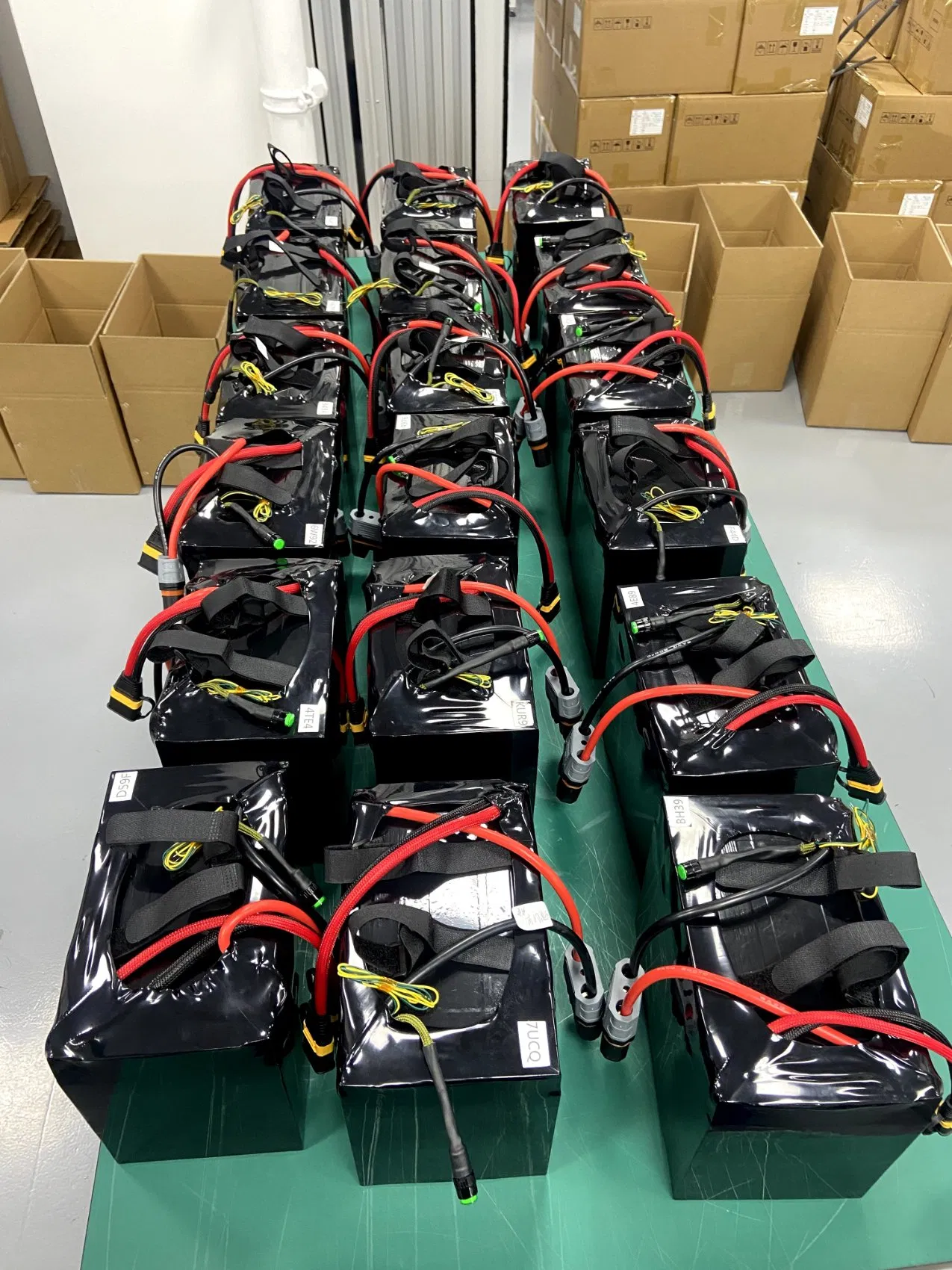

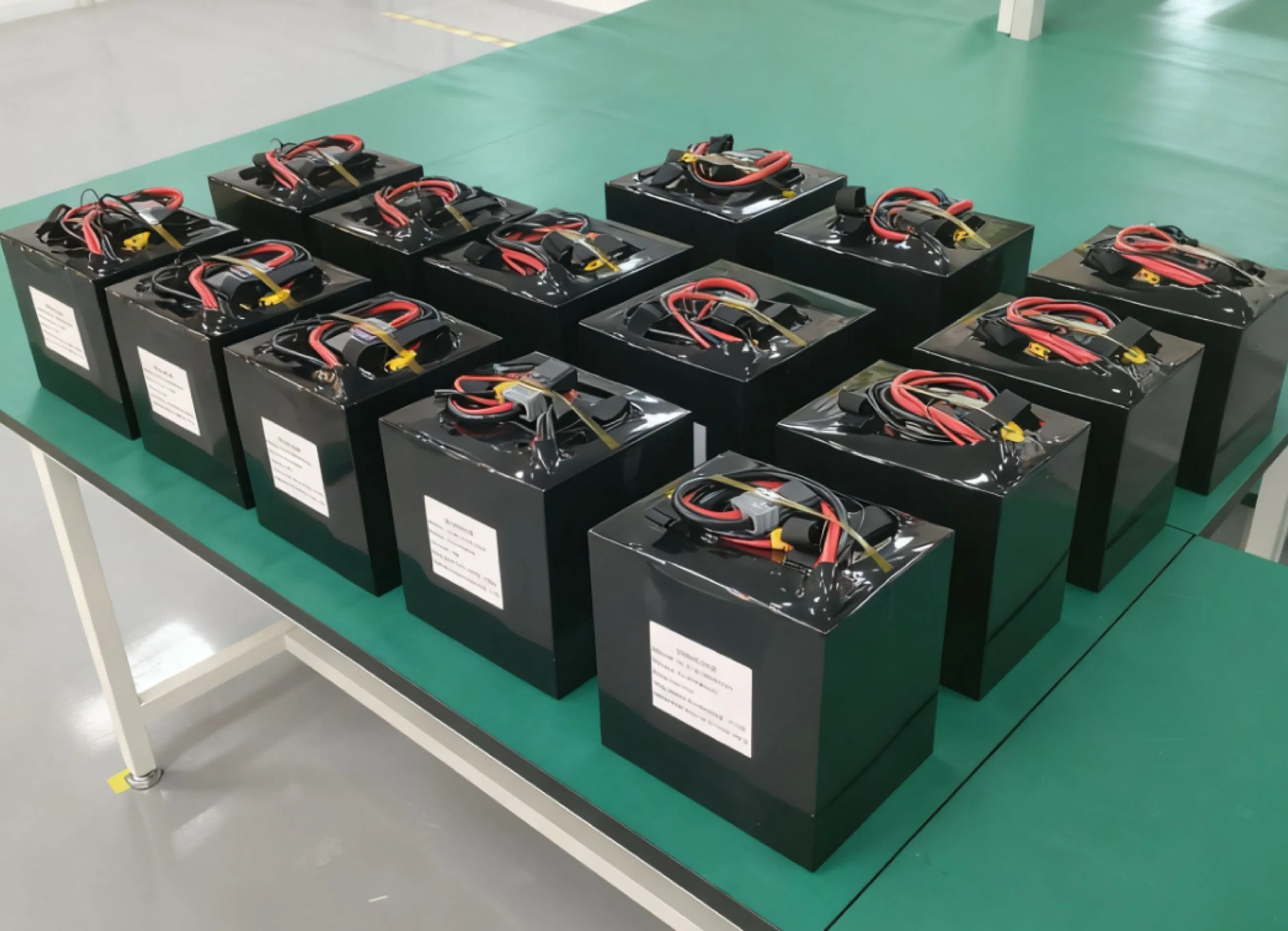

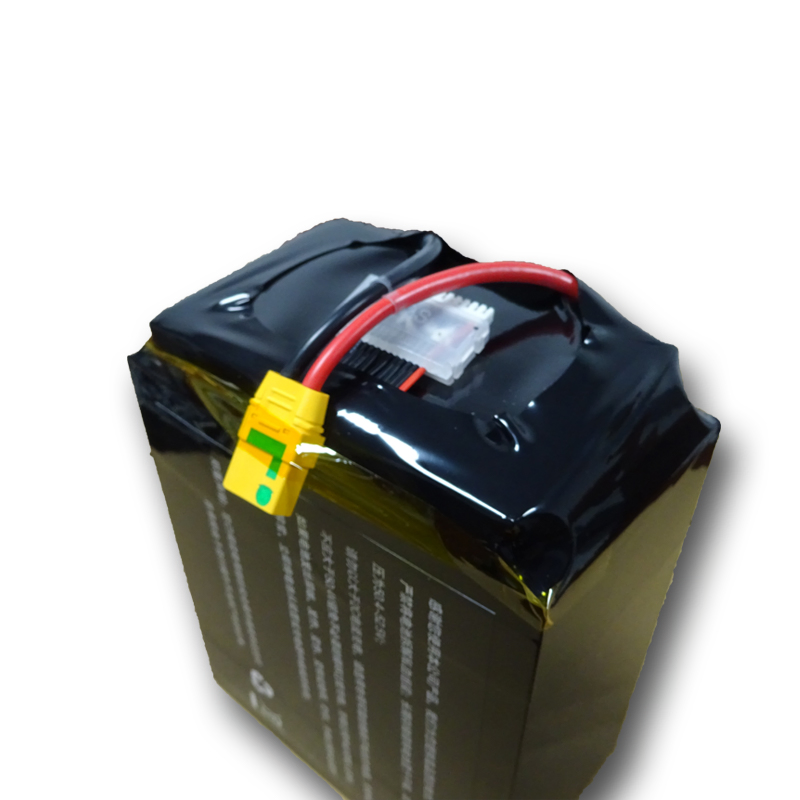

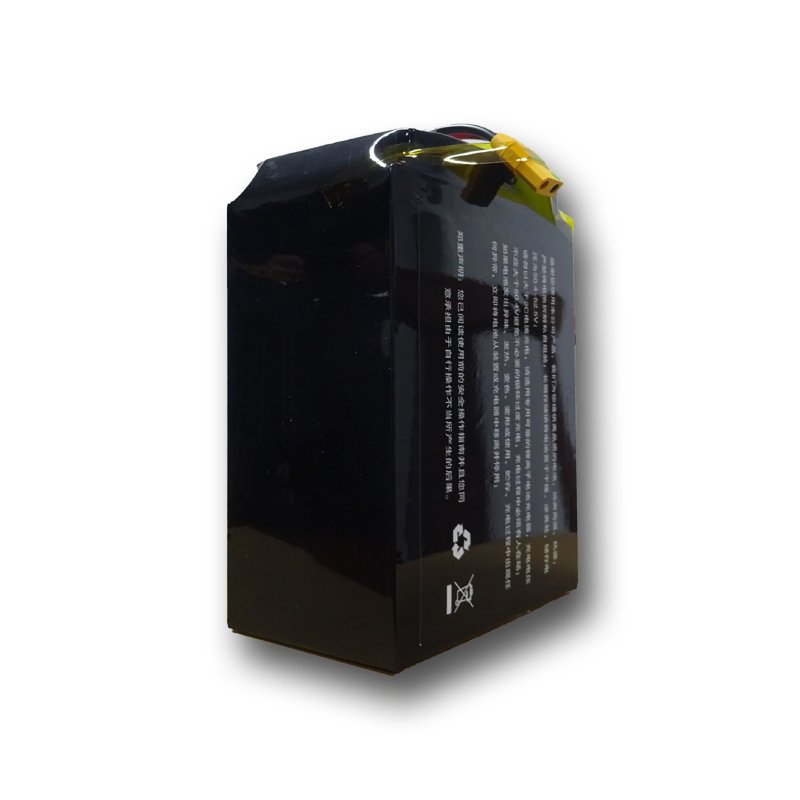

Detailed Photos
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
High Energy Density 24s 44ah Semi-Solid State Lithium Battery for Drone
Frequently Asked Questions
What applications are best suited for the 24S 44Ah drone battery?
This battery is optimized for heavy-duty industrial unmanned aerial vehicles (UAVs), long-distance logistics transportation, hoisting operations, and continuous high-intensity commercial operations requiring robust system stability.
What are the primary benefits of the 24S high-voltage platform?
The 24S high-voltage platform increases overall system voltage while lowering the working current. This design decreases line loss, improves system efficiency, and keeps heat generation during high-load operations under control.
What is the energy density and weight of the battery?
The battery features an energy density of up to 310 Wh/kg, offering an exceptional balance of weight and performance at approximately 14.5kg to 15kg.
What discharge rates does this battery support?
It supports a continuous discharge rate of 2C to 3C, with a capability for peak discharge rates up to 10C for high-power demands.
How long is the expected cycle life of the battery?
Under standard 1C charging and 3C discharging cycles, this battery is built to maintain a cycle life of ≥800 cycles, ensuring long-term commercial reliability.
