EV 3.2V 280ah Grade LiFePO4 Solid State Lithium Ion Battery Cell for Solar Home Energy Storage with 10000 Cycles

1 / 5

EV 3.2V 280ah Grade LiFePO4 Solid State Lithium Ion Battery Cell for Solar Home Energy Storage with 10000 Cycles

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

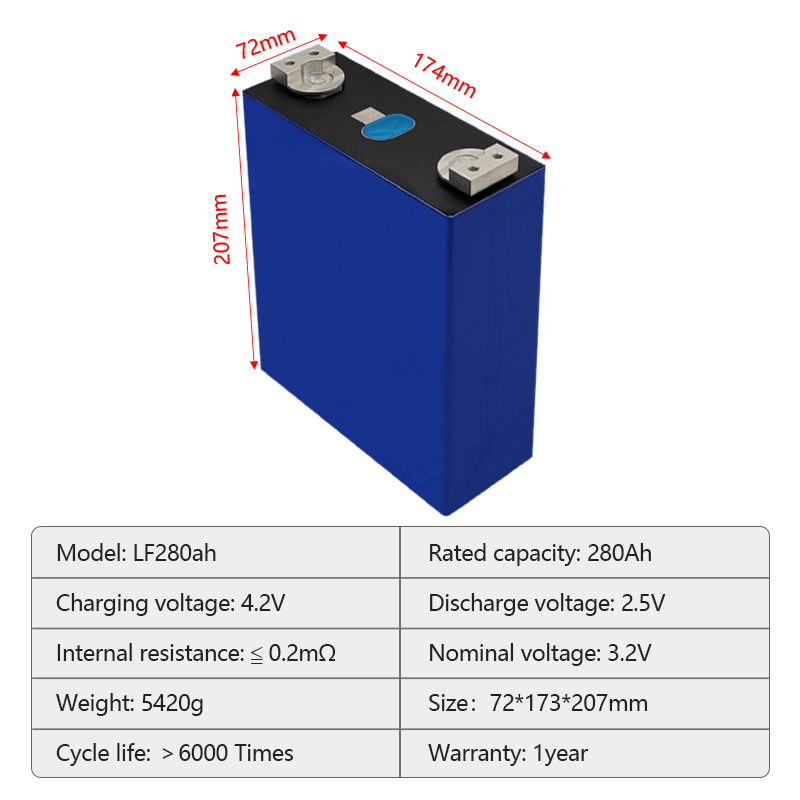

Basic Specifications

Model NO.

EV LF280ah

Rechargeable

Yes

Size

17.3X7.2X20.7 Cm

Warranty

1 year

Cycle Life

8000 Times

Anode Material

LFP

Weight

5400g

Product Name

3.2V 280ah LiFePO4 Battery Cell

Capacity

280ah

Voltage

3.2V

Application

Solar Energy System Battery Cell

Operating Temperature(℃)

-30~60℃

Electric Energy

896 Wh

Application Type

Home Appliances

Transport Package

42*25*30cm

Specification

17.3X7.2X20.7 cm

Trademark

Other

Origin

Guangdong, China

HS Code

8507600090

Production Capacity

500000 Pieces/Month

Packaging & Delivery

Package Size

7.20cm * 17.30cm * 20.70cm

Package Gross Weight

5.400kg

System Design & Assembly Note:

Before placing an order, please verify the quantity required for your system:

For a 48V system, you will need 16 pieces.
For a 24V system, you will need 8 pieces.
For a 12V system, you will need 4 pieces.

Suitable for Systems: 12V 24V 48V 72V 96V 108V... Solar Energy Storage System.
Applications: Backup power for home energy storage systems, campers, RVs, yachts, etc.
Shipping Priority: These RTS (Ready to Ship) products allow you to select the quantity and make payment directly. RTS orders will be given priority in shipping.

Recommend Products

Brand	Model Number	V & Ah	Impedance Resistance (mΩ)	Weight (kg)	Details
CATL	CATL 50AH	3.7V 50Ah	≤2.0	1.38	More
	CATL 120AH	3.2V 120Ah	≤0.7	2.86	More
	CATL 156AH	3.2V 156Ah	≤0.5	3.4	More
	CATL 173AH	3.2V 173Ah	≤0.5	3.1	More
	CATL 176AH	3.2V 176Ah	≤0.5	4.06	More
	CATL 200AH	3.2V 200Ah	≤0.25	3.84	More
	CATL 228AH	3.2V 228Ah	≤0.25	4.5	More
	CATL 271AH	3.2V 271Ah	≤0.3	5.4	More
	CATL 280AH	3.2V 280Ah	≤0.3	5.34	More
	CATL 302AH	3.2V 302Ah	≤0.2	5.35	More
	CATL 310AH	3.2V 310Ah	≤0.18	5.5	More
	CATL 314AH	3.2V 314Ah	≤0.18	5.5	More
	CATL 320AH	3.2V 320Ah	≤0.19	5.45	More
	CATL 340AH	3.2V 340Ah	≤0.18	5.55	More

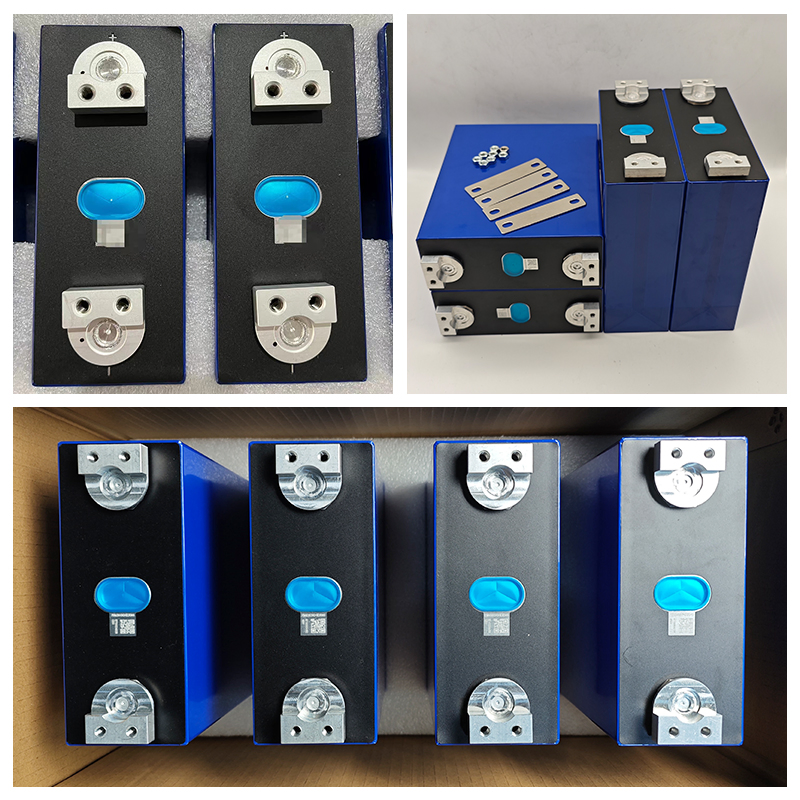

Product Details & Packaging Showcase

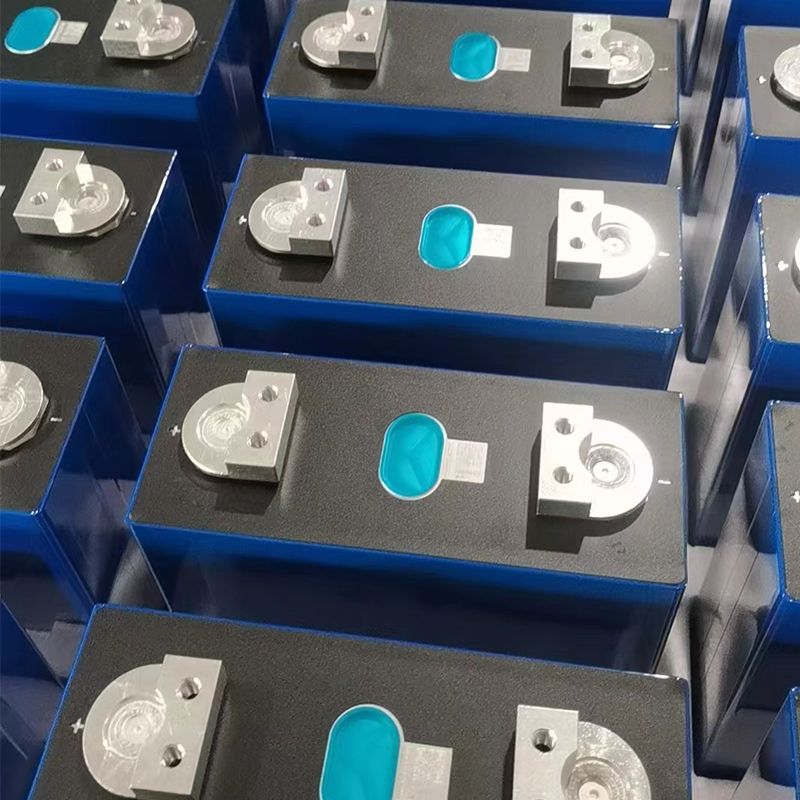

EV 3.2V 280ah Grade LiFePO4 Solid State Lithium Ion Battery Cell for Solar Home Energy Storage

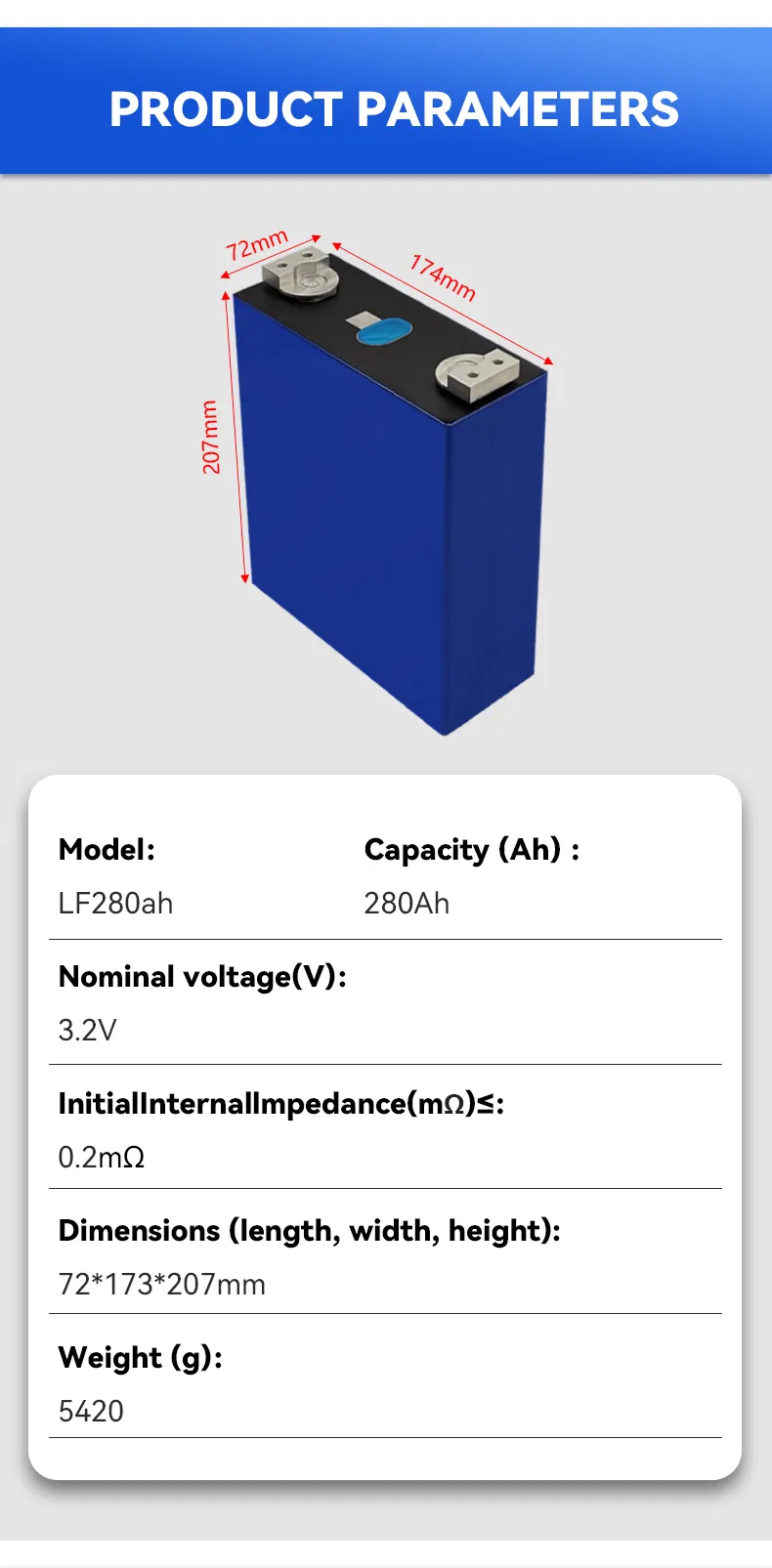

EV 3.2V 280ah Grade LiFePO4 Battery Cell Specification Details

LiFePO4 Lithium Ion Battery Cycle Life and Performance Graph

Solar Home Energy Storage Application Reference

Grade LiFePO4 Solid State Battery Safety Design

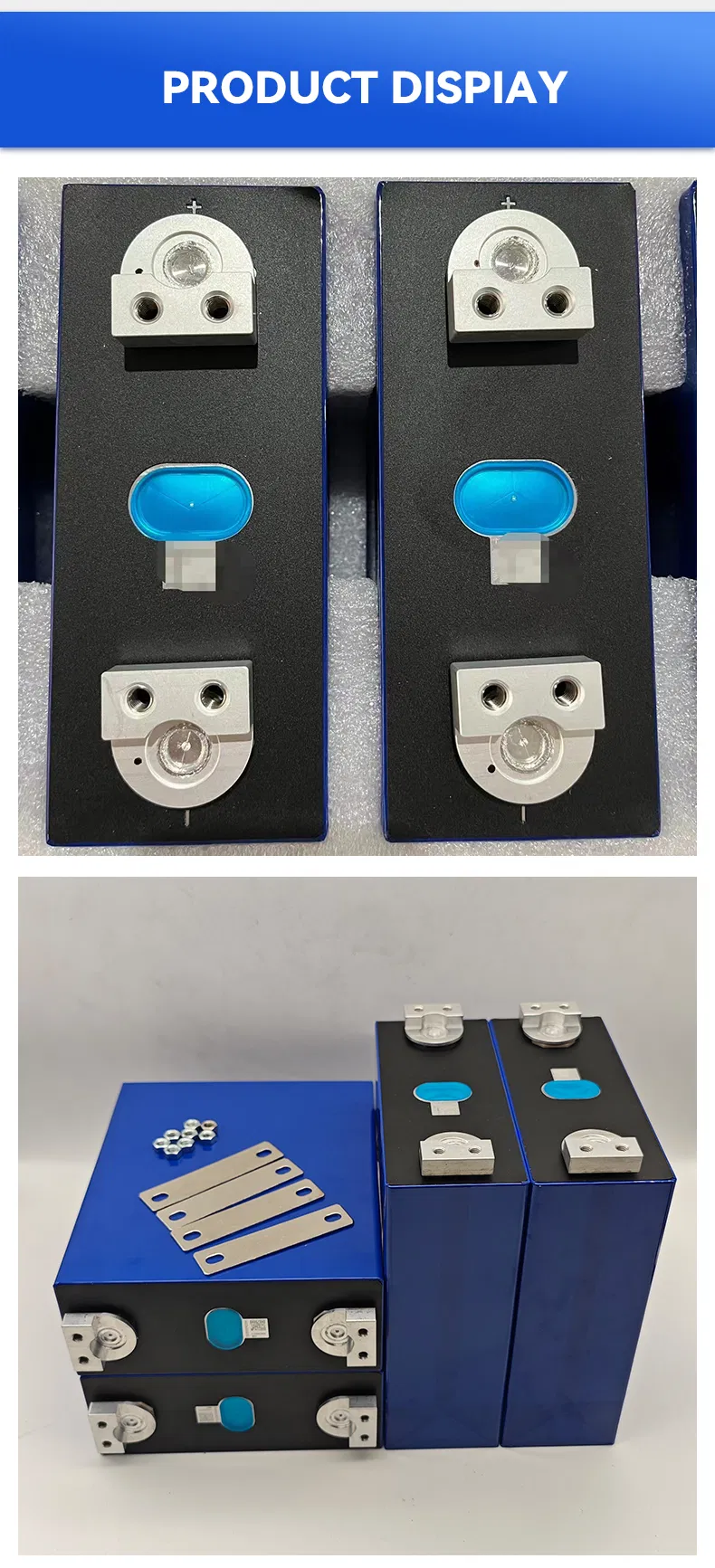

Internal Battery Cell Structure and Quality Testing

LiFePO4 Solid State Lithium Ion Cell Application Scenarios

Packaging Standards

Protective Buffer: Use high hardness custom sponge to strengthen and protect the batteries.
Outer Case: Packed in 5 layers of dangerous goods export corrugated carton.
Insulation: Paste positive and negative insulation tape on all connection terminals.
QC Labeling: We will label actual test data on each cell before delivery.
Optional Protection: Custom wooden crate packing is available for shipping upon request.

Safe Carton Packaging Process for Lithium Battery Cells

Sturdy Wooden Crate Packing Option for Safe Sea/Air Freight

Important Advisory Tips

These items are prototype battery cells. They do not contain an integrated protection board (BMS). You must purchase and configure a compatible BMS separately for safe operation. Placing an order implies full acceptance of these terms. Thank you for your cooperation!

Frequently Asked Questions

1. What preparation is required before assembling the DIY battery pack?

DIY battery packs must have their cells balanced (matched to the same voltage) before assembly. Please note that incorrect assembly configurations or a lack of understanding regarding assembly guidelines will invalidate return and refund options.

2. How do you handle missing or damaged items during shipment?

Please contact us immediately with photographic or video evidence. In the event of a lost cargo, damaged battery cell, or safety risk, we will coordinate to resend, replace, or issue a refund. For any customer-initiated returns, the buyer is responsible for return shipping costs.

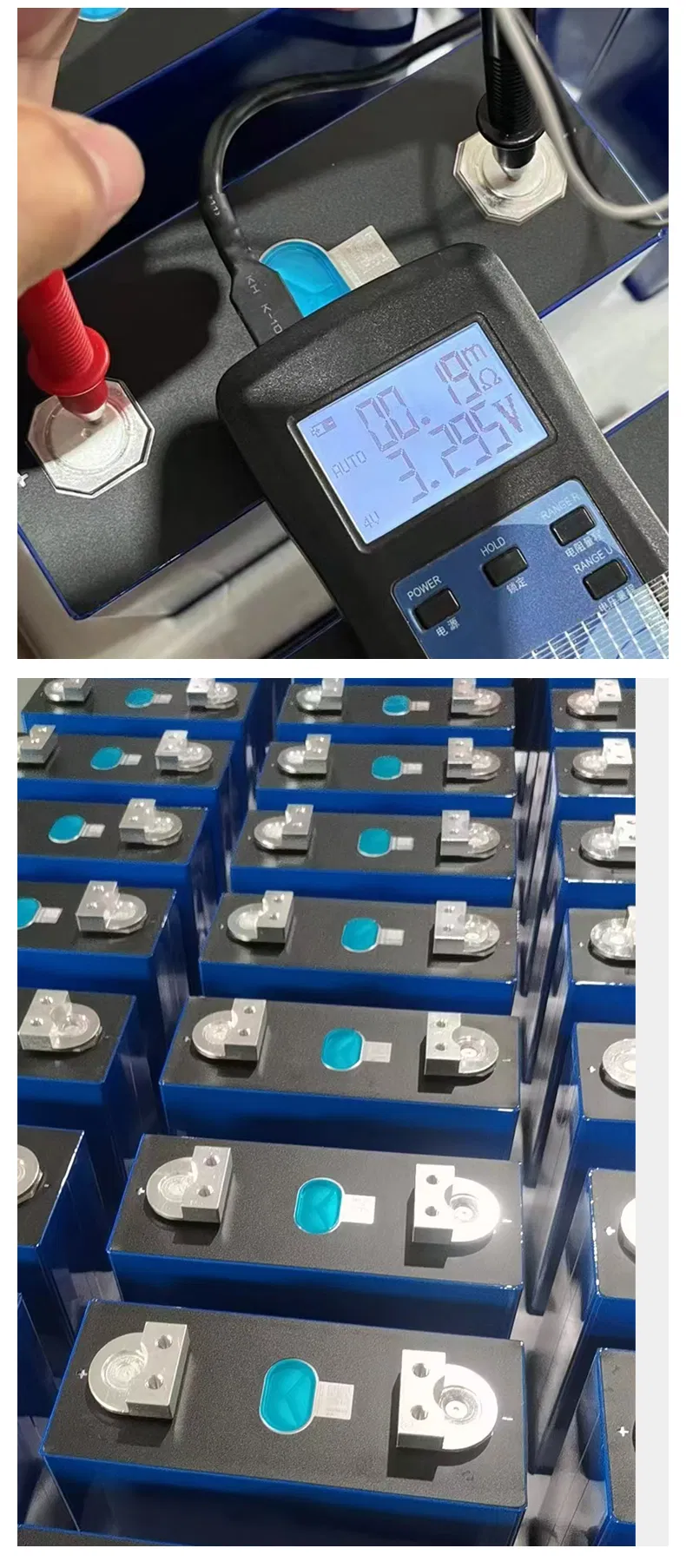

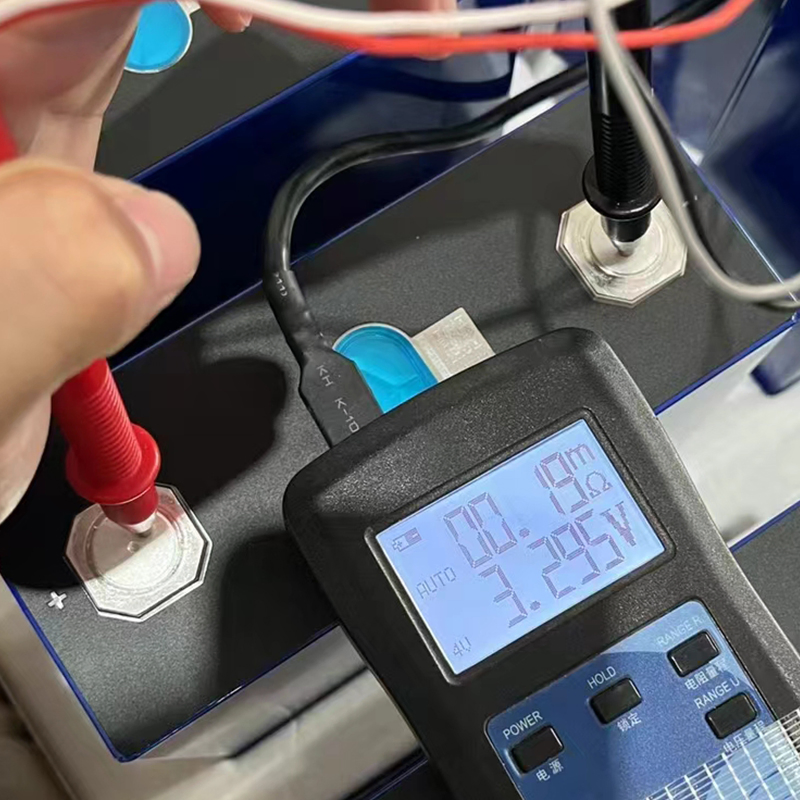

3. Do you test the battery cells prior to shipping?

Yes, each cell undergoes comprehensive testing:

Capacity Test: Within a 2% margin of error, ensuring it meets or exceeds nominal capacity.
Voltage: Deviation is kept under 0.01V.
Internal Resistance: Deviation is kept under 0.05mΩ.

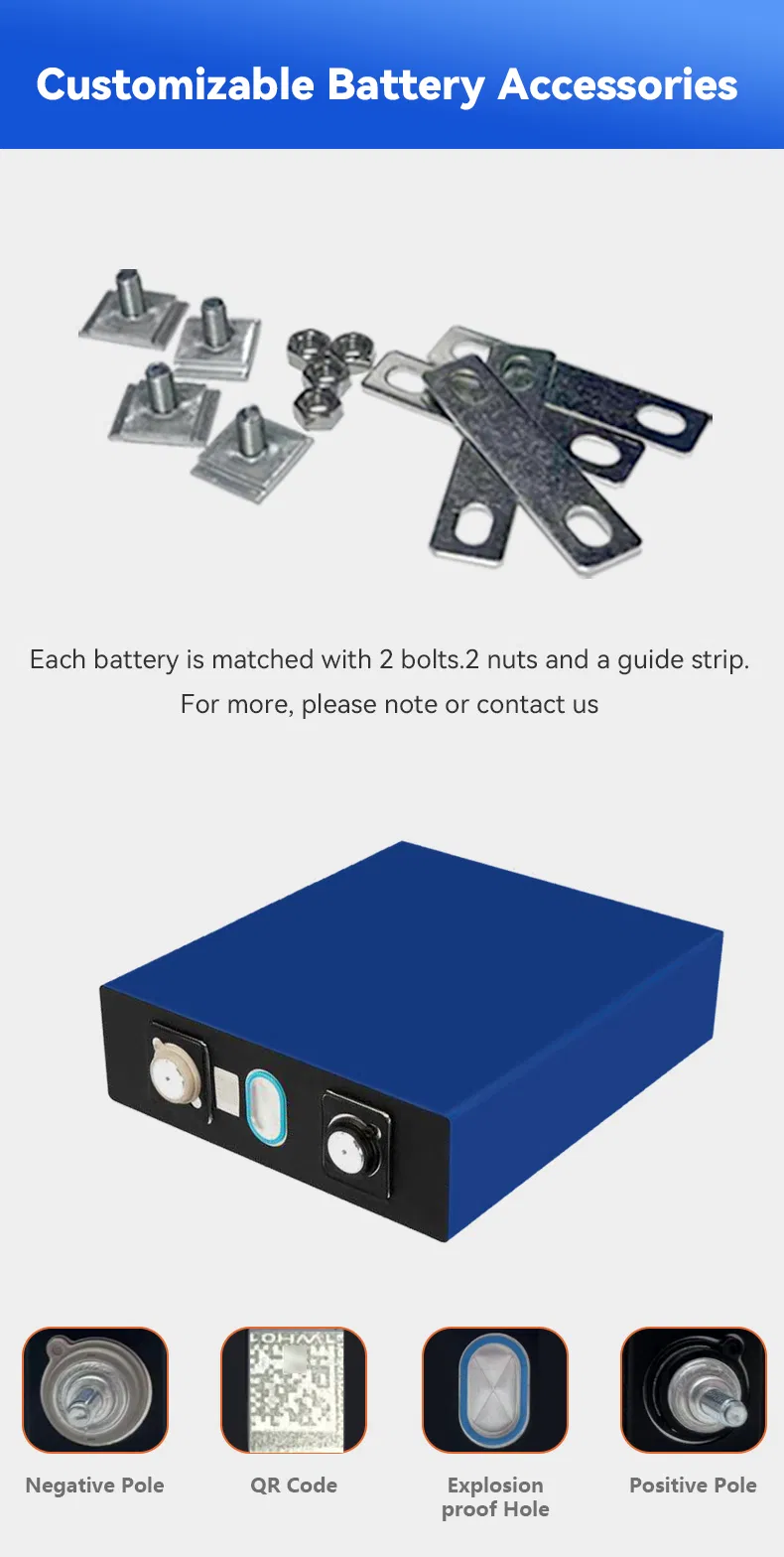

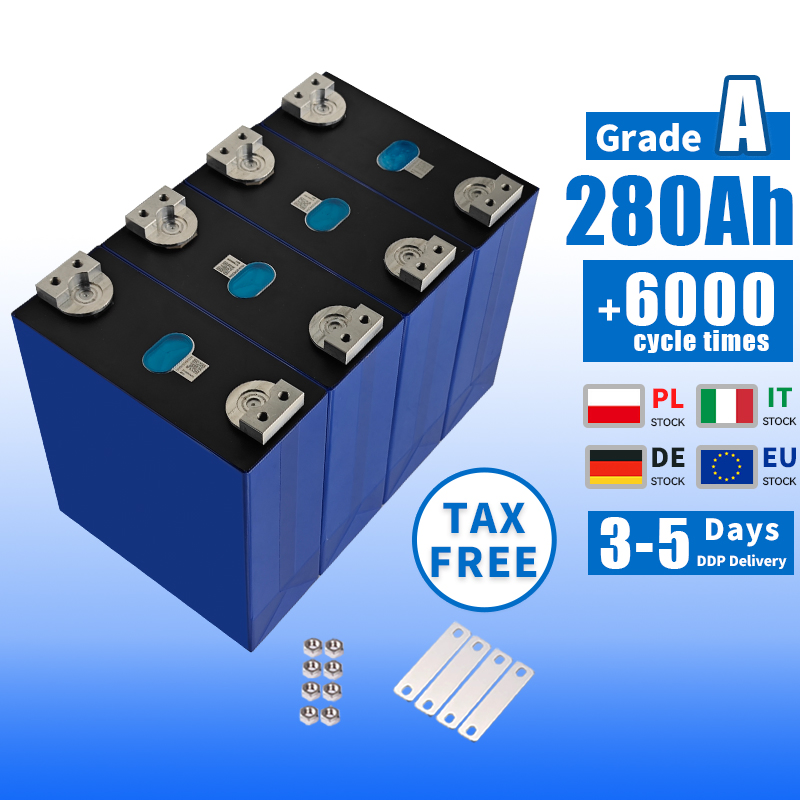

4. Do the battery cells come with busbars and bolts?

Yes, the battery cells come with busbars and bolts or studs included for free. Each single battery cell will be shipped with 1 busbar and 2 bolts or studs.

5. What situations do not qualify for a return or refund?

Returns and refunds are not provided under the following circumstances:

Damage occurred after or during the assembly process (e.g., BMS wired incorrectly leading to a short circuit, charger failure, incorrect configurations).
Physical damage, swelling, or cell deformation caused by charging without a protective BMS.

Batteries can only be returned in their original, unused state (electrodes intact, no welding, no wear, and in good physical appearance).

6. How can I place an order?

We accept trade assurance orders online. For RTS (Ready to Ship) products, if the shipping cost to your country is explicitly calculated or marked as free, you can proceed directly to checkout. Otherwise, you can submit your detailed shipping information to secure an online order layout.
