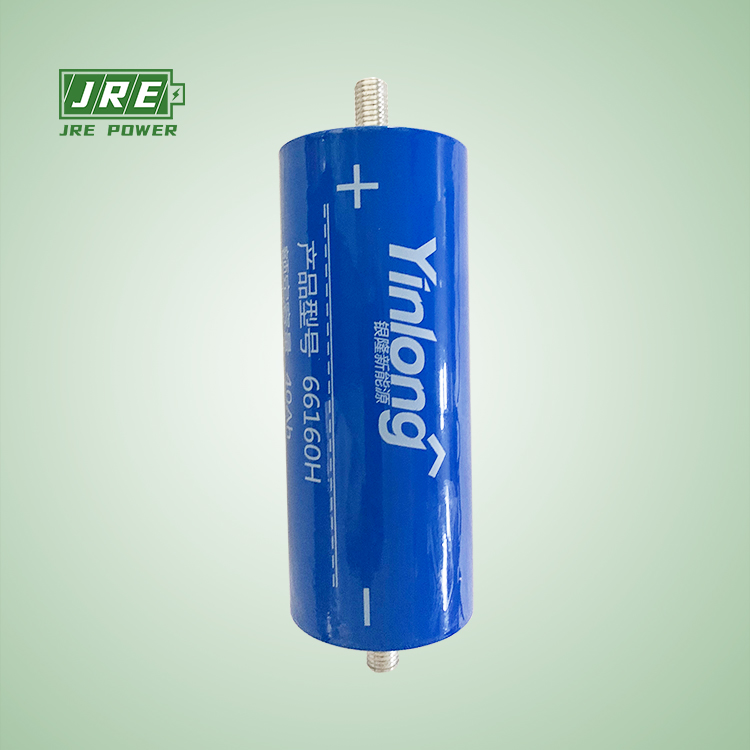

LTO 2.3V 40Ah 66160H Li4Ti5O12 Lithium Titanate Battery Cell

Product Description

2.3V 40Ah LTO Battery Cell
Product Description
2.3V 40Ah LTO Battery Cell

This 2.3V 40Ah rechargeable LTO battery which uses Li4Ti5O12 as cathode material. Lithium titanate battery can be widely used in solar energy storage systems, UPS, home energy storage systems, electrical vehicles, motorcycle starter, car starter, forklift, etc. LTO battery is a new type Li ion battery, has great performance at strong temperature resistance, high stability, fast charge, long cycle life and high safety.

Advantage of Lithium Titanate batteries (LTO battery):
  • Very long cycle life: Over 25,000 cycles.
  • Fast charge support: Supports fast charge compared with other lithium batteries. Charge and discharge @10C @100% DOD, after 25,000 cycles, still has 80% capacity left.
  • Wide working temperature: Works exceptionally well at both high and low temperatures, ranging from -50°C to 60°C.
  • High safety level: Extremely stable with no risk of fire or explosion.
  • Rechargeable & green: Highly efficient, eco-friendly energy storage.

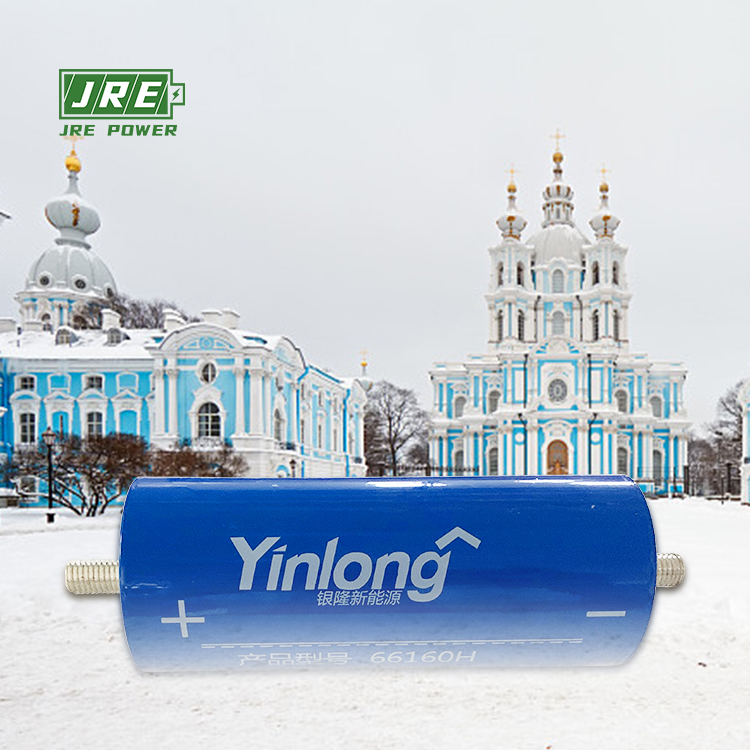

LTO Battery Cell Image 1
LTO Battery Cell Image 2

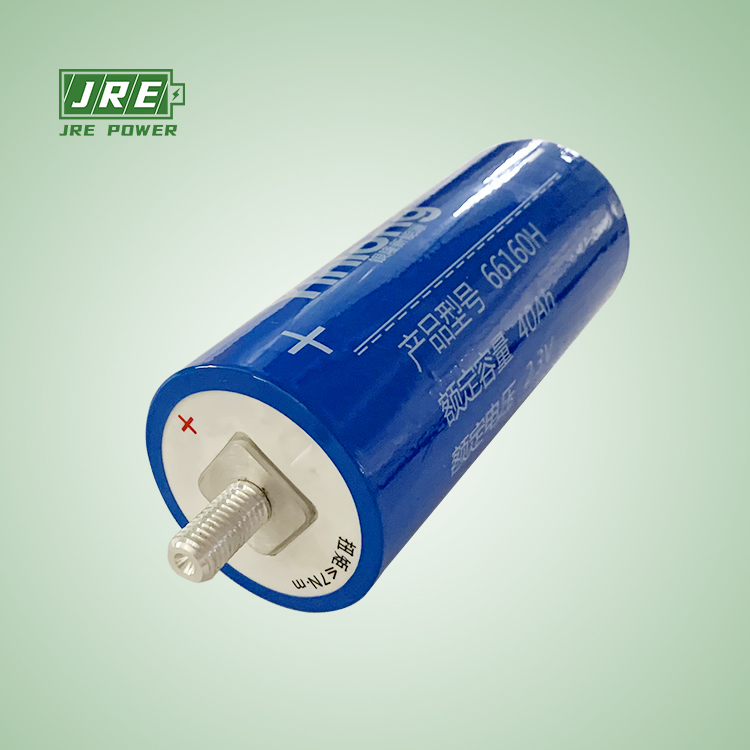

LTO Battery Cell Image 3
Specification
Item Value
Application Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Forklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Digital Products / Bluetooth / Smart Watch / GPS
Battery Size 2.3V 40Ah
Certification UN38.3
Place of Origin China, Guangdong
Weight 1.2±0.02kg
Product name 2.3V 40Ah LTO Battery Cell
Battery type Lithium Iron Battery Cell
Voltage 1.5~2.85V
Capacity 40Ah
Real Test capacity >40Ah
Size Dia: 66mm, H: 160mm
Material Li4Ti5O12 Lithium Iron Battery
Cycle life >25000 (100% DOD, 1C/1C)
Package 1pcs per carton with DG case
Shipping Express/Train/Sea
Packing & Delivery
Packing and Delivery
Frequently Asked Questions
What is the lifespan of this LTO battery cell?
This 2.3V 40Ah LTO battery cell offers an exceptionally long cycle life, supporting over 25,000 cycles at 100% Depth of Discharge (DOD) while still maintaining 80% of its initial capacity.
Does this LTO battery cell support fast charging?
Yes, compared to standard lithium batteries, LTO batteries support high-rate fast charging and discharging up to 10C rates due to the unique properties of the Li4Ti5O12 cathode material.
How do LTO batteries perform in extreme weather conditions?
LTO batteries exhibit outstanding thermal performance, operating efficiently in a wide temperature range from extremely cold temperatures of -50°C up to hot conditions of 60°C.
Are LTO batteries safe to use?
Yes, LTO chemistry provides a very high level of safety. It is highly stable and does not present the risk of fire or explosion under standard operation or puncture conditions.
What are the primary applications for this LTO cell?
This battery cell is ideal for solar energy storage systems, UPS, home energy storage, electric vehicles (EVs), forklifts, submarines, starter systems for cars/motorcycles, and various consumer electronics.
How is quality guaranteed before shipping?
Quality is ensured by analyzing a pre-production sample before starting mass production, followed by a rigorous final inspection of all battery cells prior to packaging and shipment.
