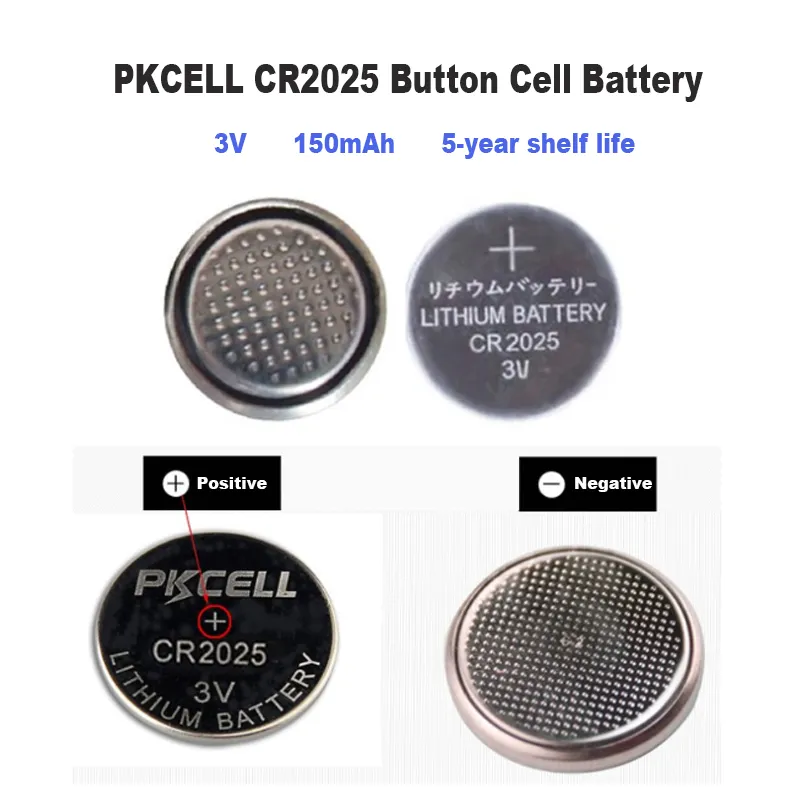

| Parameter | Details Specification |
|---|---|

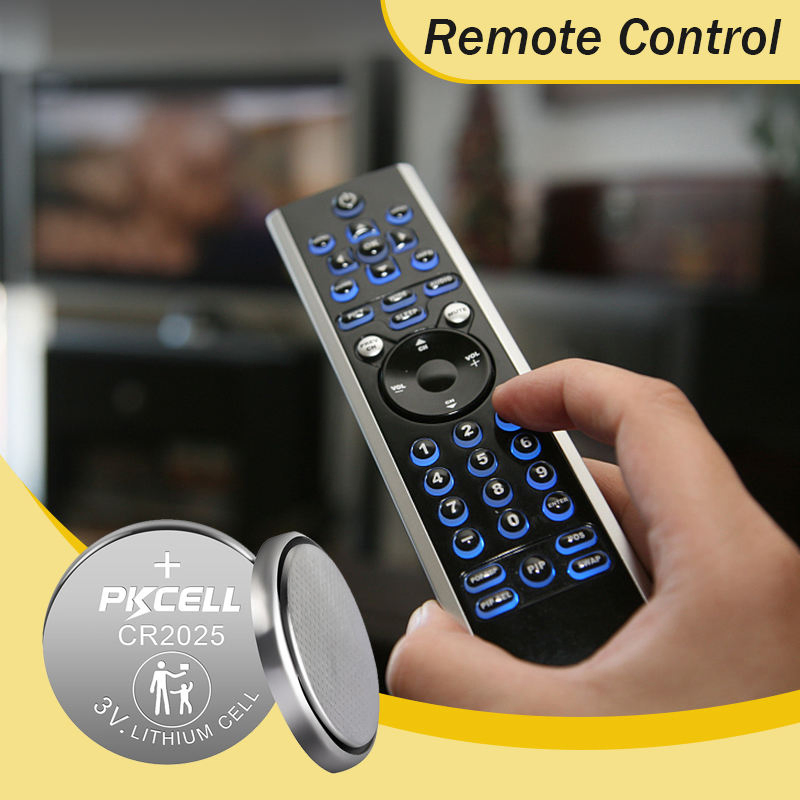

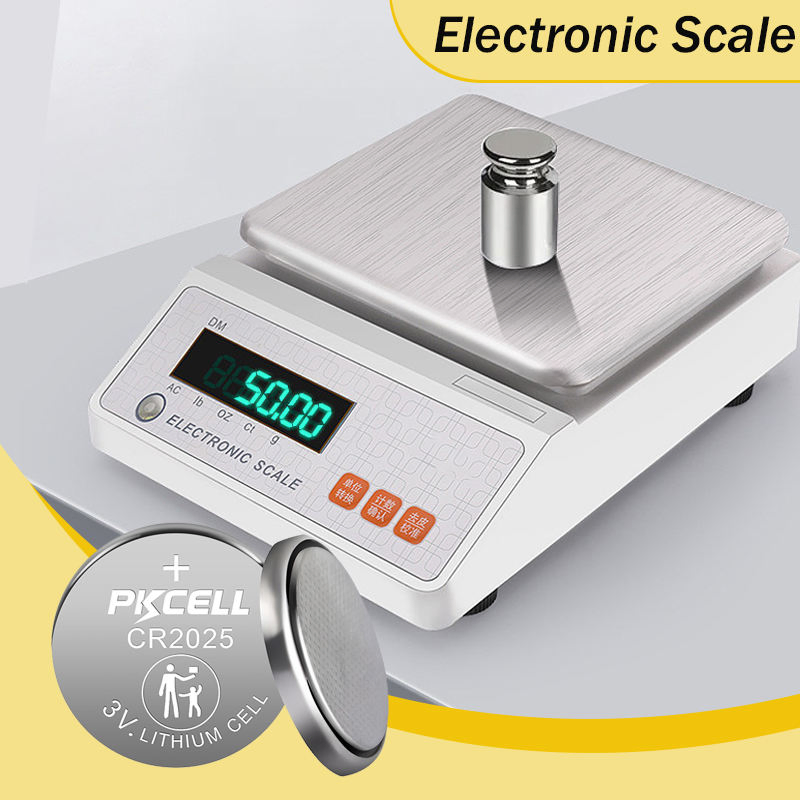

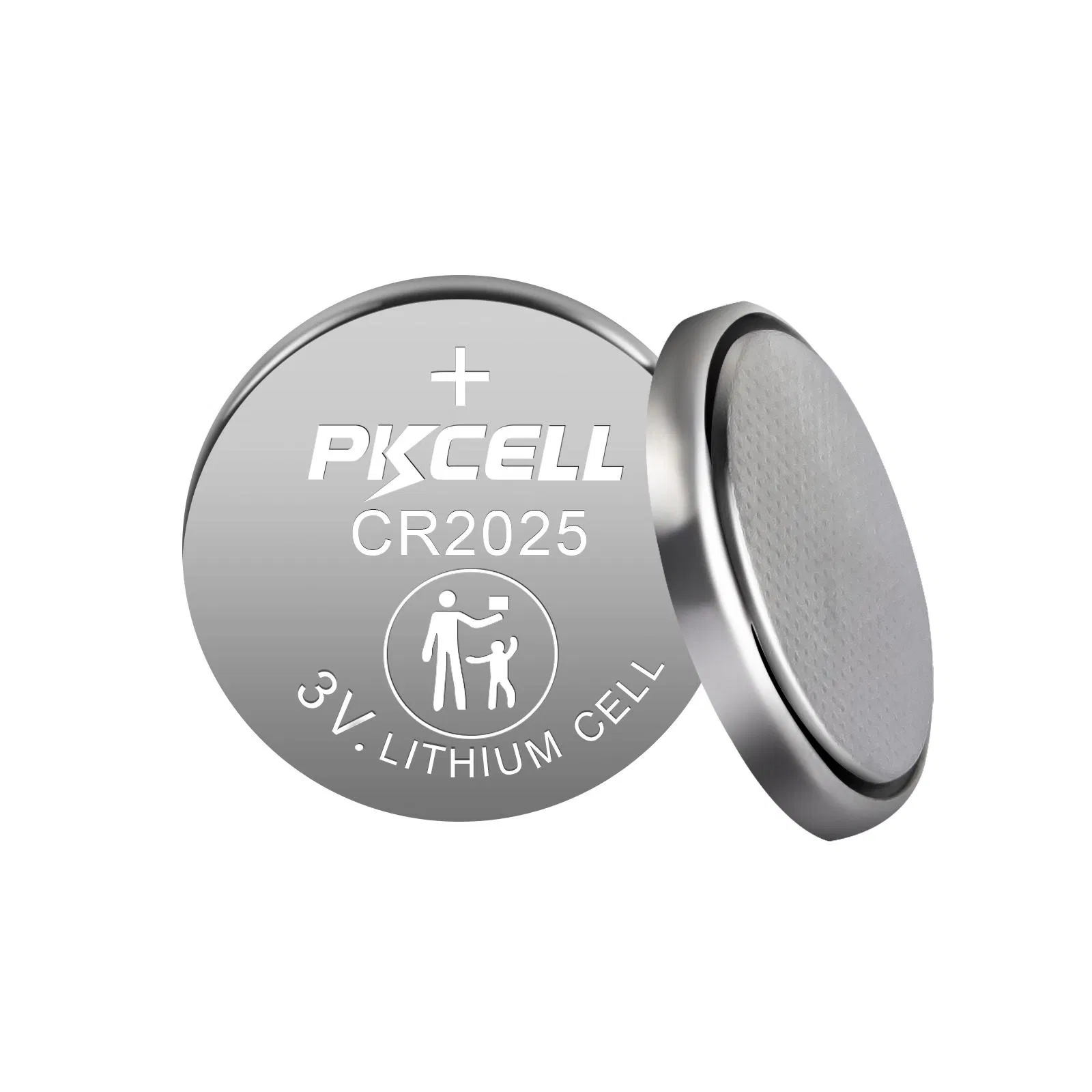

| Type | 3V CR2025 Lithium Button Cell Battery Coin Battery Car Remote control Primary Batteries |
| Brand | OEM or Private Label |
| Model | CR2025 |
| Size | 20*2.5mm |
| Voltage | 3V |
| Capacity | 150mah |
| Shelf Life | 5 years |
| Chemical System | Lithium button battery (Non-Hg, Non-Cadmium) |
| Certifications | CE ROHS UL MSDS |
| Description | 3v lithium battery |
| Storage Performance | After 12 months storage at specified conditions, discharge capacity should be no less than 80% of the original discharge capacity. |

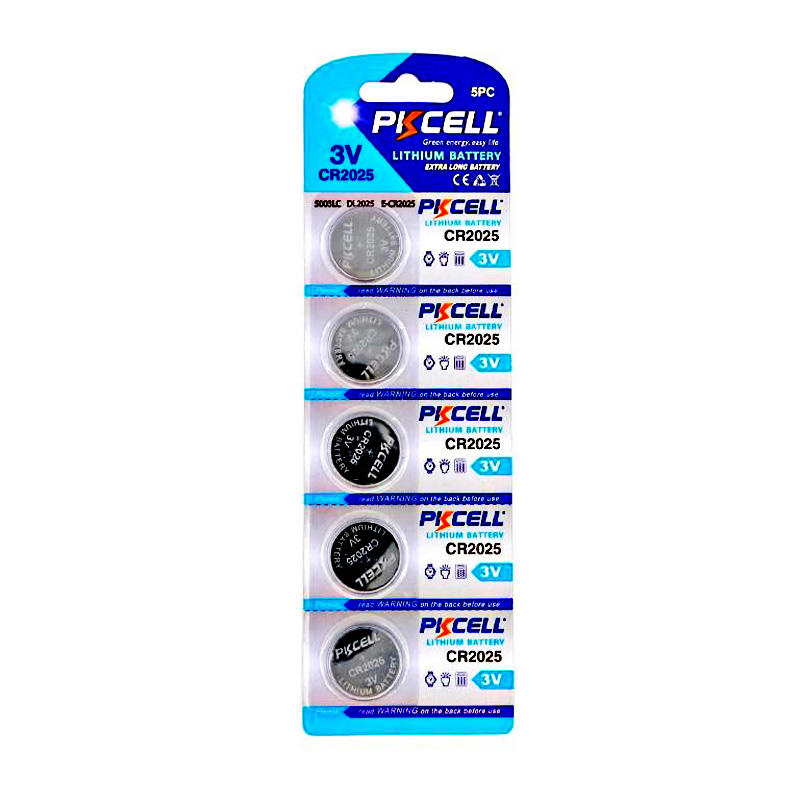

| Package | tray bulk, blister card, shrink, box, clamshell. |
| Shipping | 3-20 working days |
| Features | coin cell |
| Shippment | 7-15 Working Days |
| Service | After-sales Service |
| Sample | Available |
| OEM/ODM | Yes(Accepted) |
| Payment | Credit Card, Paypal, TT, Escrow, Western Union |
| Model | Voltage(V) | Norminal Capacity (mAh) | Dimension (mm) | Weight (g) | Recommended Continuous Drain(mA) | Recommended Pulse Drain(mA) |
|---|---|---|---|---|---|---|
| CR927 | 3 | 30 | 9.5*2.7 | 0.6 | 0.5 | 5 |
| CR1216 | 3 | 25 | 12.5*1.6 | 0.7 | 1 | 5 |
| CR1220 | 3 | 40 | 12.5*2.0 | 0.9 | 1 | 5 |
| CR1225 | 3 | 50 | 12.5*2.5 | 1 | 2 | 5 |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.2 | 2 | 10 |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.6 | 2 | 10 |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.3 | 2 | 10 |
| CR2016 | 3 | 75 | 20.0*1.6 | 1.8 | 2 | 15 |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.4 | 2 | 15 |
| CR2032 | 3 | 210 | 20.0*3.2 | 3 | 3 | 15 |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | 3 | 20 |
| CR2320 | 3 | 130 | 23.0*2.0 | 3 | 3 | 20 |
| CR2325 | 3 | 190 | 23.0*2.5 | 3.5 | 3 | 20 |
| CR2330 | 3 | 260 | 23.0*3.0 | 4 | 3 | 20 |
| CR2430 | 3 | 270 | 24.0*3.0 | 4.5 | 3 | 20 |
| CR2450 | 3 | 600 | 24.0*5.0 | 6.2 | 3 | 20 |
| CR2477 | 3 | 900 | 24.0*7.7 | 7 | 3 | 10 |

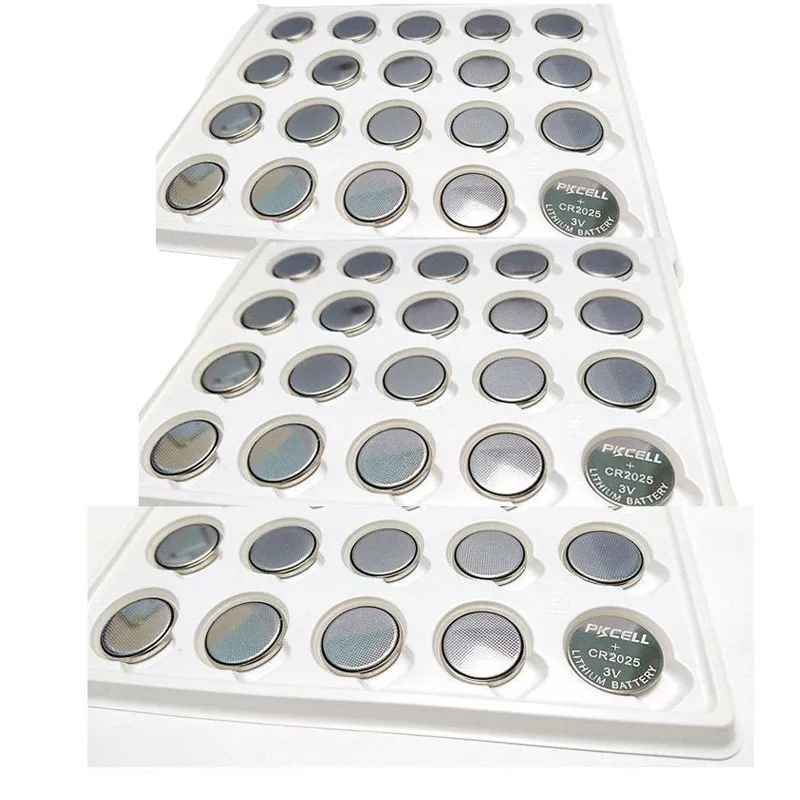

1. 50pc/tray, 2pcs/card, 5pcs/card (In Plastic tray, 50PCS per Tray, 3000PCS/Carton Carton size 20*20*15CM)
2. All shipping goods are 100% inspected and packed very well.
3. The images shown are for your reference Only. FedEx/DHL/UPS/TNT, Door-to-Door.
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving.
2. Customers specifying freight forwarders or negotiable shipping methods.
3. Delivery Time: 1-2 working days for samples; 15-20 days for batch goods.
4. Orders will be processed timely after the payment verification.
5. Goods will only be shipped to confirmed order addresses.
