Low self-discharge rate (less than 1% after 1 year storage at +25°C)
✓
Hermetic glass-to-metal sealing
✓
Non-flammable electrolyte
✓
Spiral type structure
✓
SGS, CE, RoHS, UN38.3, FCC certified
✓
ISO9001 approved management system
Advanced global automated production systems, sophisticated analytical instruments, and premium imported raw materials are utilized to develop and produce various high-performance primary cylindrical lithium batteries.
Long storage lifetime and stable shelf life.
Extremely wide range of operating temperatures.
Stable operating voltage and consistent loading voltage platform.
Capable of delivering small, medium, and high pulse discharge currents. Available in bobbin type, spiral type, and custom battery packs.
Constructed with premium stainless steel materials, utilizing laser and hermetic glass-to-metal seal welding to ensure unique performance in wet and harsh environments.
Extended operational lifespan, lasting over 5 years. For specific low-power applications, the runtime can exceed 10 years depending on the working requirements.
High energy density reaching up to 650Wh/Kg, which is about 3 to 10 times higher than other primary lithium battery chemistries.
Manufactured strictly under certified standards including SGS, CE, RoHS, UN38.3, FCC, and ISO approvals.
Applications

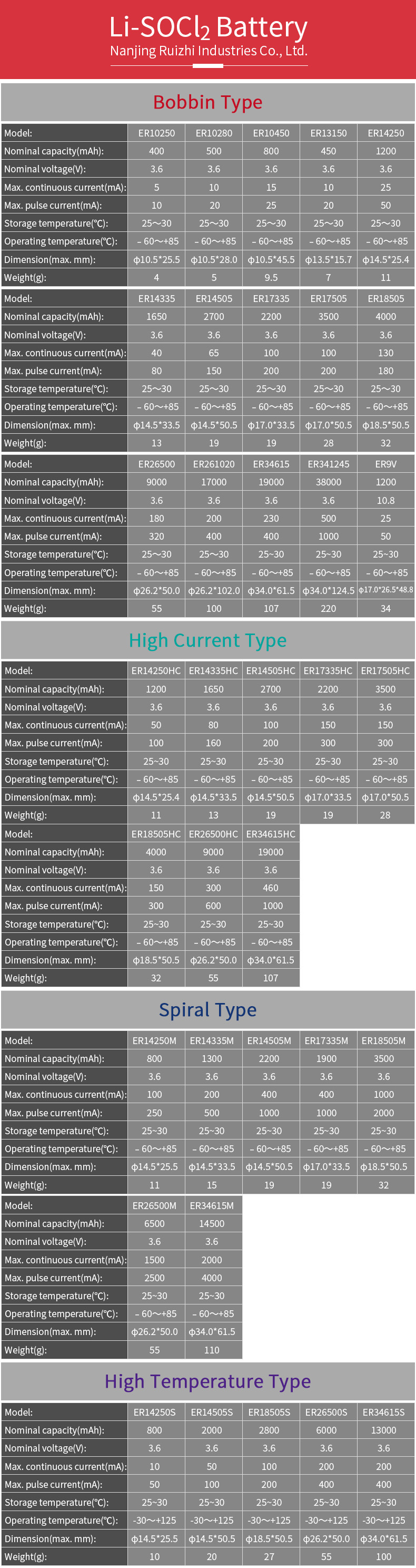

Battery Catalog

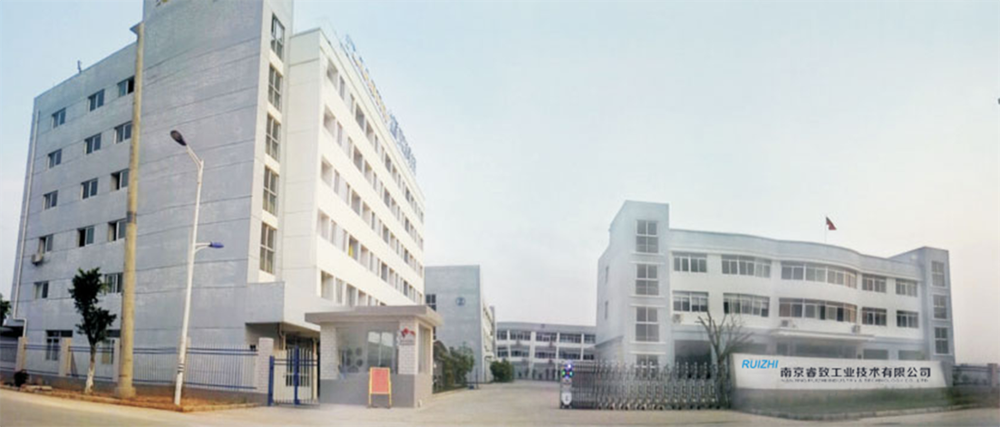

Technical Expertise & Facility
Specializing in the research & development, production, sales, and comprehensive technical support of Lithium Thionyl Chloride batteries (Li-SOCl2) and Lithium Manganese Dioxide batteries (Li-MnO2). Powered by proprietary national electromagnetic patents, robust technological innovation, and focused service values, custom power solutions can be designed and executed to meet specific client system requirements.
These batteries are widely integrated across key industries: utility metering, automotive electronics, home security systems, intelligent transportation networks, satellite and remote sensing equipment, cold chain temperature monitoring, GPS positioning tags, military equipment, marine safety systems, and oil & gas exploration tools.
Operating under standard ISO international quality management systems, manufacturing is closely monitored to ensure maximum product consistency. Certifications include CE, RoHS, and UN38.3. Complete Material Safety Data Sheets (MSDS) are provided to facilitate safe handling, global transport, and logistical compliance. Currently, products are distributed widely across Europe, the Americas, the Middle East, Southeast Asia, and other international markets.
Frequently Asked Questions
What are the primary applications of the ER34615M Li-SOCl2 battery?
The ER34615M battery is highly suited for utility smart meters, automotive electronic systems, home security systems, intelligent logistics, GPS tracking devices, marine safety transponders, and military systems requiring high pulse discharge currents and extreme durability.

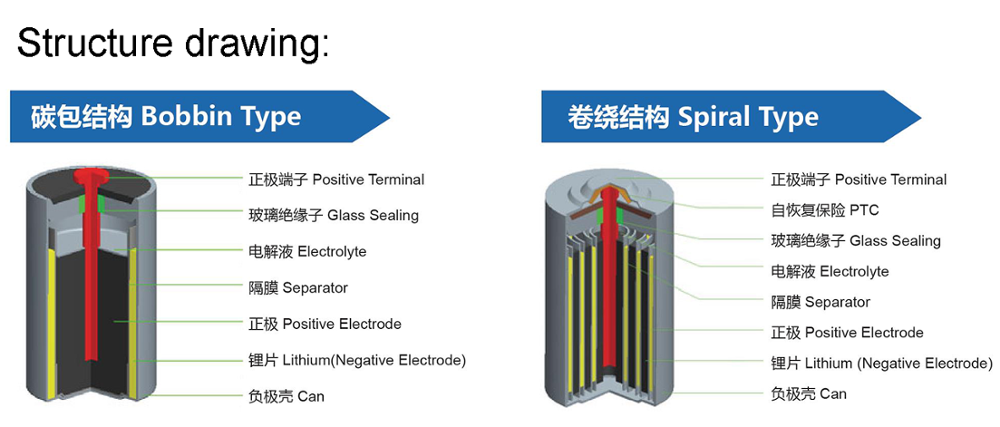

What is the difference between spiral type and bobbin type Li-SOCl2 batteries?
Spiral type Li-SOCl2 batteries (like the ER34615M) are constructed with wound electrodes to deliver high continuous and pulse currents (up to 4000mA for pulse). In contrast, bobbin type batteries are optimized for low continuous current discharge over much longer lifespans.
What is the shelf life and operating temperature range?
This battery exhibits an exceptionally low self-discharge rate (less than 1% per year when stored at +25°C), enabling a shelf life of up to 10 years. It operates reliably under severe environment temperatures ranging from -60°C to +85°C.
Which battery models can the ER34615M replace?
The ER34615M is equivalent to and can seamlessly replace several industry models, including LS33600, TL-5930, TL2300, TL4930, LS-33600C, SL-780, SB-D01, XL-200F, XL-205F, ER20, and ER32L615.
How does the glass-to-metal sealing improve safety?
The hermetic glass-to-metal seal provides an airtight containment barrier. It prevents electrolyte leakage, protects against atmospheric humidity ingress, and ensures maximum durability in demanding chemical or high-moisture environments.
