| Battery Specification | |
|---|---|
| Item | Specification |
| Nominal capacity | 106Ah @0.2C |
| Minimum capacity | 105.5Ah @0.2C |
| Nominal voltage | 3.2V |
| Max Charging voltage | 3.95±0.05V |
| Discharge ending voltage | 1.50±0.05V |
| Standard charge current | Customized |
| Standard discharge current | Customized |

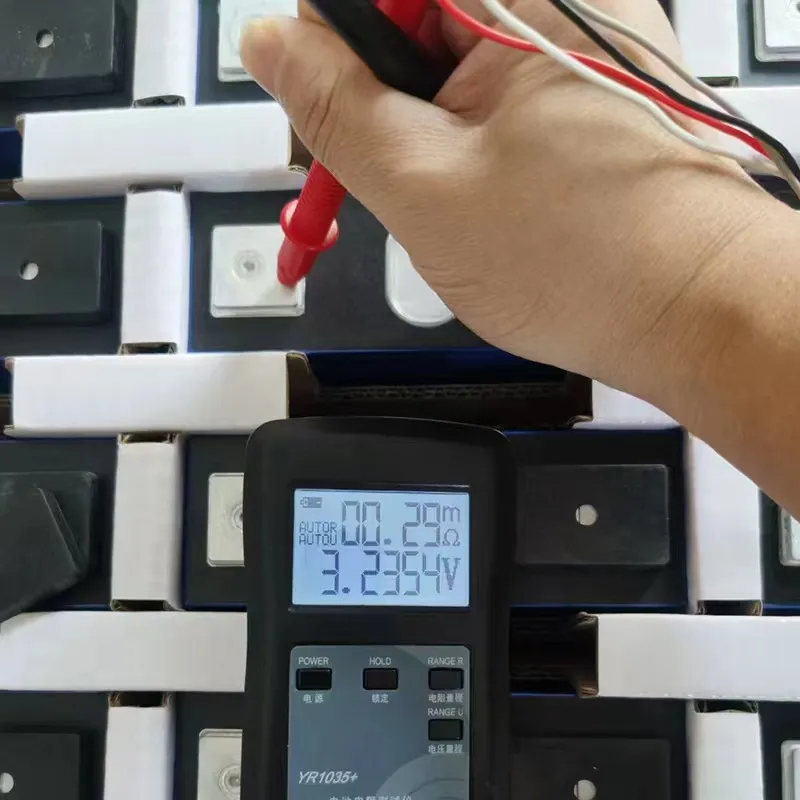

| Internal Resistance | 0.3mΩ |
| Recommended cell surface max temperature during charge and discharge |
Charge: 0~45ºC Discharge: -20~60ºC |
| Storage temperature and time |
1 year: -20~25ºC 3 months: -20~45ºC 1 month: -20~60ºC |

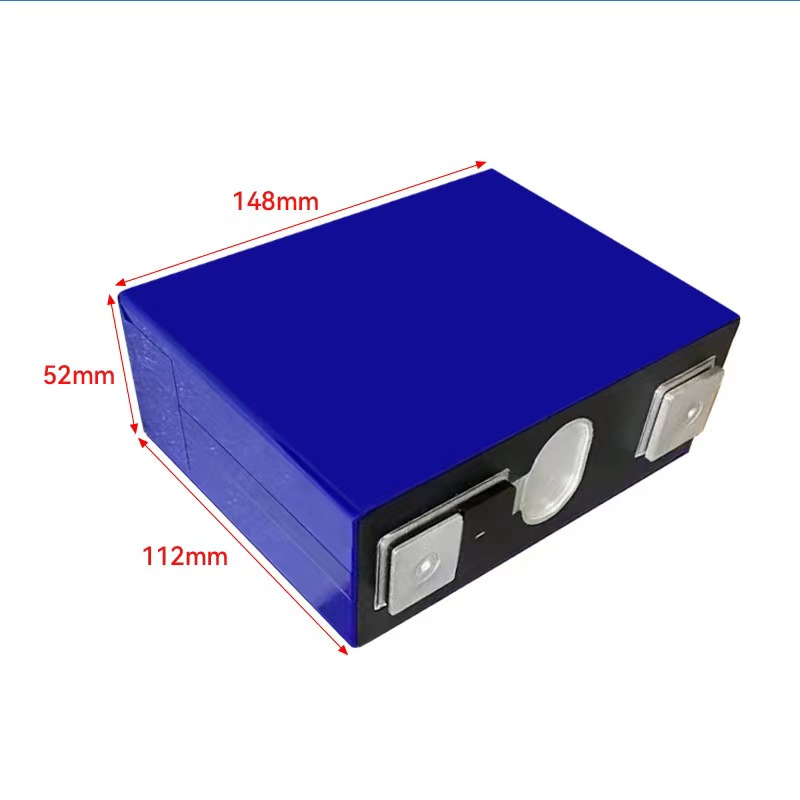

| Cell dimension | 52*148*117mm |
| Weight | About 1.93kg |
| Maximum Continuous Charging Rate | <-10C : can not charging temperature |
| -10-0ºC:≤0.20C | |
| 0~45ºC:≤1.00C | |
| 45C: can not charging temperature | |
| Maximum Continuous Discharge Rate | <-30C : can not discharging temperature |
| -30-0C:≤0.20C | |
| 0~45ºC:≤3.00C | |
| 45-60C:≤0.50C | |
| ≥60C : can not discharging temperature | |
| Maximum Constant Charge Current | Constant Current 1.00C |
| Constant Voltage 3.95V | |
| 0.05C cut-off | |
| Maximum Constant Discharge Current | Constant Current 3.00C |
| Constant Voltage 1.50V | |
| Puncture experiment | No fires, no explosions |
| Extrusion experiment | No fires, no explosions |
| Heating test(130ºC) | No fires, no explosions |
| Short-circuit test | No fires, no explosions |
