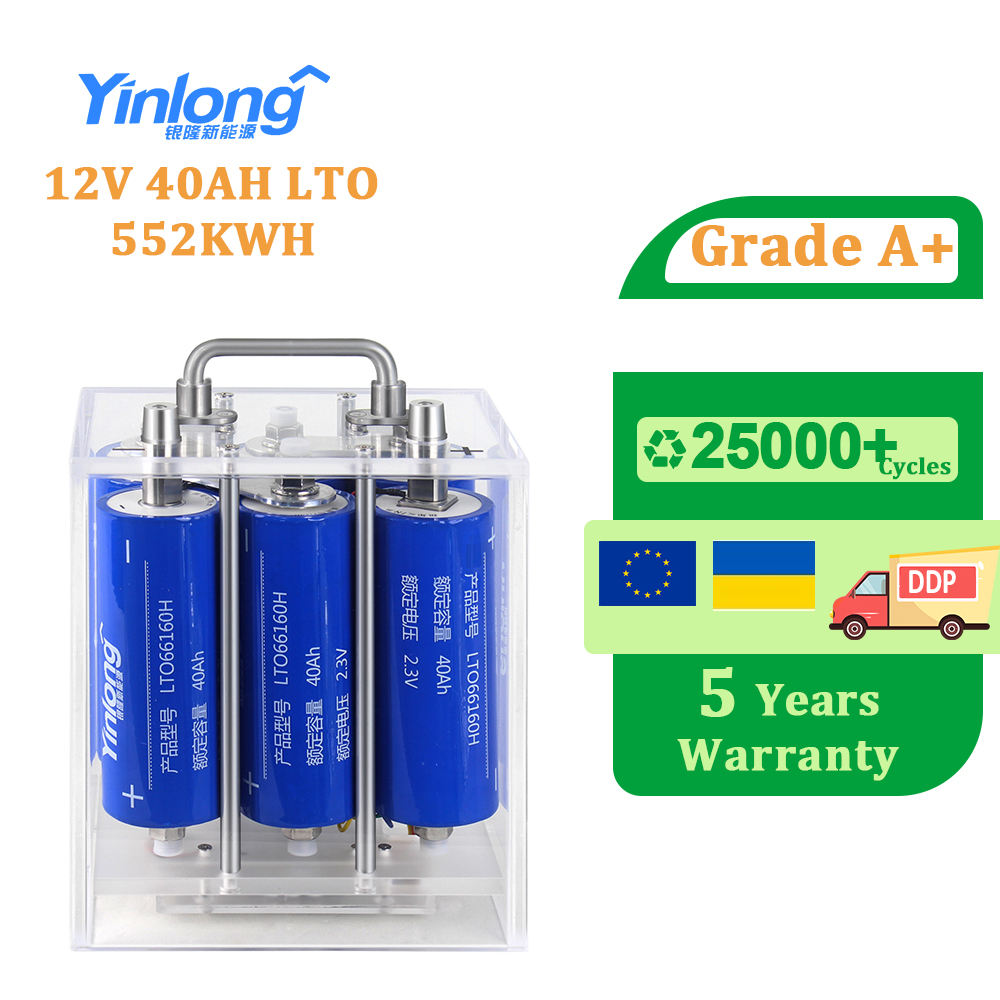

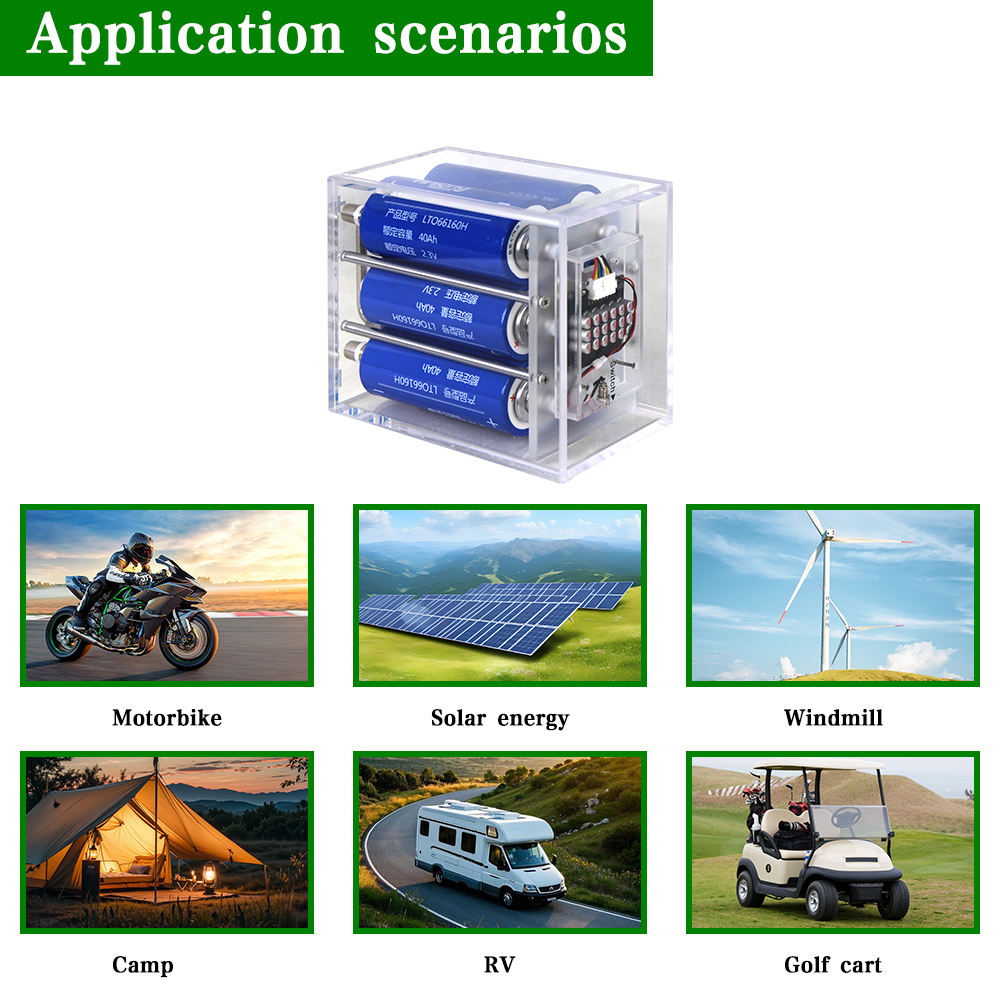

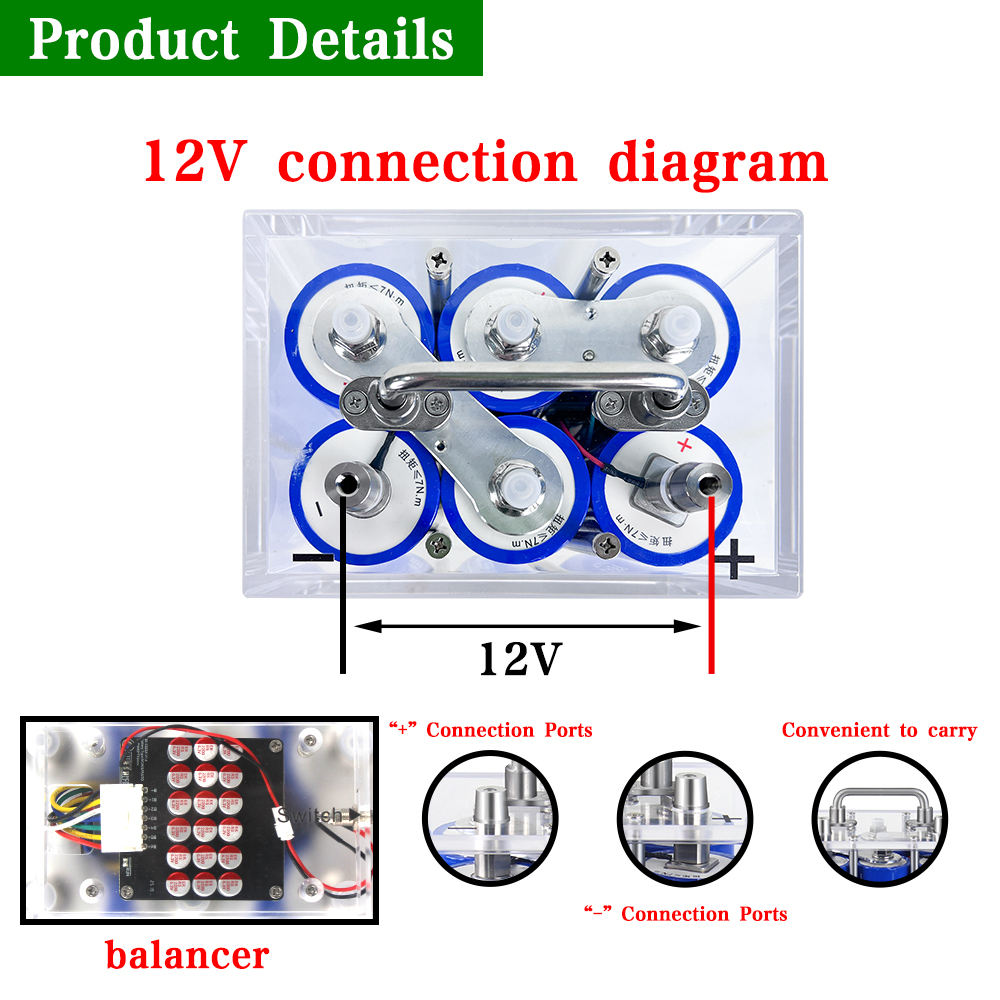

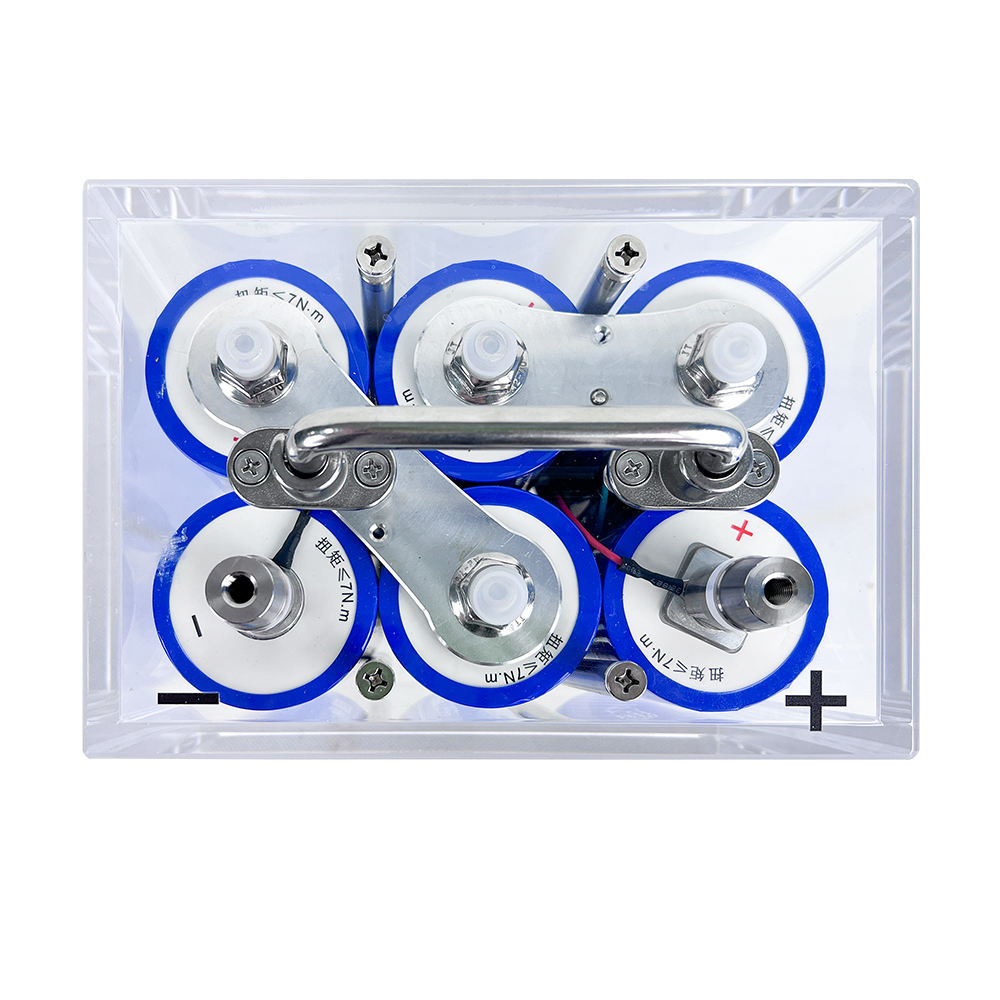

Brand New Yinlong 45Ah LTO Battery 12V 40Ah Battery Pack 6S1P Ingebouwde Balancer Cycle Life 20000

Product Description

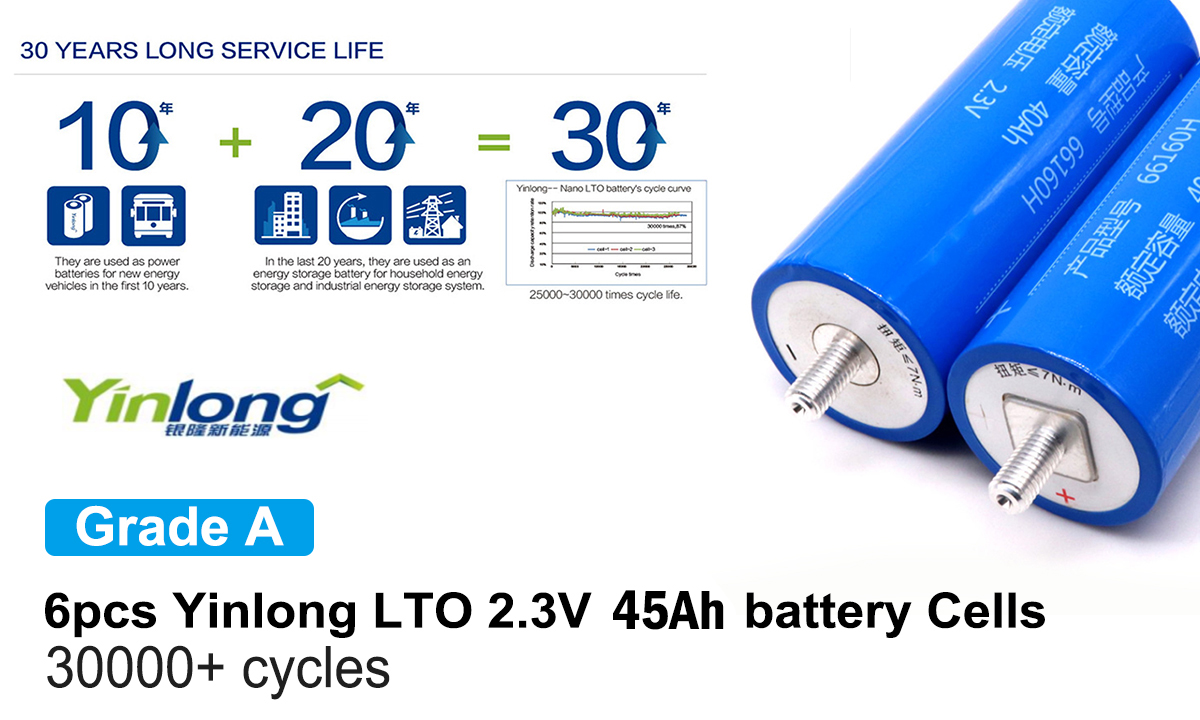

Lithium Titanate Battery Cell

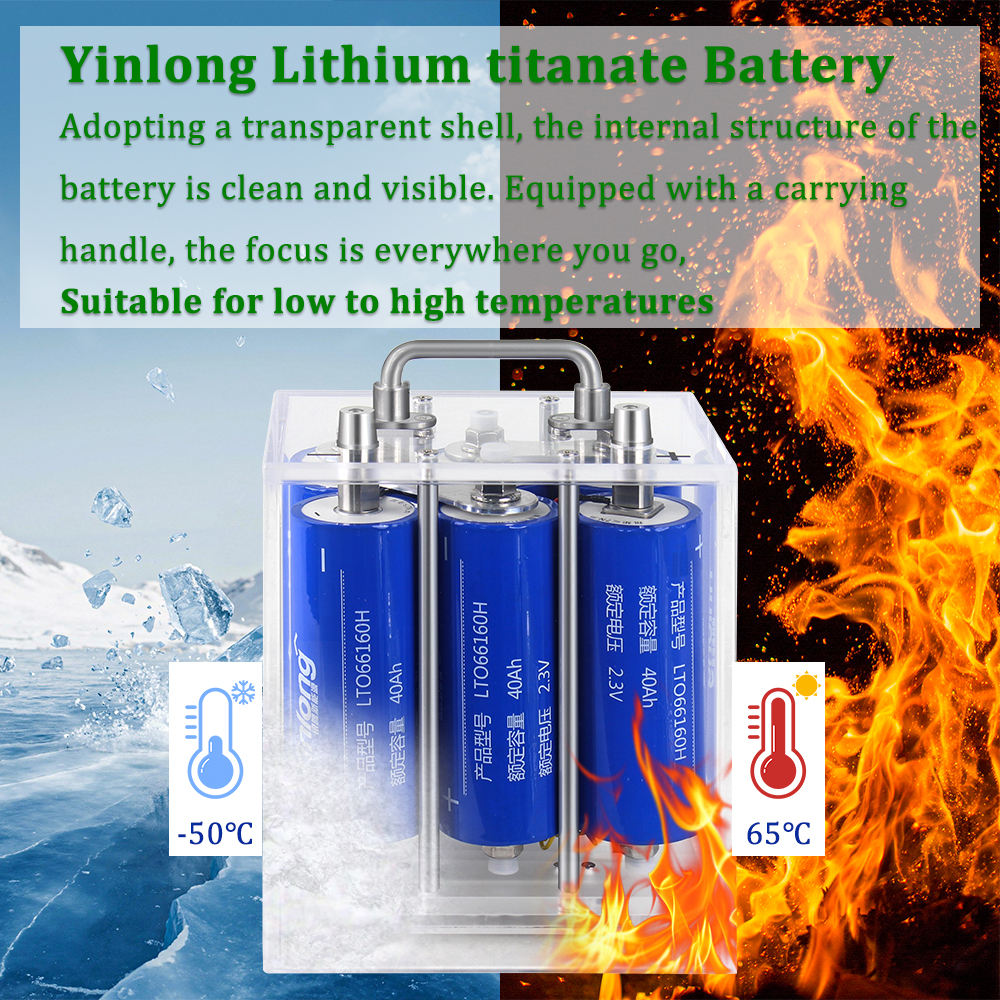

LTO Power Cell Detail
Product Description
Item General Parameters
Model Yinlong 45Ah Lithium Titanate Power Cell
Nominal Voltage 2.3V
Cut Off Voltage of Charge/Discharge 2.8V/1.5V
Nominal Capacity 45Ah
Real Capacity 46Ah
Maximum Continuous Charge Current 6I1 (270A) (25℃±5℃)
Maximum Continuous Discharge Current 6I1 (270A) (25℃±5℃)
Maximum Pulse Charge/Discharge Current (10s) 10I1 (450A) (25℃±5℃)
Cycle Performance Discharge Capacity ≥ 80% initial capacity after 16,000 cycles
Internal Impedance ≤ 1mΩ
Weight 1255.0 ± 20g
Dimensions Diameter: 66.0 ± 1.0mm
Height: 161.0 ± 1.0mm
Warranty 5 Years
Operating Temperature -40 ~ 65℃
Storage Temperature Range -5℃ ~ 28℃
Application Power Storage System, Electric vehicles, Golf carts, Electric scooter, Electric bicycle, etc.

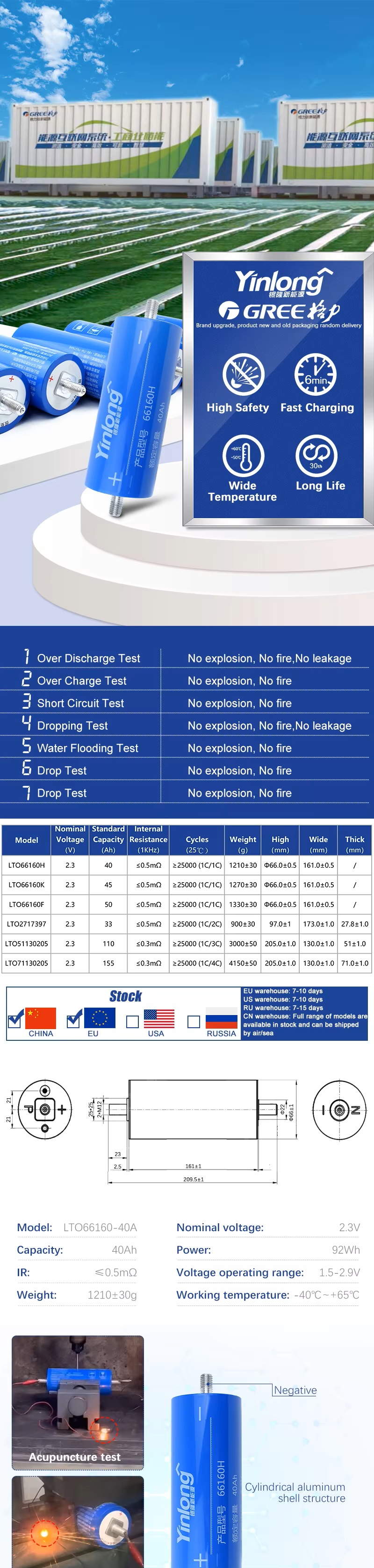

LTO Battery Dimensions

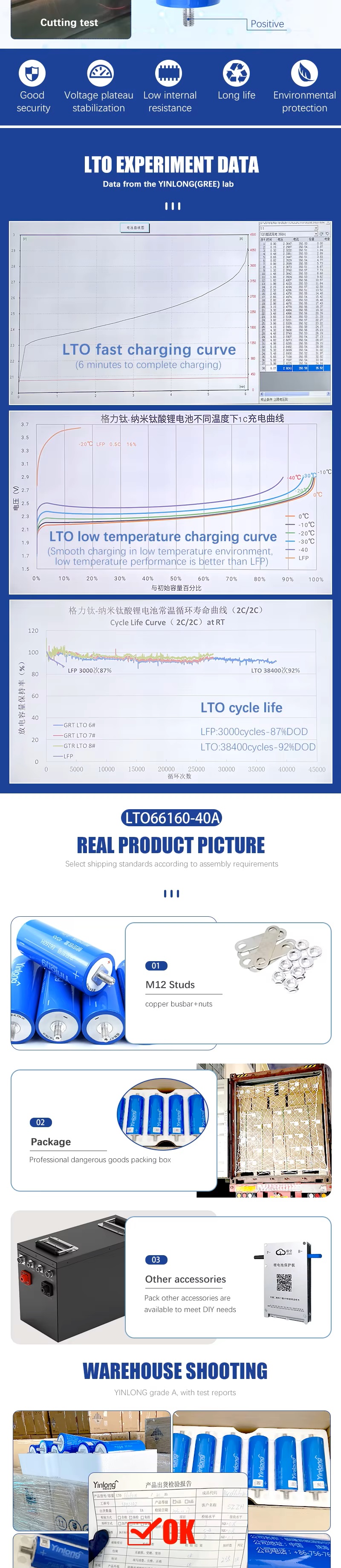

LTO Battery Details
LTO Battery Thread

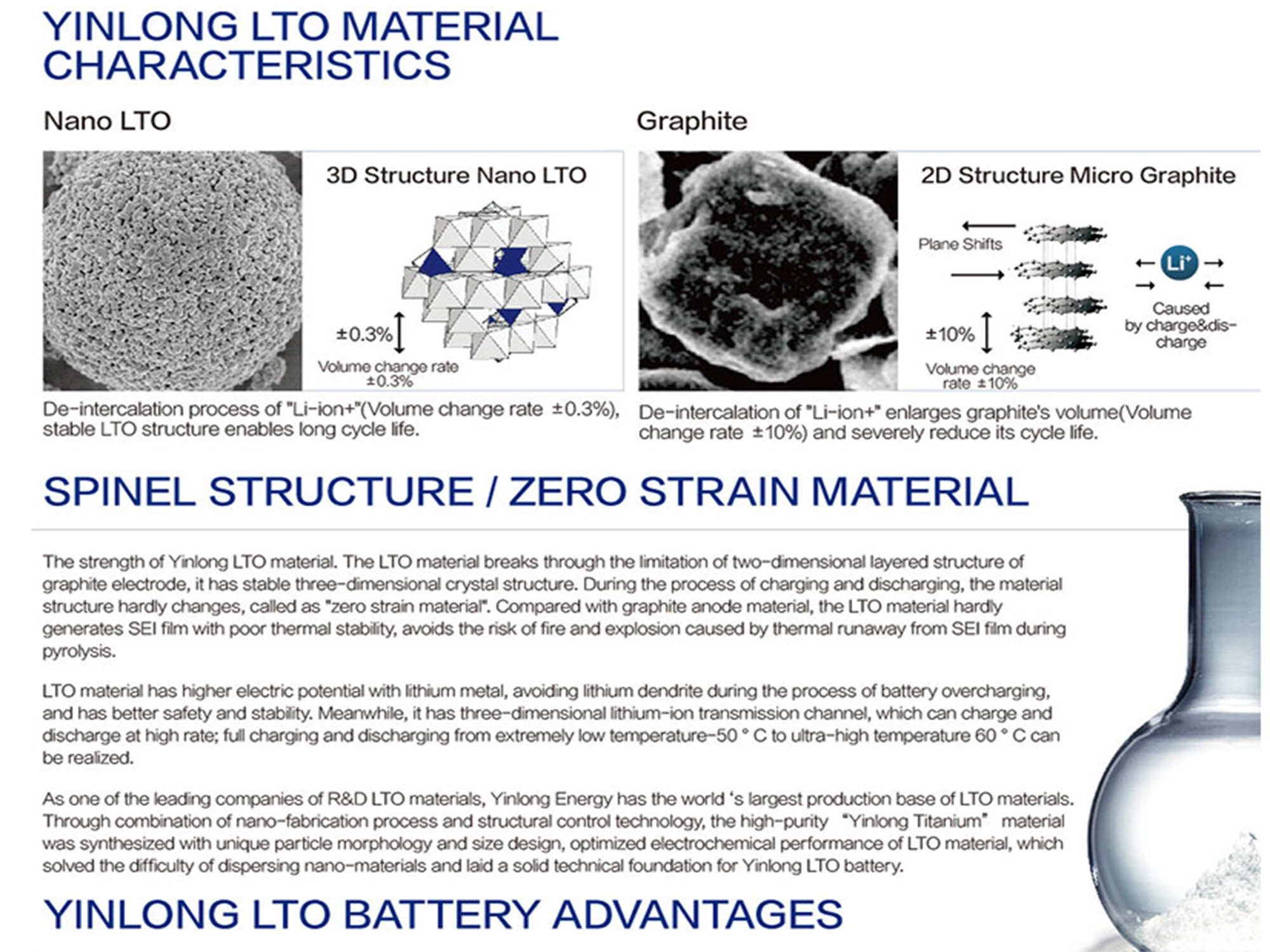

LTO Application Case 1

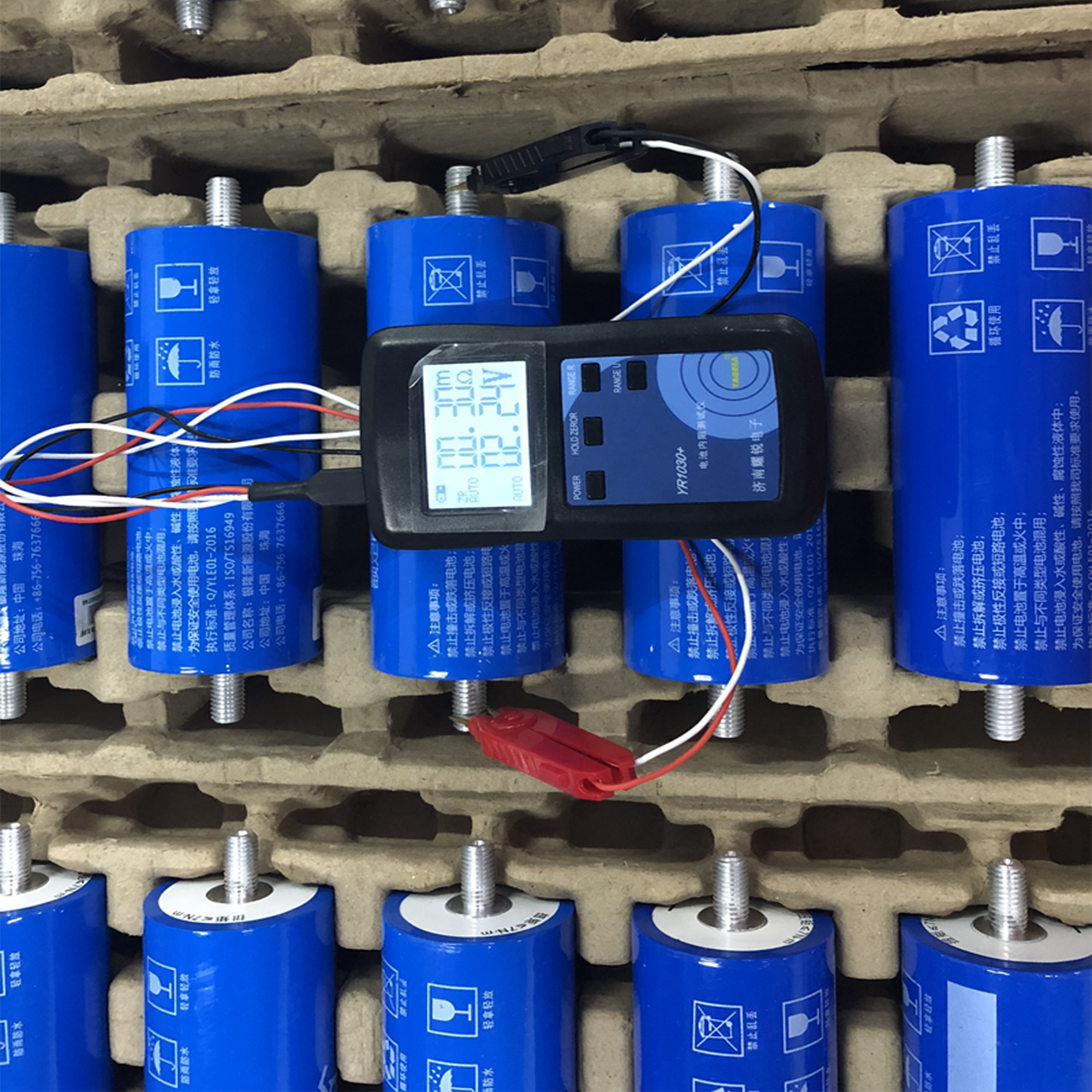

LTO Application Case 2
LTO Application Case 3
LTO Application Case 4
LTO Application Case 5

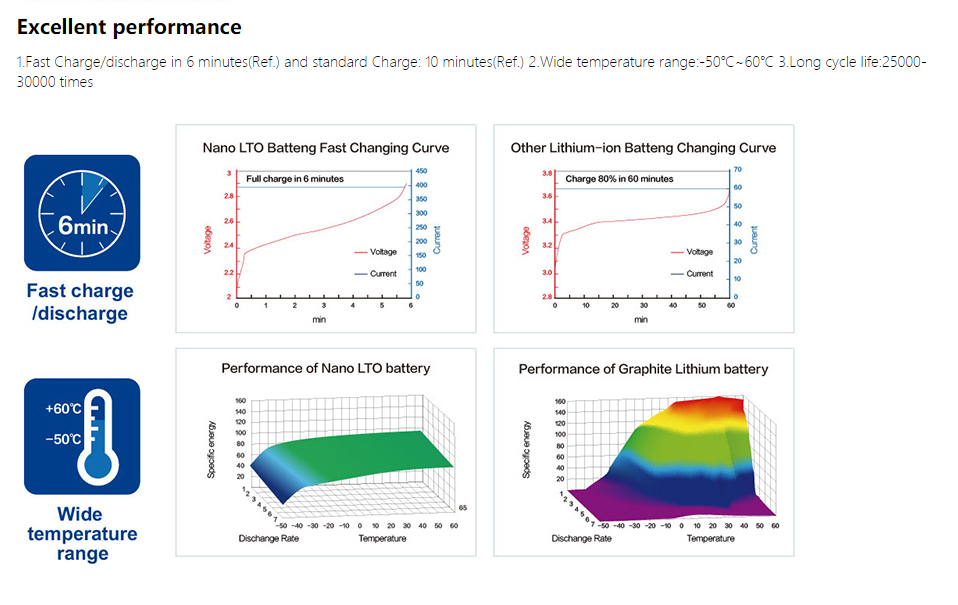

LTO Application Case 6
LTO Application Case 7
LTO Application Case 8

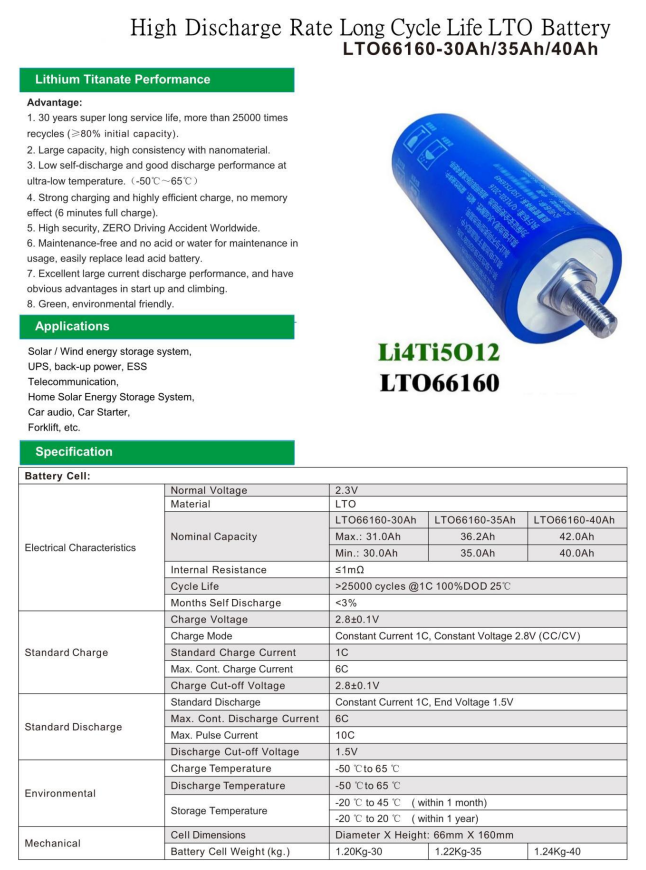

LTO Application Case 9

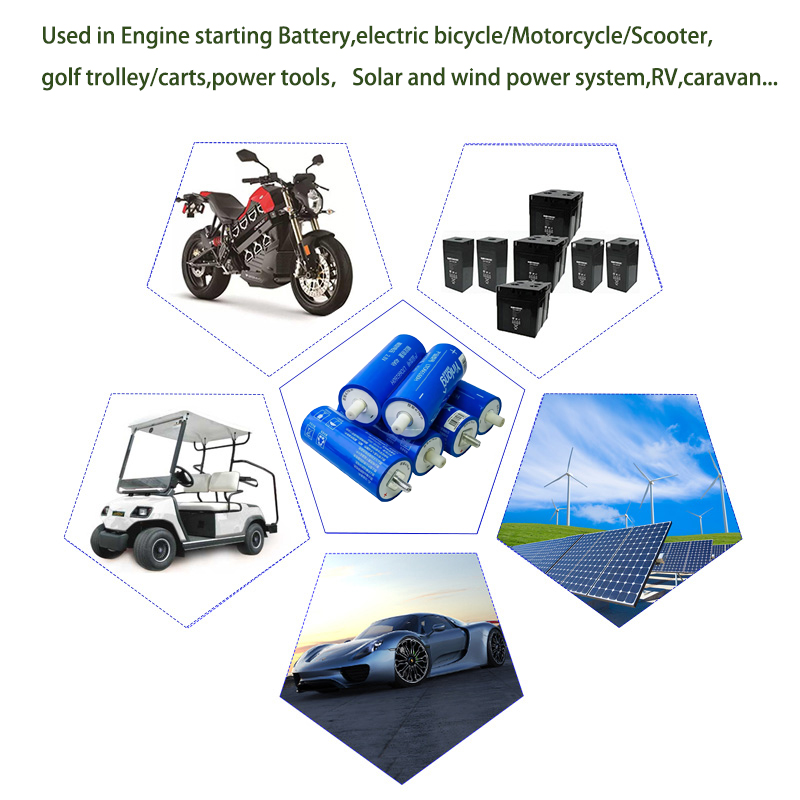

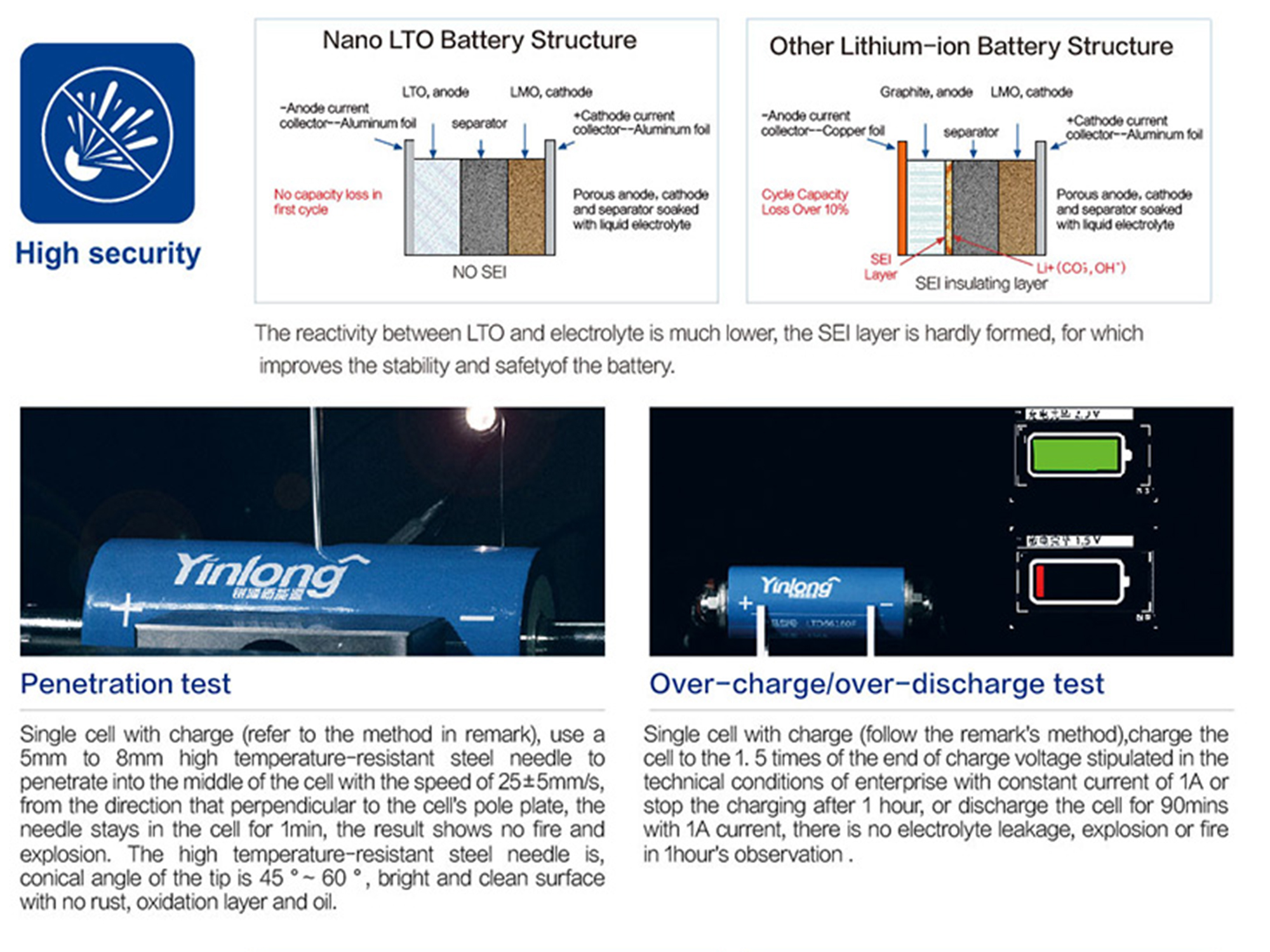

LTO Battery Safety Testing
LTO Battery Five Worldwide Advantages
  • 1. High Safety With spinel structure and zero strain material, No SEI layer occurs. ZERO EV accidents worldwide, and No fire or explosion even after steel needle penetration, sea water submerging, cutting, or burning testing, etc.

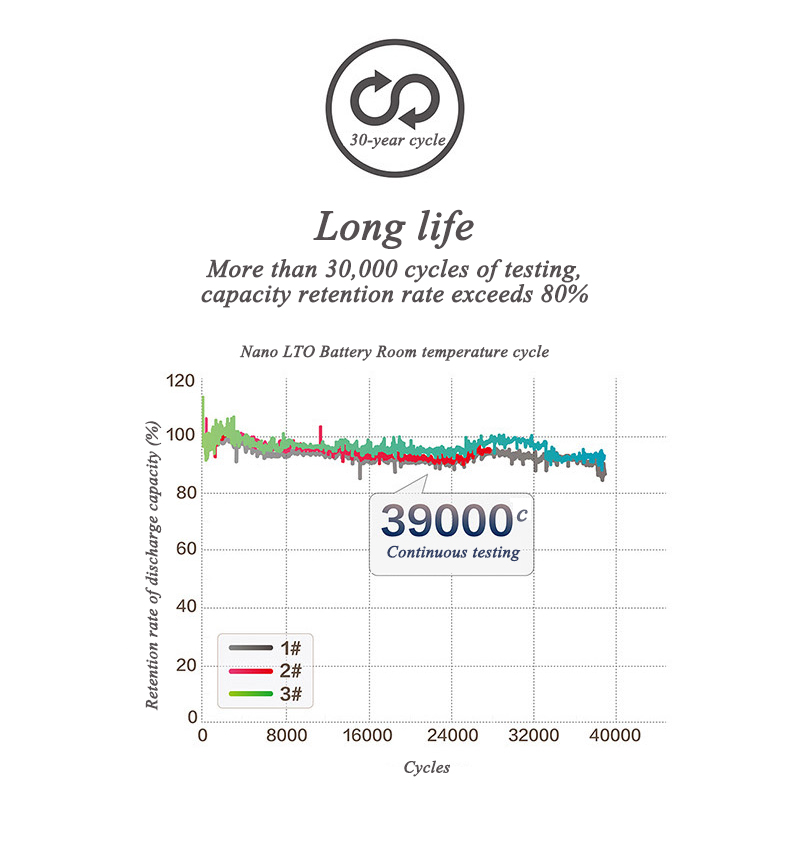

  • 2. Long Cycle Life 80% capacity after 30,000 times life for 100% DOD charging/discharging. First 10 years used on electrical vehicles and also another 20 years on energy storage system products.
  • 3. High Power Large power similar to super capacitor. Have great advantages on grid peak load and frequency regulation.

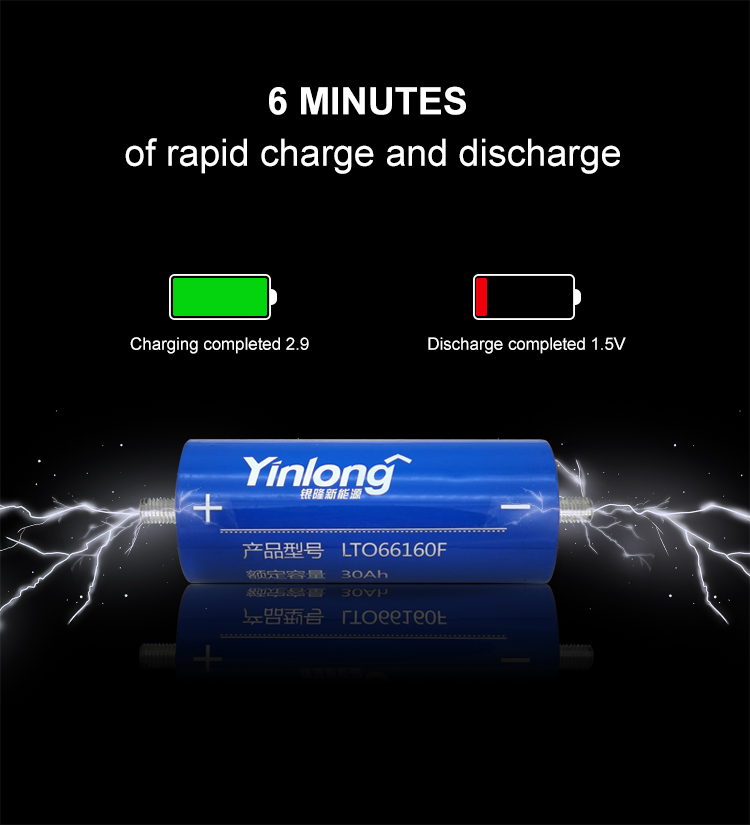

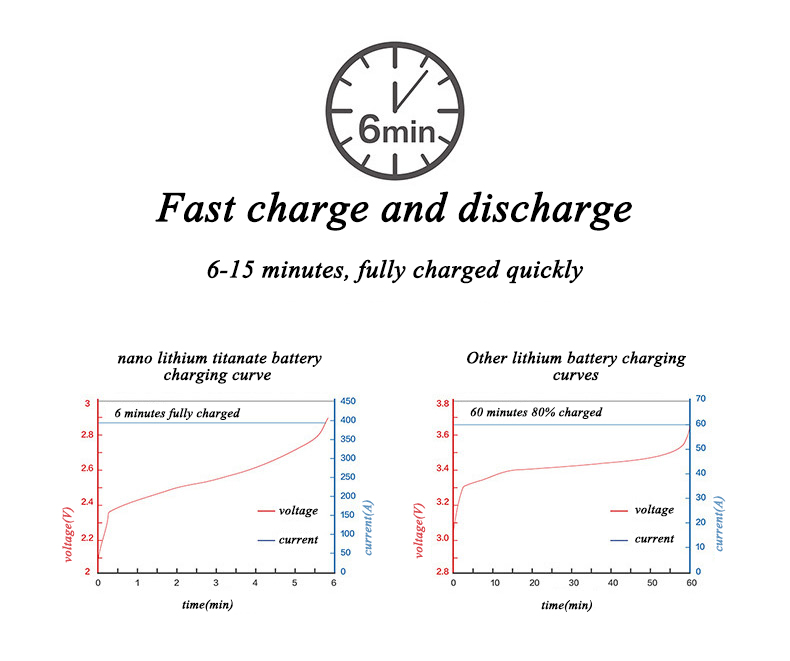

  • 4. Fast Charging/Discharging 10 times capacity charging, 6 minutes charging time for single cell, 10~20 minutes charging time for electric vehicles packs.
  • 5. Wide Temperature Range Stable and reliable performance covering the wide temperature range from -50℃ to 60℃. Work in super cold climate that no others can compete with.

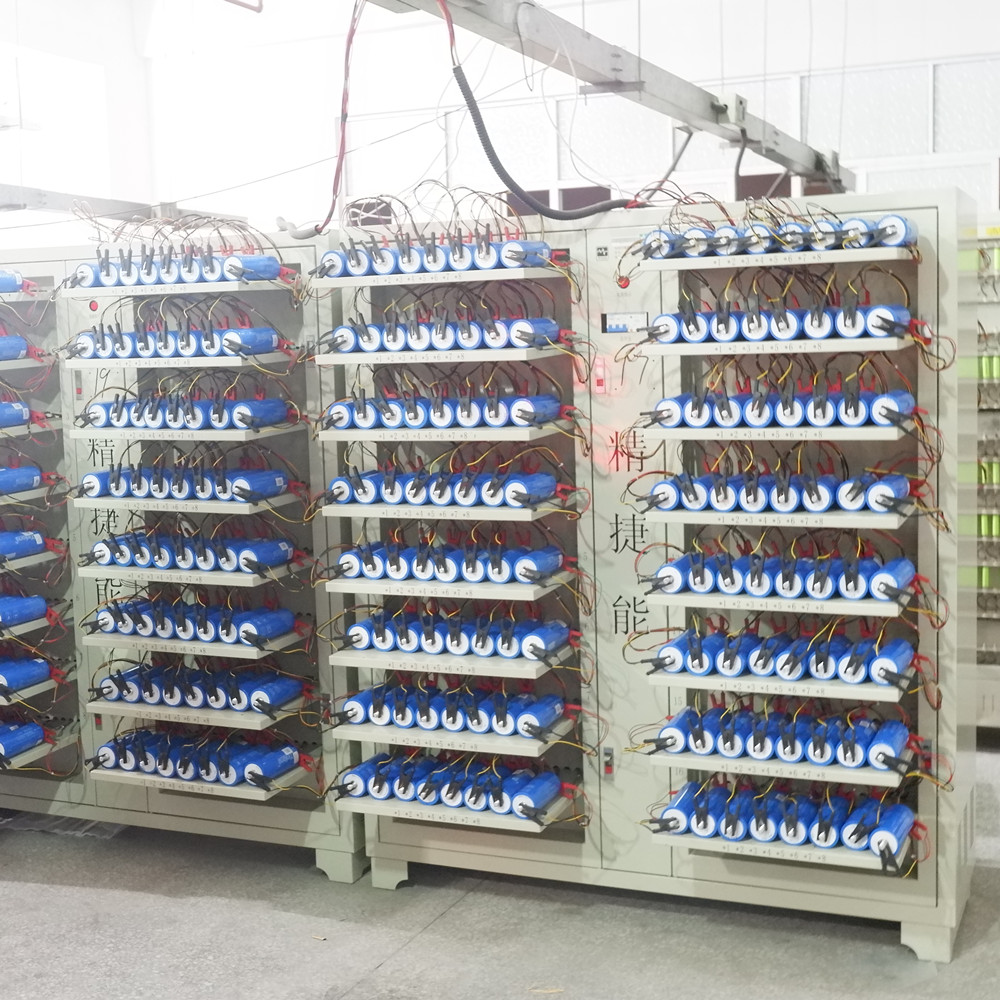

Battery Sorting Test
Battery Professional Aging Testing
All the battery cells are strictly tested for voltage, IR, and capacity before delivery, ensuring cells are highly matched for assembly.
Packing & Shipping

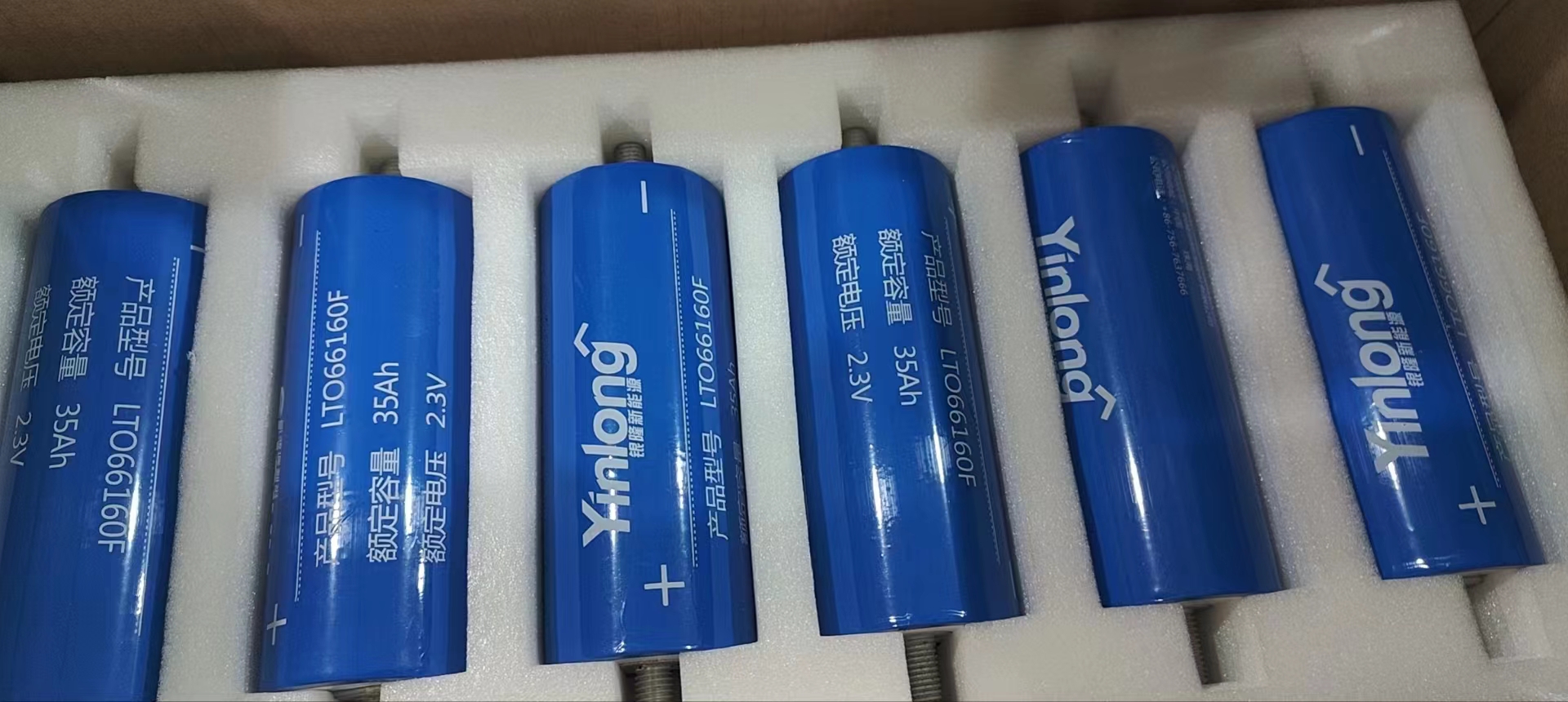

Battery Sponge Packaging

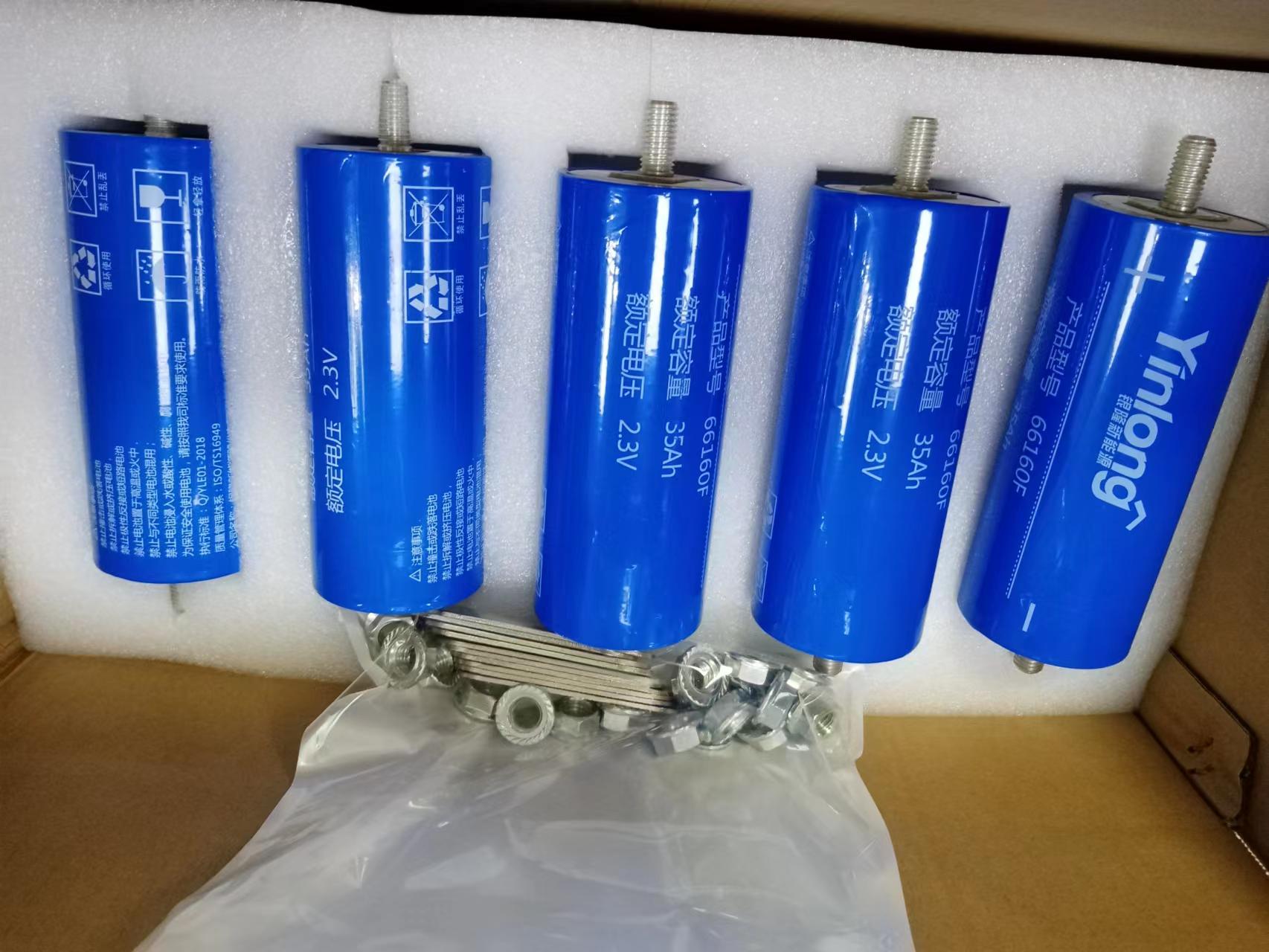

Carton Box Packing
Use high hardness custom sponge to protect the battery, one carton per six batteries.

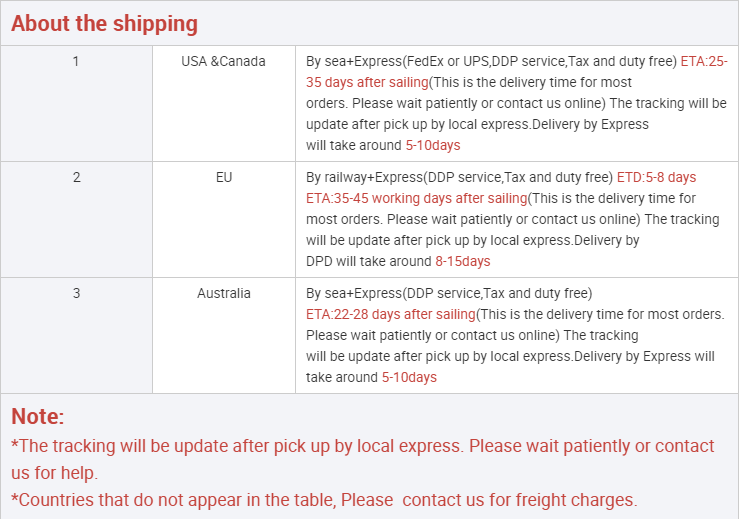

Shipping Carton Labeling
Pallet Loading
Factory Show

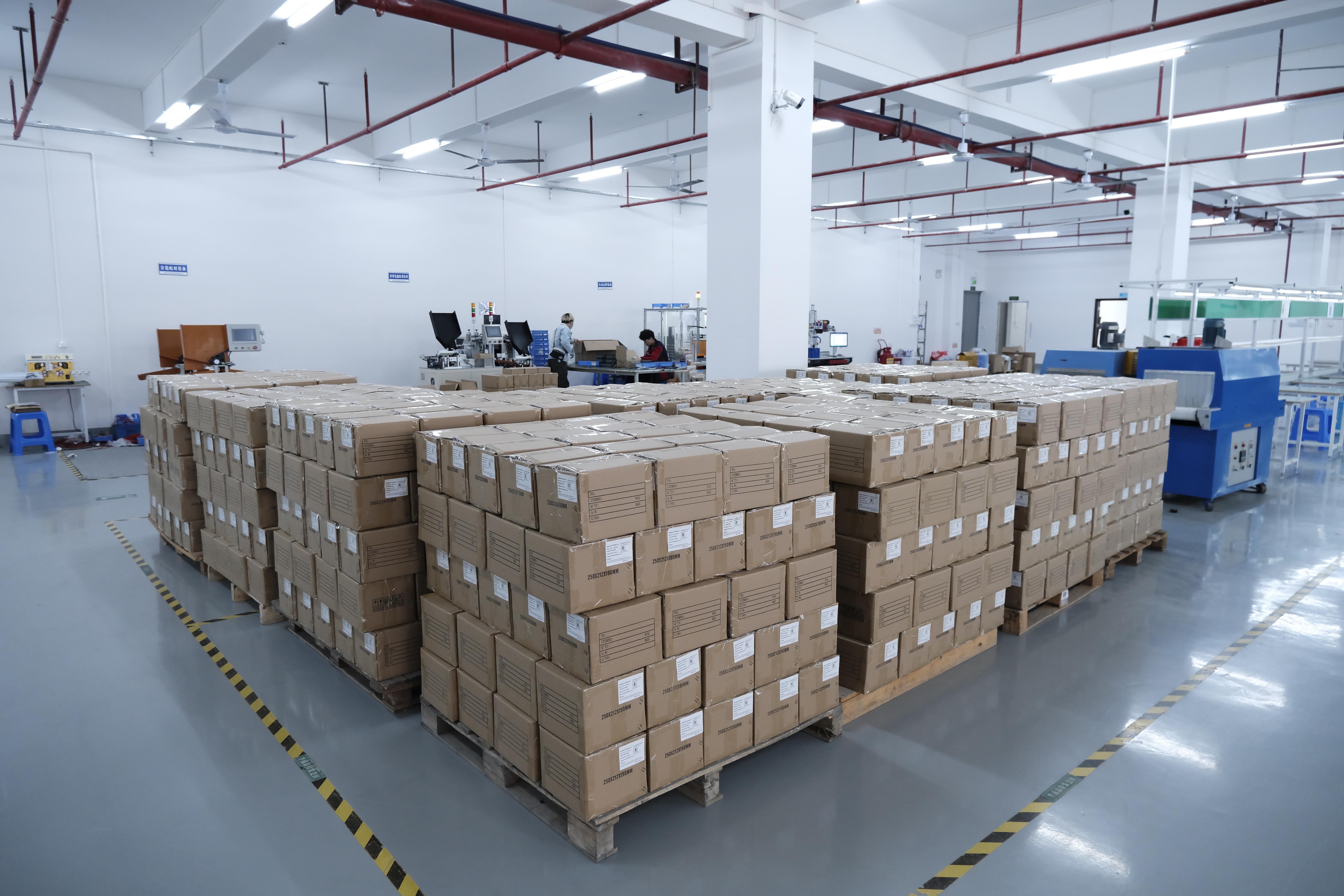

Factory Warehouse 1

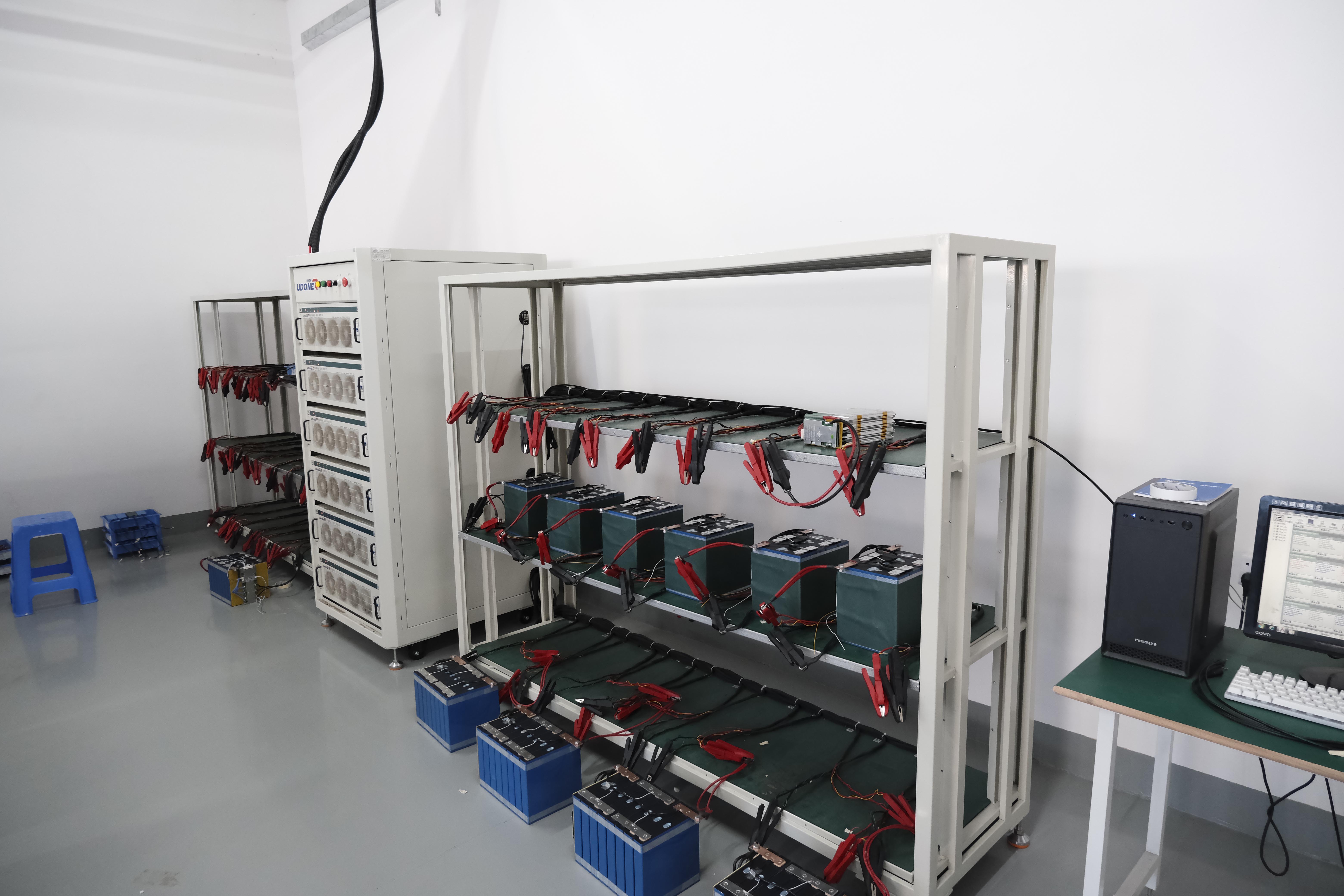

Factory Warehouse 2

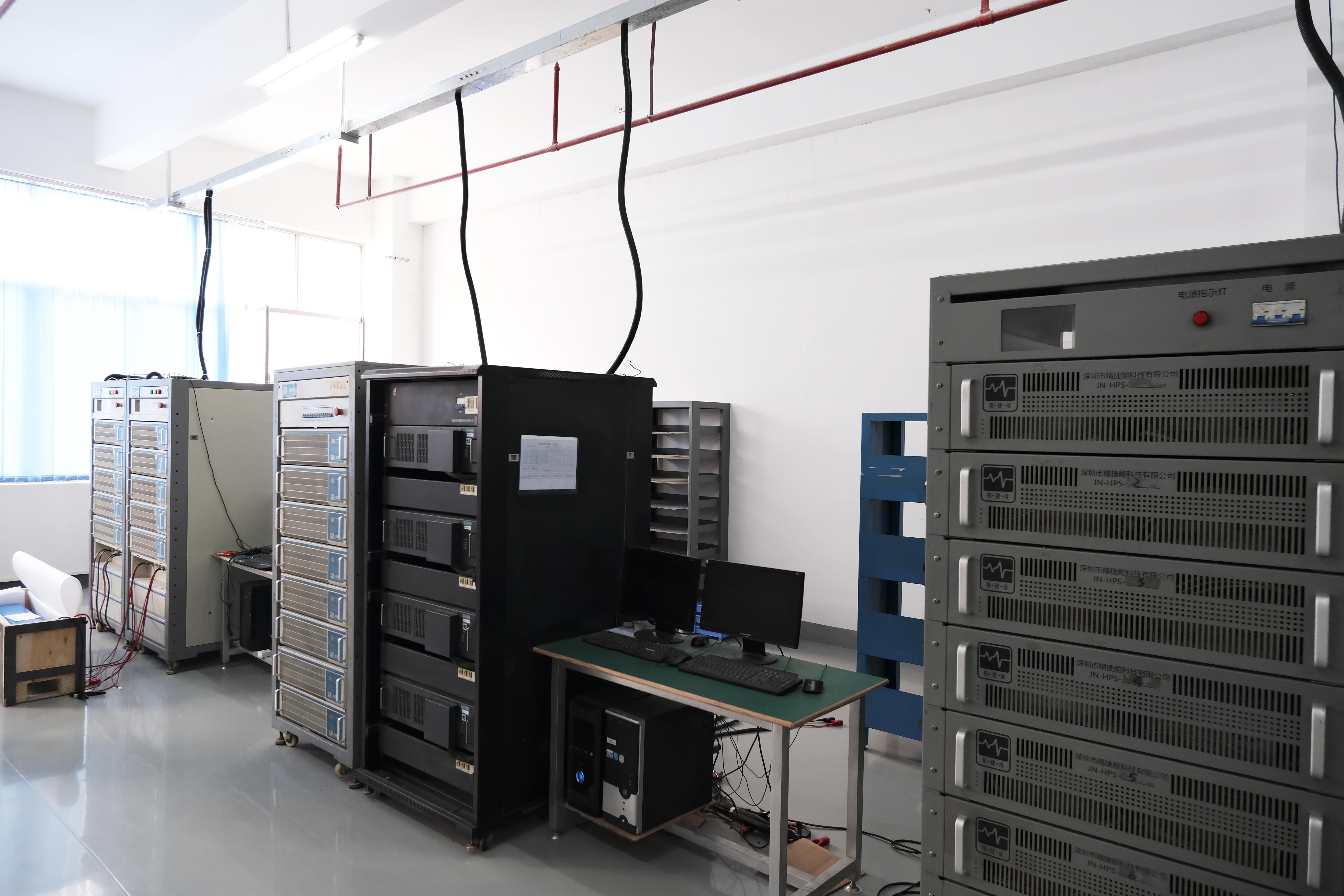

Production Line 1

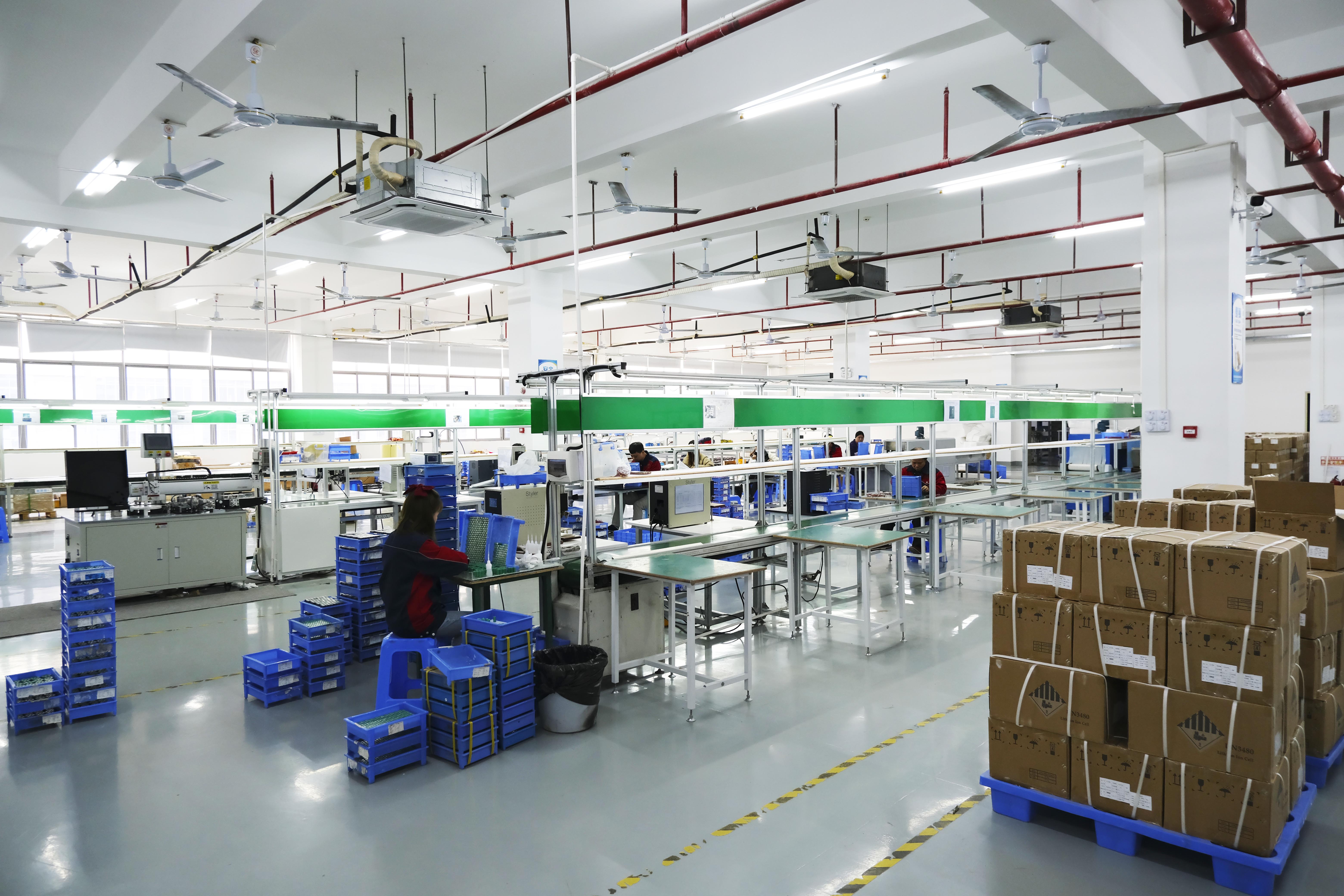

Production Line 2

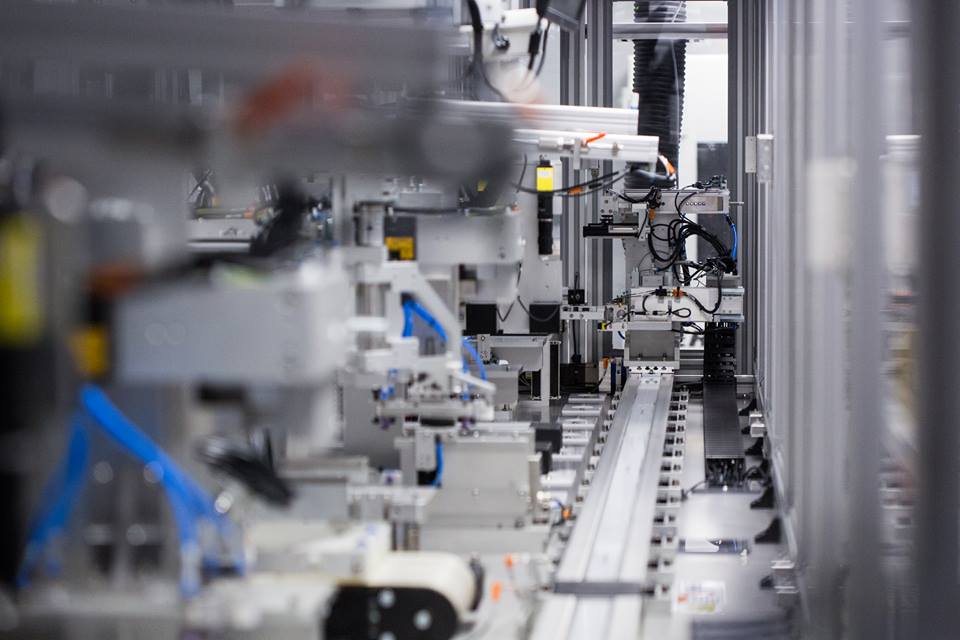

Battery Testing Setup

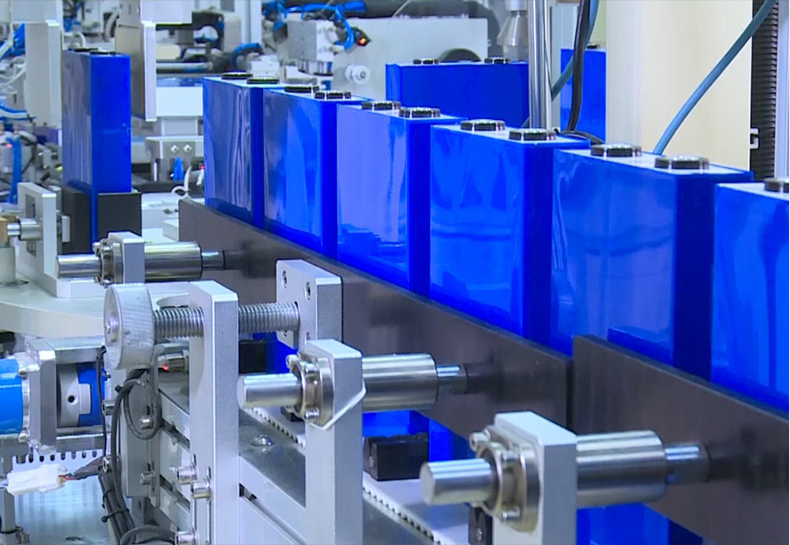

Testing Facility
We are a specialized company dedicated to the R&D, production, and marketing of LiFePO4 battery packs, 18650 lithium battery packs, ebike batteries, LiFePO4 cells, and li-ion polymer battery products. After 10 years of rapid development, we have accumulated core technology and comprehensive solutions for power battery products, earning the approval and praise of customers worldwide. Most of our battery models have MSDS, UN38.3, CE, and UL1642 certificates. Supported by professional R&D engineers, an enthusiastic sales team, and reliable after-sales service, our battery products are widely used in off-grid solar power systems, solar street lights, RVs, electric vehicles, golf carts, power tools, backup power, and medical devices. Our goal is to provide competitive, safe, and superior battery products for customers. We also pay attention to environmental protection, take social responsibility, and encourage people to use green new energy. Trust us to be your reliable partner in the battery business!
Certificates
Certificate 1
Certificate 2
Certificate 3
Certificate 4
Certificate 5
Certificate 6
Certificate 7
Certificate 8
Customers Feedback

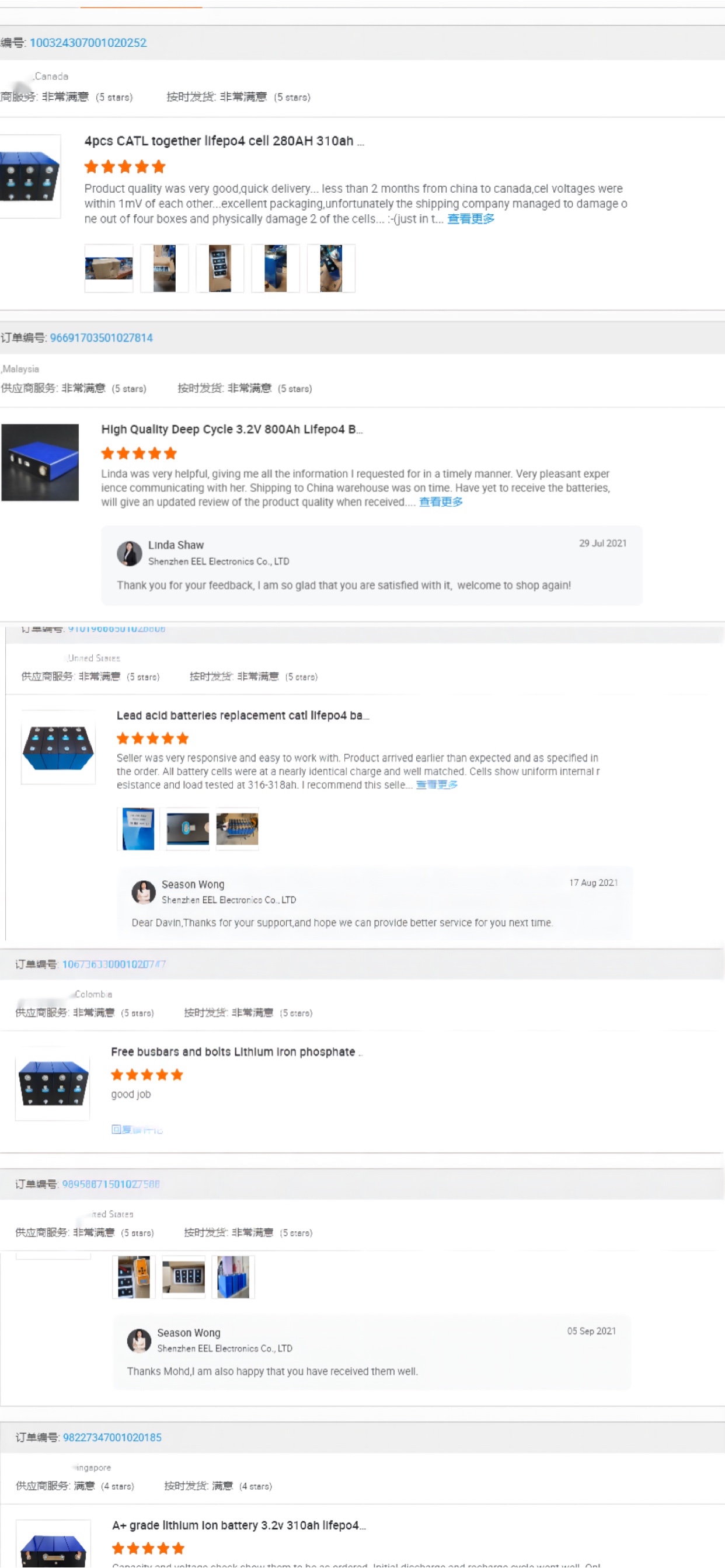

Customer Feedback 1

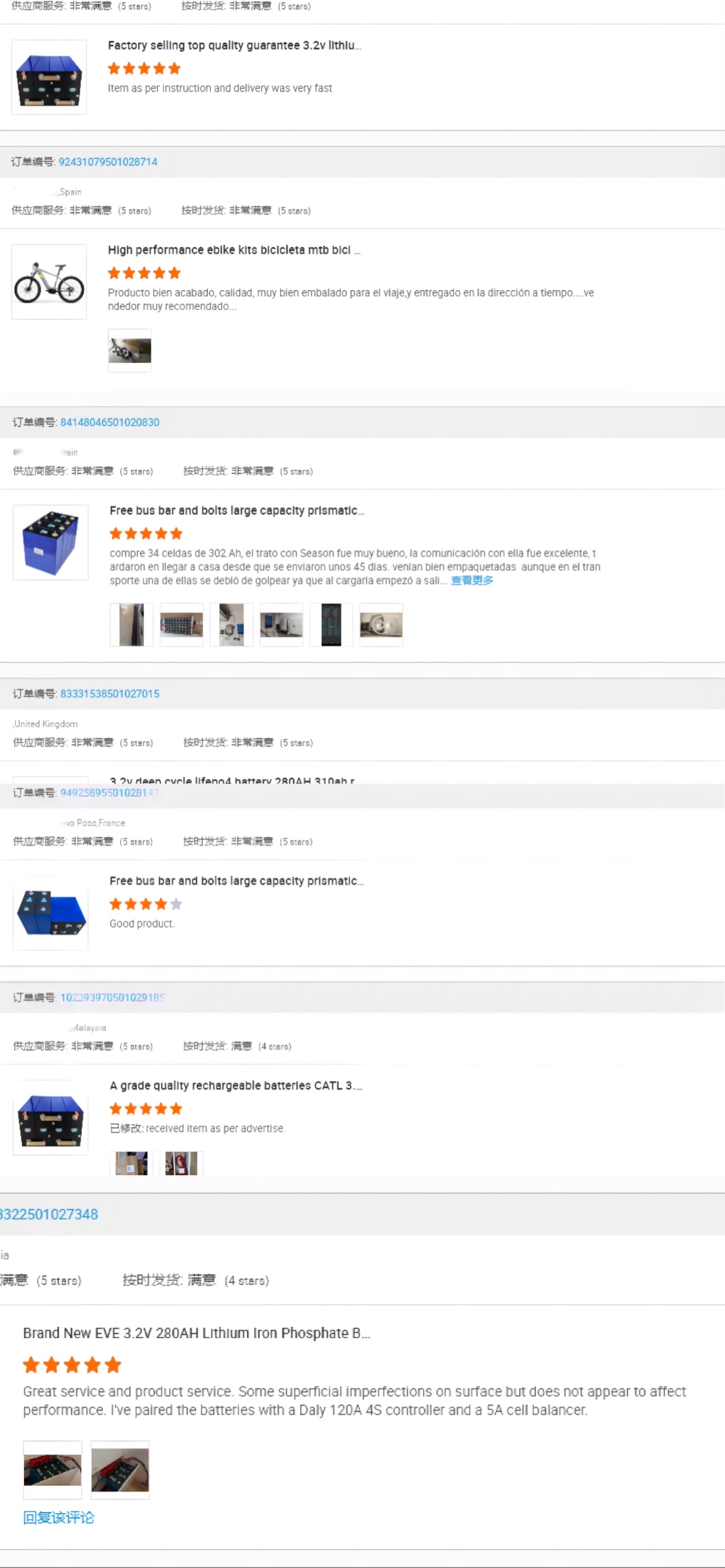

Customer Feedback 2
Product Recommendation

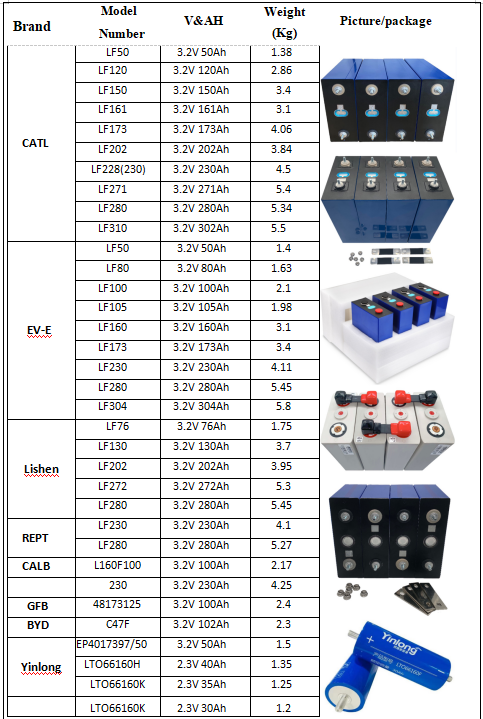

Recommended Products
FAQ

What is your MOQ?

There is no MOQ, and we also support a sample service.

How about the payment terms?

T/T, Paypal, Wire Transfer, and Online Transfer are all acceptable.

Does the battery come with studs and bus bars?

Yes, our batteries are supplied with laser-welded studs as well as free bus bars.

Is the consistency of the cells I buy the same?

We will equalize the cells and test them for voltage, internal resistance, and capacity before delivery as a way to ensure consistency.

What should I do when I receive the batteries?

Due to the long shipping timeframe, the battery's power will be reduced during transit. We recommend that buyers perform a complete charge and discharge test on the batteries after receiving them and then leave them for a week before starting assembly, which is beneficial to the cycle life of the batteries.

Why has my logistics information not been updated?

The goods will be shipped by UPS or a local shipping company. However, due to the cross-border customs clearance process, the logistics information will not update immediately until the shipment arrives in your country. Once the local carrier scans the package, the tracking details will update accordingly.
