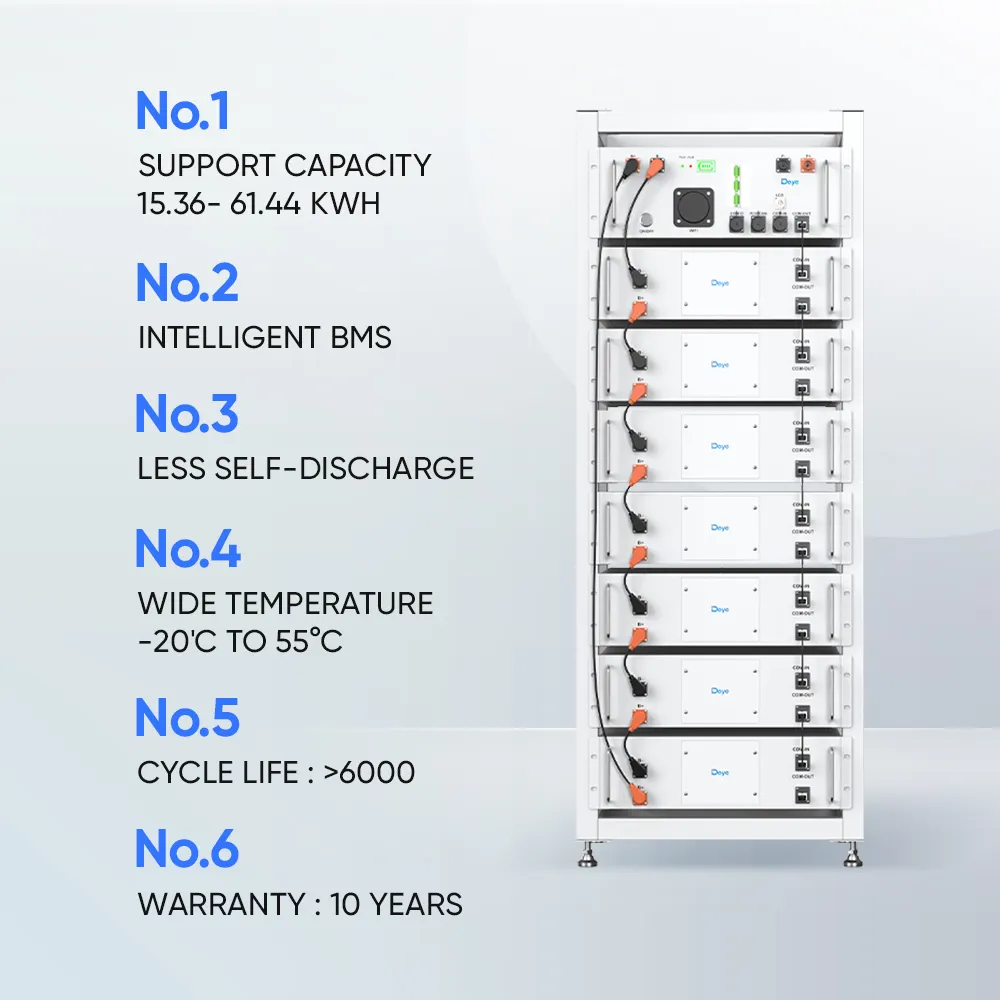

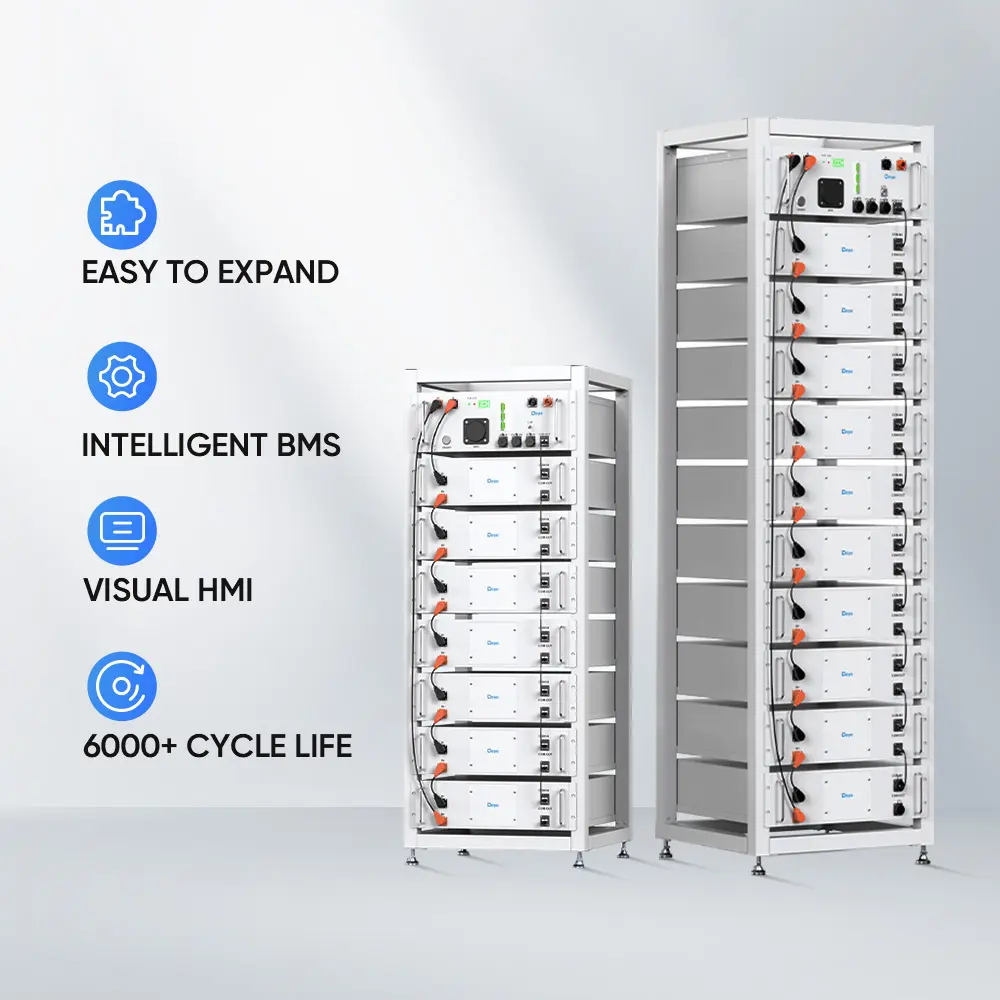

| Parameter | Specifications | ||||||||
|---|---|---|---|---|---|---|---|---|---|

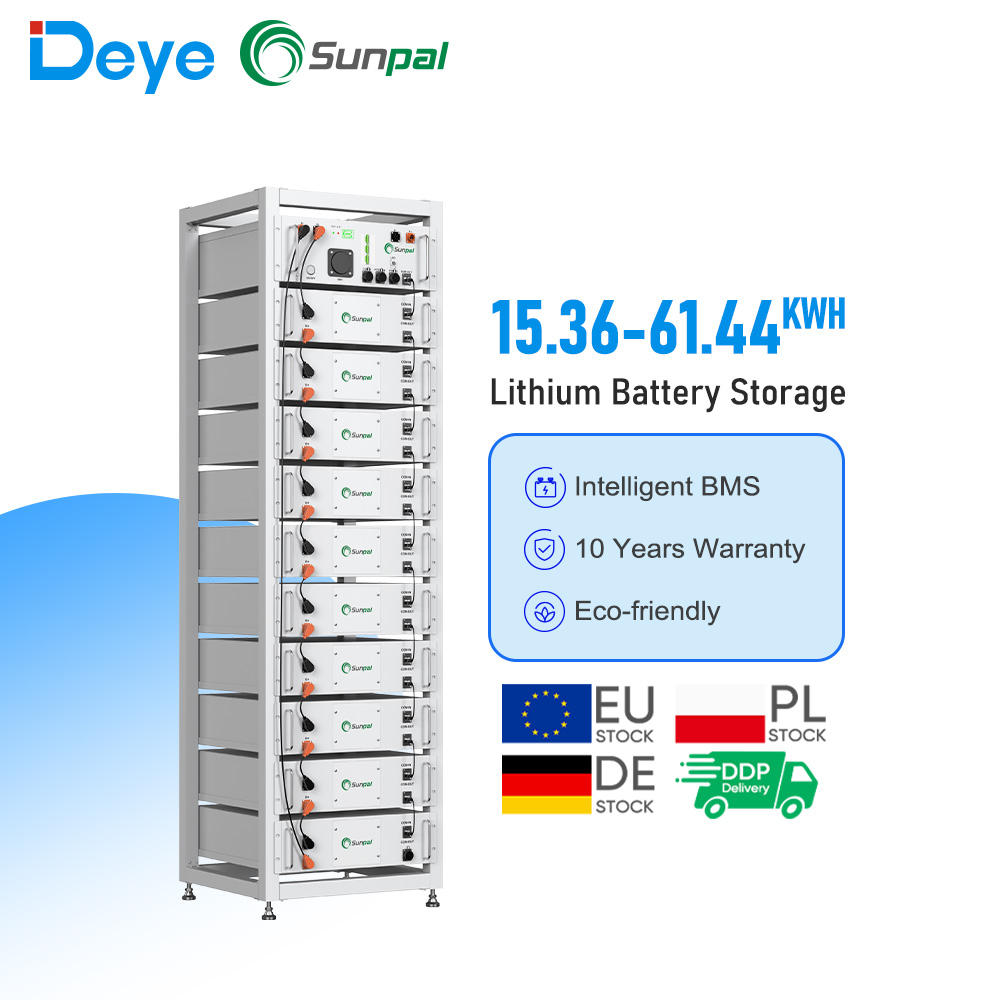

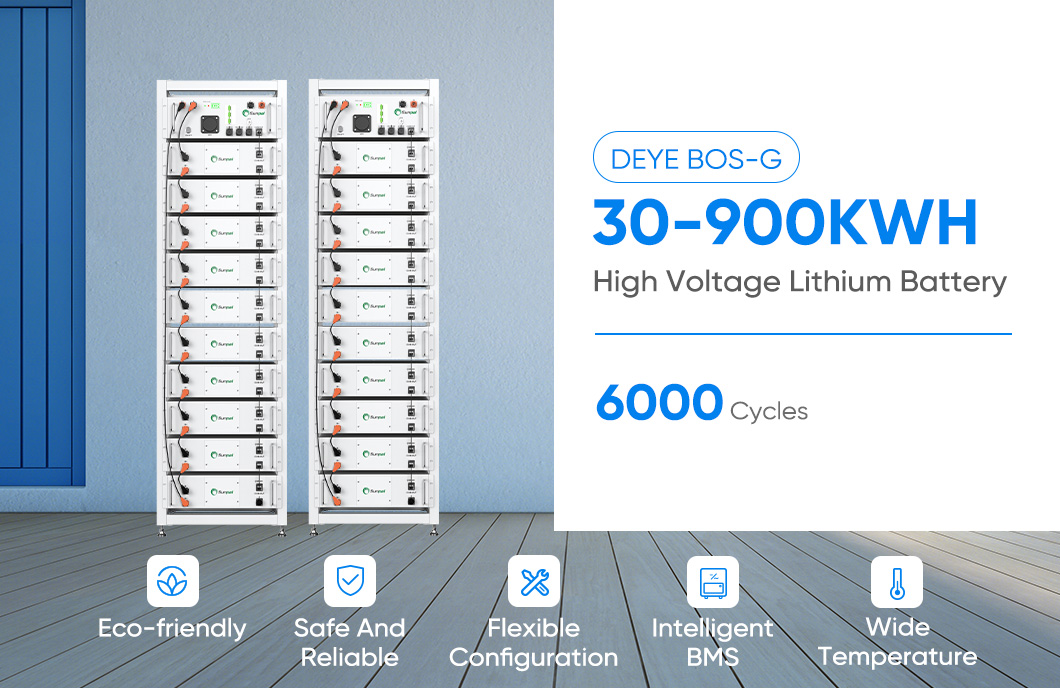

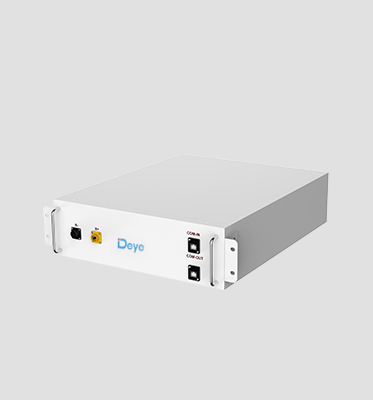

| Model | BOS-GX(X=3,4,5,6,7,8,9,10,11,12) | ||||||||
| Battery Chemistry | LiFePO4 | ||||||||
| Module Energy (kWh) | 5.12 | ||||||||
| Module Nominal Voltage (V) | 51.2 | ||||||||
| Module Capacity (Ah) | 100 | ||||||||
| Battery System Model | BOS-G15 | BOS-G25 | BOS-G30 | BOS-G35 | BOS-G40 | BOS-G45 | BOS-G50 | BOS-G55 | BOS-G60 |
| Module Qty In Series (Optional) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| System Nominal Voltage (V) | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 |
| System Energy (kWh) | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 | 46.08 | 51.2 | 56.32 | 61.44 |
| System Usable Energy (kWh) | 18.43 | 23.04 | 27.64 | 32.25 | 36.86 | 41.47 | 46.08 | 50.68 | 55.29 |
| Working Temperature(°C) | Charge: 0~55 / Discharge: -20~55 | ||||||||
| Altitude | ≤2000m | ||||||||
| IP Rating of Enclosure | IP20 | ||||||||

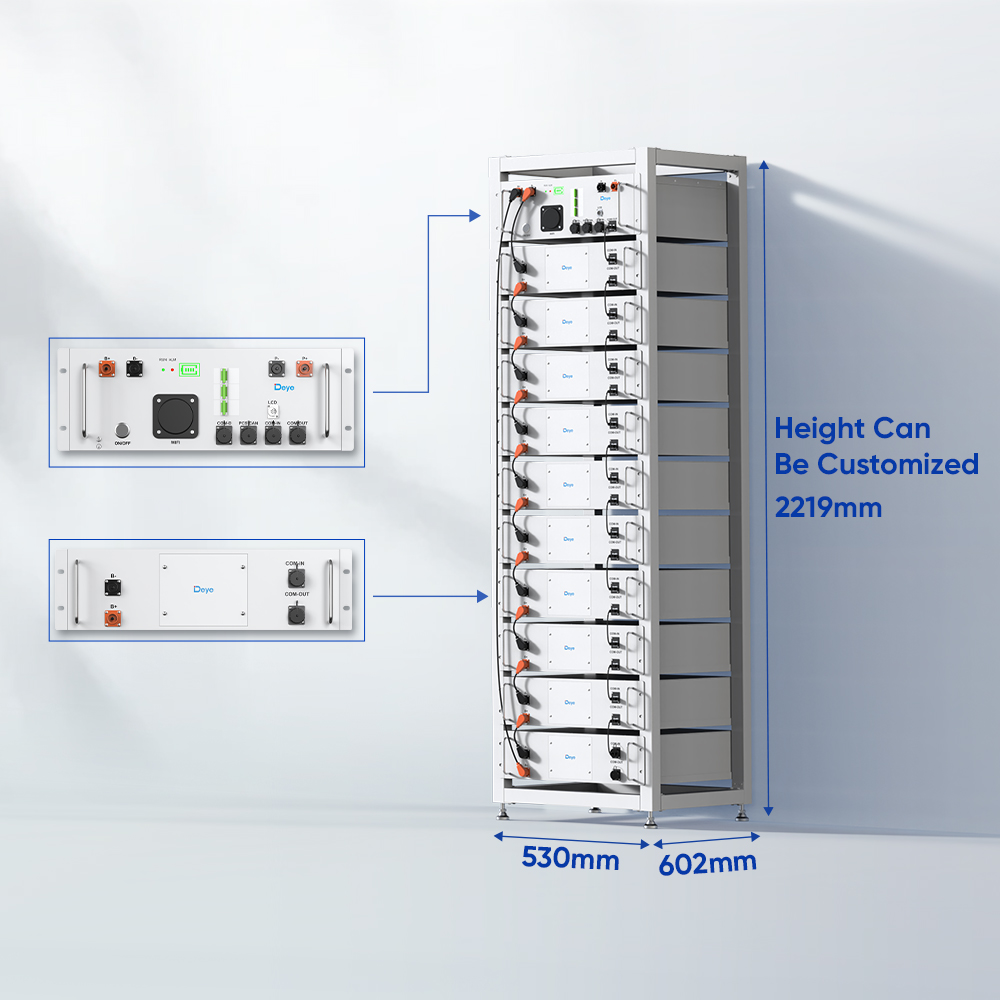

| Dimension (W/D/H, mm) | 530*602*1629 | 530*602*2219 | |||||||
| Weight (kg) | 420 | 610 | |||||||
| Cycle Life | 25±2°C, 0.5C/0.5C, EOL70% ≥ 6000 | ||||||||

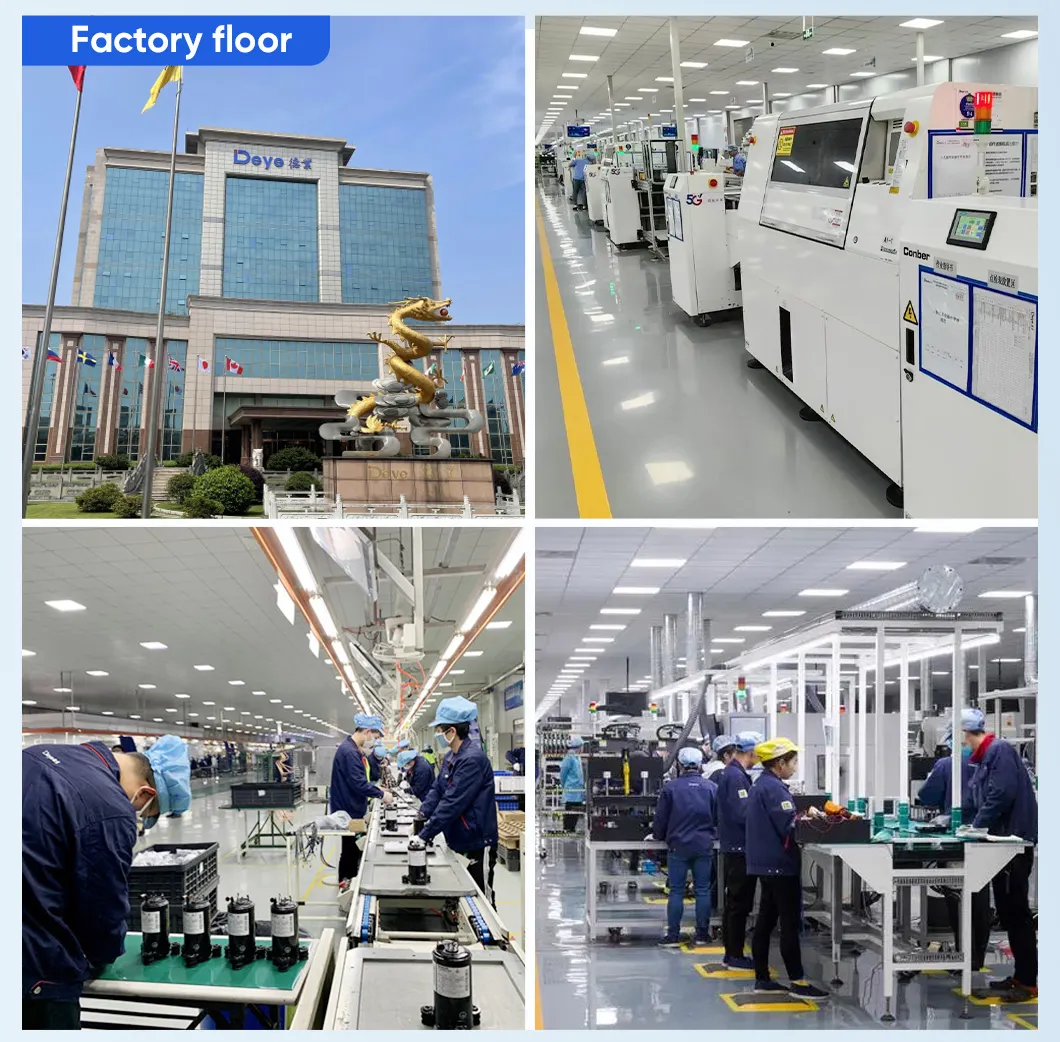

We are a professional battery manufacturer since 2002, manufacturing and selling environmentally friendly Sealed Lead Acid (SLA) and Lithium batteries. We introduce and develop advanced technology, and adopt the world's most advanced production equipment and testing measures to ensure long product life, high energy density, and environmental protection features such as cadmium-free, leading the domestic counterparts.
Our company is a high-tech enterprise with multiple manufacturing bases. It has approximately 2,000 employees, including two professors who have experience over 40 years in batteries research, and over 50 research engineers.
We have also invested strongly in domestic and foreign institutions and scientific research institutions to overcome difficulties in battery technology. The performance of the batteries independently researched and developed by us has met and exceeded international standards, and a variety of technologies have been granted national and international patents.
