| PERFORMANCE SPECIFICATIONS | ||
|---|---|---|

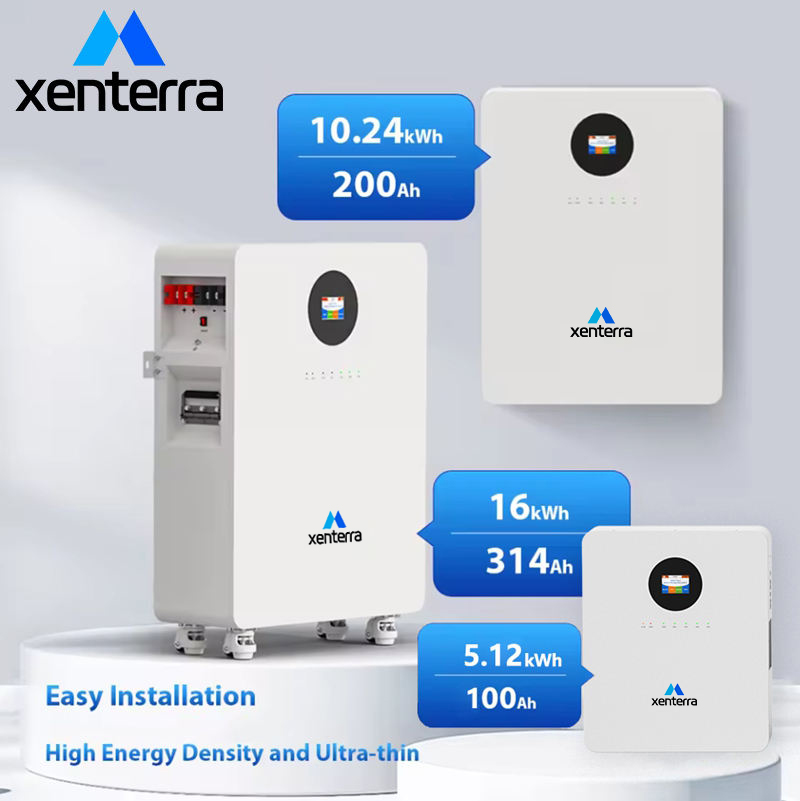

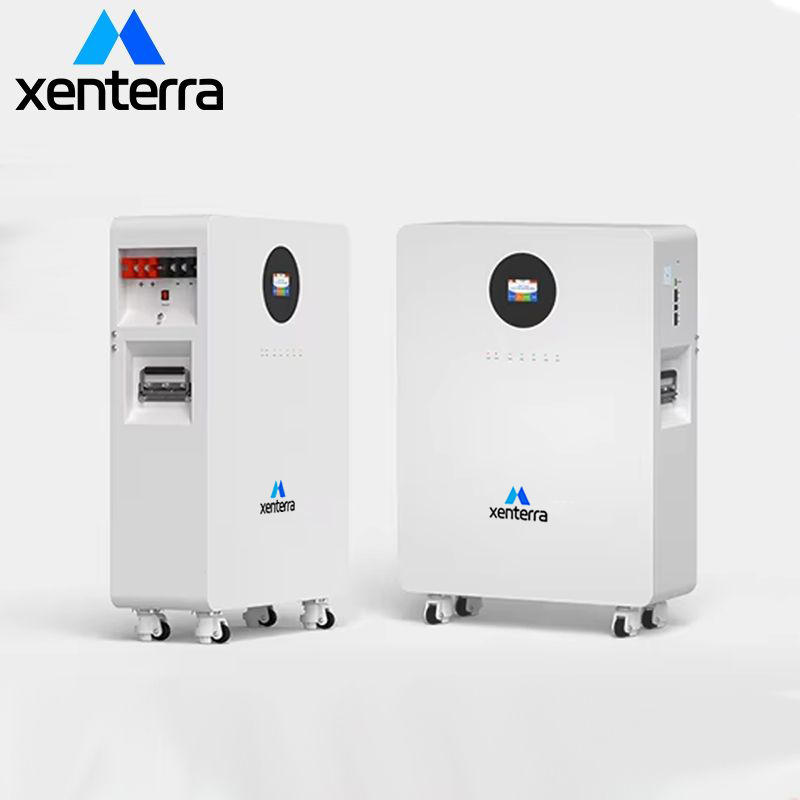

| Model | ME-GLE-BW10K (TR6000WX) | ME-GLE-B16K (TR8500WX) |
| Rating Voltage | 51.2V | 51.2V |
| Cell model/Configuration | 3.2V100Ah/16S2P | 3.2V314Ah/16S1P |
| Rating Capacity | 200Ah | 314Ah |
| Rated Energy(kWh) | 10.24kWh | 16.07kWh |
| Max.Charge/Discharge Current(A) | 200A | 200A |
| Voltage Range(Vdc) | 44.8V~58.4V | |
| Scalability | Up to 15 parallel | |
| Communication | CAN/RS485/RS232/BT /WIFI | |
| Cycle Life | ≥8000 times 80% DOD | |
| Design Life | ≥15Years(25°C) | |
| display usage | LCD color touch display | |
| MECHANICAL SPECIFICATIONS | ||
| Weight(Net/Gross)(KG) | 99.5kg | 134kg |
| Dimension(W/D/H)(mm) | 850x650x167mm | 850x650x245mm |
| Installation Mode | Wall Mounted | |
| IP Grade | IP20/IP54 (optional) | |
| SECURITY AND CERTIFICATION | ||
| Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | |
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |
| Protection | Smart BMS,Breaker and Aerogel Fireproofing (optional) | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Operating Temperature(°C) | Charge 0℃~55℃; Discharge -20℃~60℃ | |
| Altitude(m) | ≤3000m | |
| Humidity | ≤95%(Non-condensing) | |
